HAUBEX – The automatic vise change from the tool magazine

simple. automatic. change.

什么是 HAUBEX？

HAUBEX 是一款灵活且经济高效的自动化解决方案，专为从 2 件起的小批量生产而设计。它通过将机床刀具库转变为自动化系统，实现便捷高效的生产自动化。 HAUBEX 的核心是一种夹持罩，该部件作为夹持装置和毛坯工件的承载系统，并存储于机床刀具库中。

HAUBEX 用于哪些场景？

HAUBEX 能够帮助企业轻松提升制造效率：通过充分利用生产间歇时间，为员工创造更多用于其他增值工作的时间窗口；同时，也可以延长机床运行时间，使机床在下班后继续进行无人化生产。

HAUBEX – The automatic vise change from the tool magazine

In joint cooperation, Erst Maschinenbau and LANG Technik present a patented system with which every machine tool can manufacture automatically without an additional feeding unit or robot - innovative. patented. unique.

Watch the HAUBEX video now

HAUBEX 核心优势

适用于几乎所有机床设备

覆盖整个生产流程的灵活应用

面向自动化入门用户的经济型解决方案

无需具备自动化及机器人系统相关知识

可轻松集成至现有生产环境

无需耗时安装，也不会造成机床停机

Convinced by the benefits of the HAUBEX automation system?
Then simply use the contact form to ask for your individual quote.

View products

如何使用 HAUBEX

In just a few steps you can turn
your tool magazine into an automation system

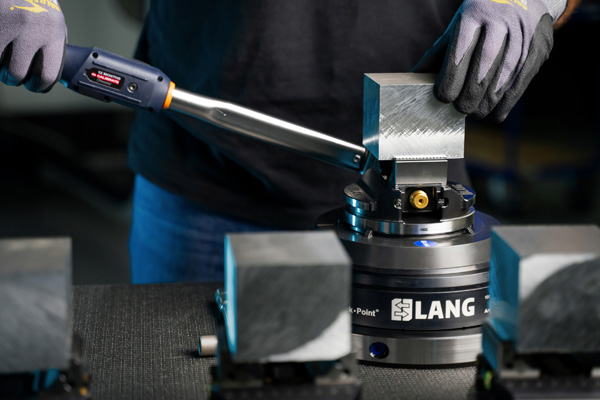

Workpiece blanks with dimensions of approx. 80 x 75 x 70 mm can be clamped in the HAUBEX Makro•Grip® 5-Axis Vise by form-fit. With a maximum tightening torque of 60 Nm, the 5-Axis Vise achieves holding forces of up to 14,000 N. Thanks to the defined form-fit between the pre-stamped workpiece and the jaw serration, the Makro•Grip® technology guarantees absolute process reliability and repeatability.

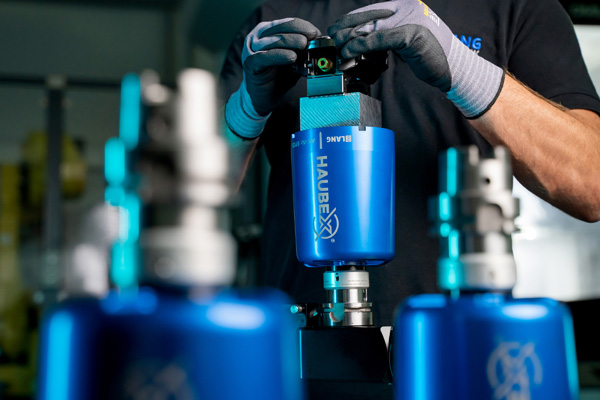

The workholding hood can be equipped in several ways. If the workholding hood is placed in a tool setting device, the 5-Axis Vise with the workpiece blank can be inserted overhead. Alternatively, the workholding hood can be slipped over the 5-Axis Vise at a set-up station, in each case by a 45° snap-in function.

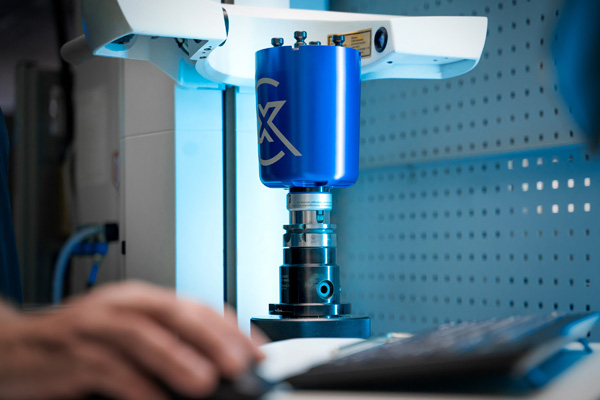

Measuring the z-height on the tool setting device and entering it in the program. Exemplary NC programs for setting up the automatic vise exchange can be downloaded from our website.

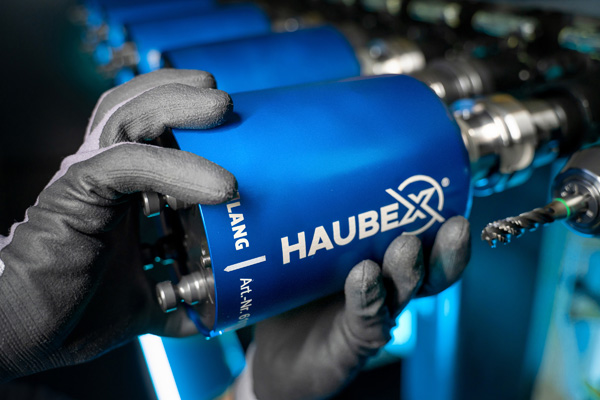

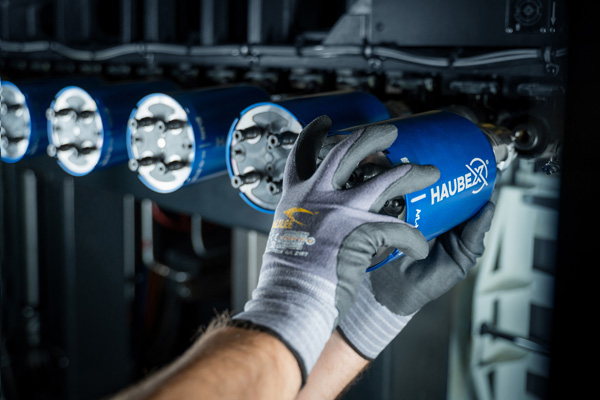

The workholding hood equipped with the clamping device and workpiece blank is placed in the tool magazine like a common tool by the operator. Alternatively, the vise and workpiece blank can be placed into the zero-point clamping system and picked up by the workholding hood already inserted in the tool magazine.

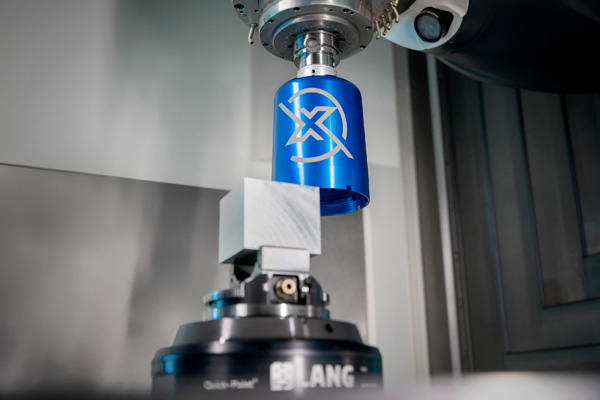

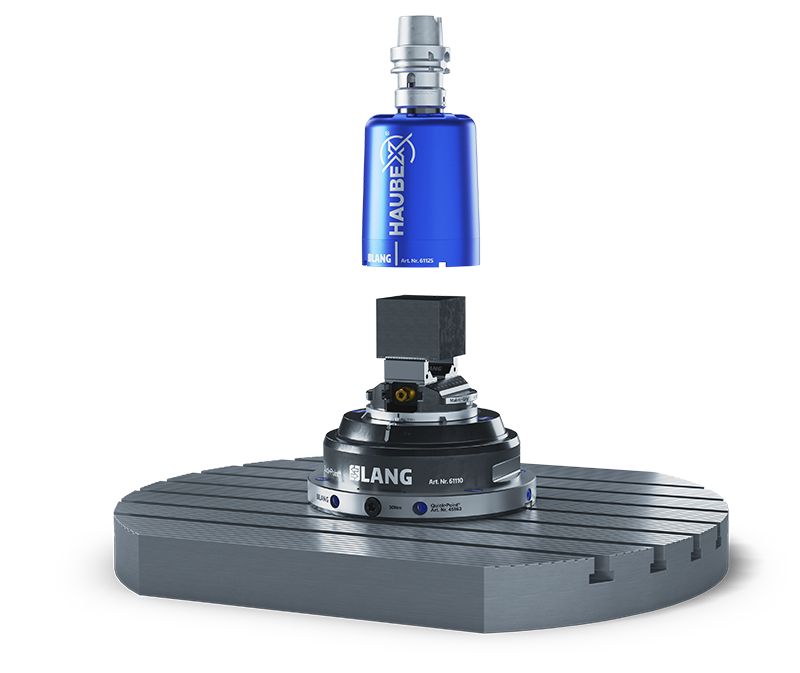

The workholding hood places the 5-Axis Vise into the zero-point clamping system and locks it by a 90° closing movement. Alternatively, the zero-point device can be actuated with a clamping lever during manual operation without HAUBEX.

After the machining process and prior to the automatic removal through the workholding hood, we recommend cleaning the machine interior and all relevant interfaces with the Clean•Tec chip fan.

Geschlossen

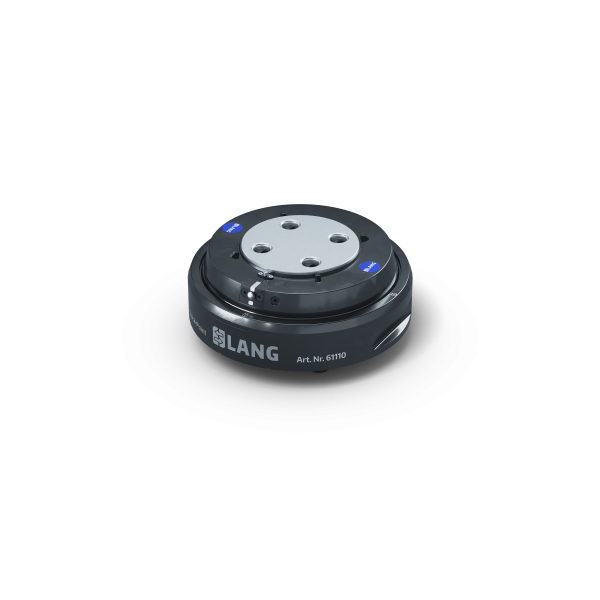

Quick•Point® HAUBEX
Zero-Point Clamping System

Item No.

61110

Dimensions

Ø 211 x 74 mm

Grid System

Lower Zero-Point Interface

Suitable Vise Size

Makro•Grip® 77

Weight

8,6 kg

Visit product page

Geschlossen

Makro•Grip® HAUBEX

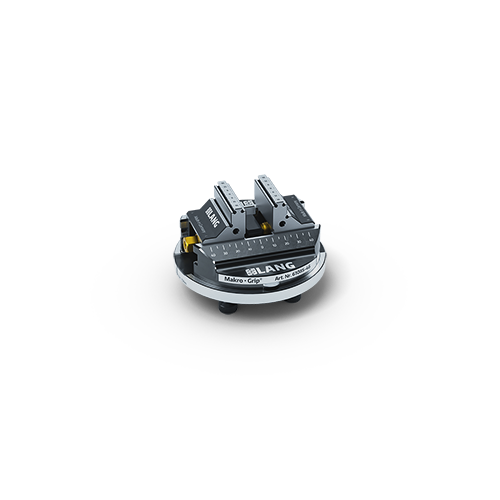

5-Axis Vise

Item No.

61085-46

Dimensions

Ø 120 x 65 mm

Jaw Width

46 mm

Clamping Range

0 - 80 mm

Max. Torque

60 Nm

Max. Holding Forces

14.000 N

Suitable Zero-Point System

Quick•Point® 52

Weight

2,6 kg

Visit product page

Geschlossen

HAUBEX

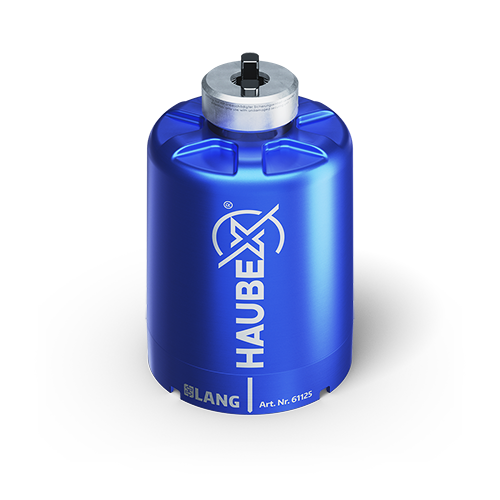

Workholding Hood

Item No.

61125

Dimensions

Ø 125 x 185 mm

Tapering

2°

Total Height

185 mm

Max. Workpiece Dimensions

approx. 80 x 75 x 70 mm

Weight

0,9 kg

Visit product page

HSK-A63 SK-40 BT-40 CAT 40

HAUBEX
Tool Holders

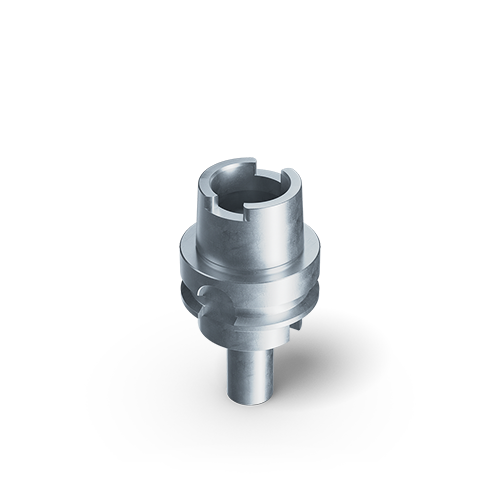

HSK-A63

Item No.

61500-HSK63

Type

Hollow taper shank

Standard

DIN 69893-1

Tool Length

≈ 247 mm

Weight

1,0 kg

Total Weight

4,5 kg

Visit product page

HAUBEX
Tool Holders

SK-40

Item No.

61500-SK40

Type

Steel taper

Standard

DIN ISO 7388-1

Tool Length

≈ 240 mm

Weight

1,1 kg

Total Weight

4,6 kg

Visit product page

HAUBEX
Tool Holders

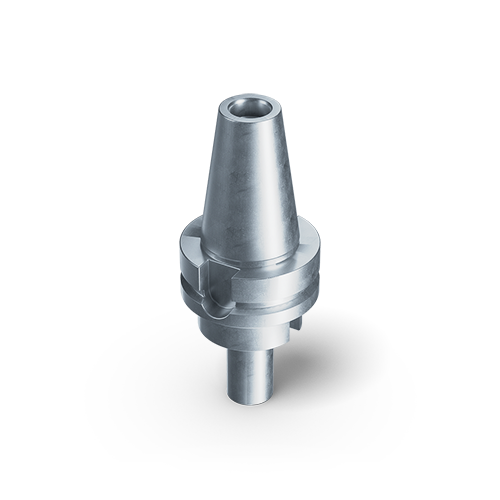

BT-40

Item No.

61500-BT40

Type

Steel taper

Standard

JIS B6339

Tool Length

≈ 250 mm

Weight

1,3 kg

Total Weight

4,8 kg

Visit product page

HAUBEX
Tool Holders

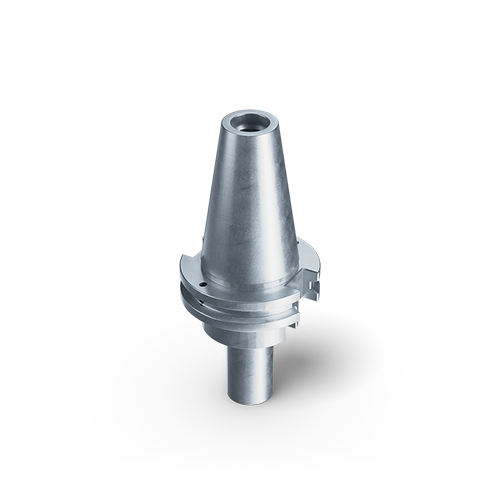

CAT 40

Item No.

61500-CAT40

Type

Steep taper

Standard

ANSI / ASME B5.50 AD/B

Tool Length

≈ 240 mm

Weight

1,1 kg

Total Weight

4,6 kg

Visit product page

1 4

The automation solution for everyone

Automated manufacturing without pallet changer or robot
Maximum flexibility in production planning
Increase the added value of any machine tool

HAUBEX provides all machining companies with a simple, flexible and inexpensive entry into the world of automation.

由于我们多年来一直对 LANG 工件夹持系统保持积极且稳定的使用体验，因此我们选择 HAUBEX，希望进一步提升生产过程中的灵活性。通过 HAUBEX，我们希望实现小批量产品的无人化生产，并将重复性较高的加工任务进行自动化。目前，在白天生产过程中，我们的五轴机床可连续运行最多 6 小时，期间操作人员可以处理其他工作任务。下班后，机床还可以继续运行另外 6 小时。此外，我们也将 HAUBEX 应用于一台使用率较低的三轴机床，使我们能够提前预制经常需要加工的零件，并以始终稳定的高质量完成生产，同时显著降低人员成本和设备运行成本。实际应用证明，HAUBEX 能够与我们现有的各种控制系统实现良好兼容。
