Quick•Point® 零点定位夹紧系统
高度灵活的零点定位夹紧系统，实现更短的换装时间与更高的加工精度
作为连接机床工作台与工件夹持装置的重要接口，Quick•Point® 凭借丰富的产品规格和灵活的配置方案，能够为几乎所有类型的机床提供高效的零点定位夹紧解决方案，有效缩短换装时间，最大限度减少设备停机时间。 系统提供圆形、矩形及方形等多种规格，可满足单工位或多工位夹紧需求，广泛适用于立式、卧式加工中心、三轴及五轴加工平台，以及第四轴转台和摇篮转台（Trunnion）等应用场景。
凭借50 余种零点定位解决方案及丰富的定制化选项，LANG Quick•Point® 零点定位夹紧系统展现出卓越的灵活性，可满足不同加工工况和生产需求。其出色的简单便捷和广泛的应用范围在行业内独具优势。得益于模块化设计，系统可根据生产需求随时扩展，在确保最高定位精度的同时，实现最短的换装时间。
Even simpler, even stronger

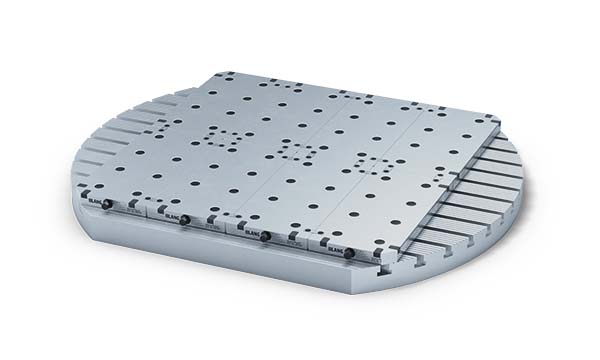

Quick•Point® modular plates

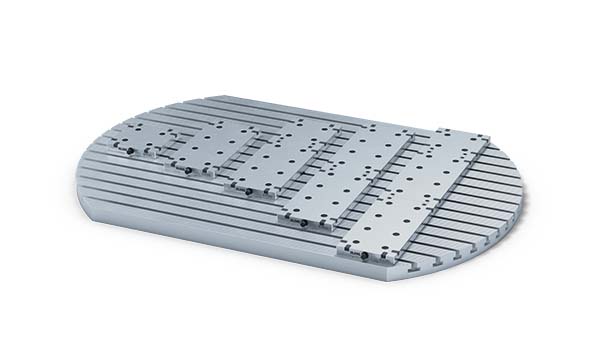

A new type of plate within the Quick•Point® system now makes zero-point clamping even easier. With the expandable modular plates, which can be flexibly adapted to any machine table, users operate up to five clamping units in succession mechanically with just one tightening screw. This is due to a new patented clamping mechanism within the modular plates, which ensures even higher pull-down forces and activates the complete zero-point set-up at the same time.
Quick•Point® modular plates -
The most important info briefly summarized:
- Mechanical clamping of several plates with only one tightening screw
- Single and double plate with 96 mm zero-point grid
- Combinable in y-direction up to 960 mm length (5 clamping units)
- Flexible adaptable to any machine table
- Pull-down forces of up to 8500 N
- No additional alignment of several plates to each other
The 2-in-1 solution

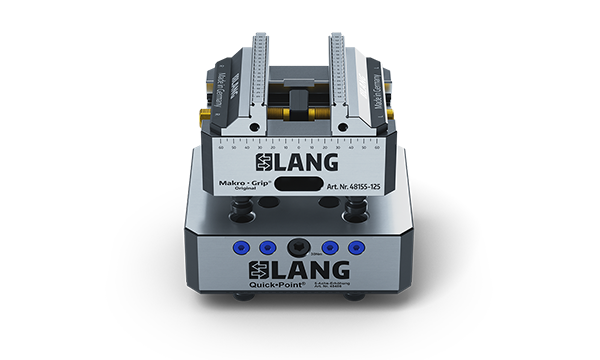

Quick•Point® Combo Plates
Greatest possible flexibility. High precision. Short set-up times. Attractive price. Quick•Point® combines all the features that make a zero-point clamping system special. The new Combi series with integrated 52 and 96 mm zero-point grid takes this to the next level. For the user, this means: An even greater flexibility in terms of clamping device selection. All vise sizes can now be clamped in the same platen without having to change over the zero-point system.
View product category
Applications
Modular, flexible and always a good fit

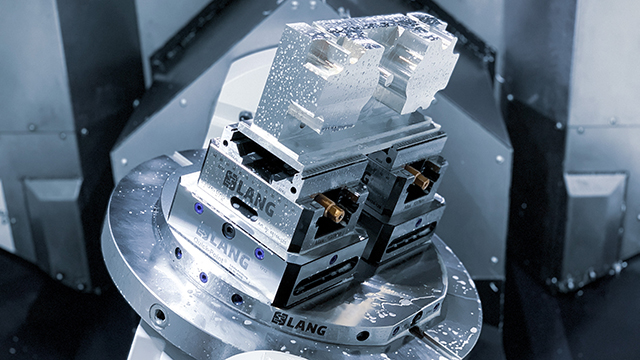

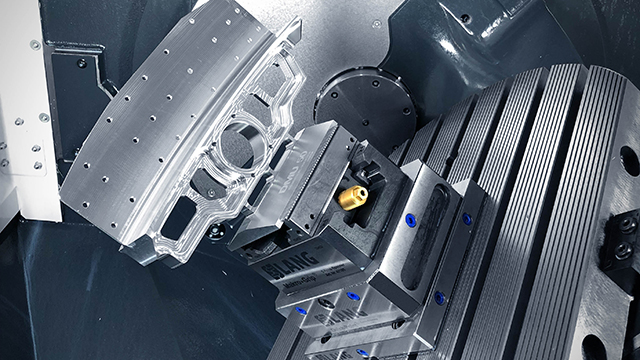

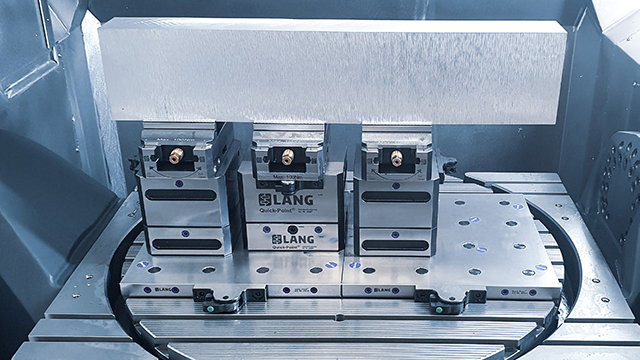

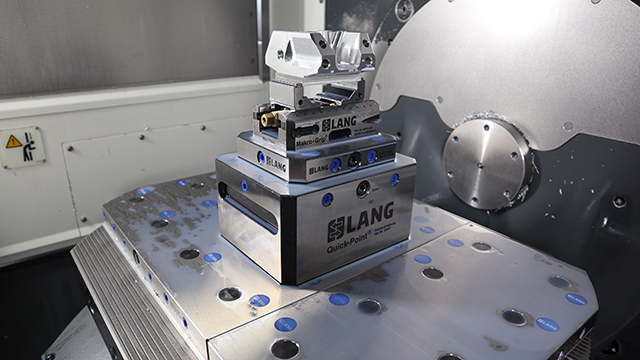

on machine tables

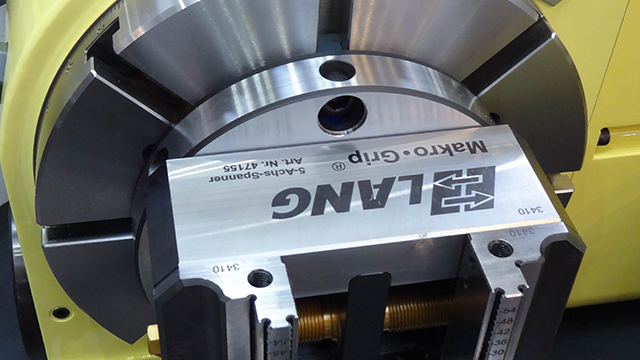

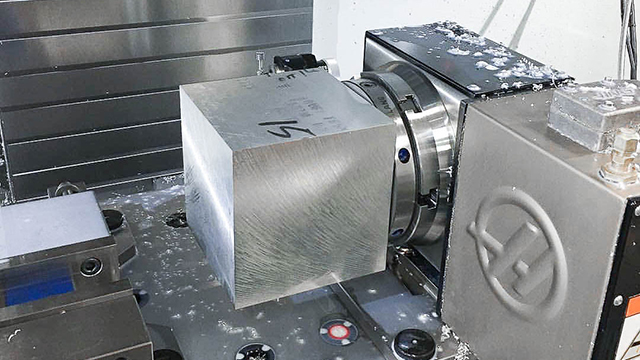

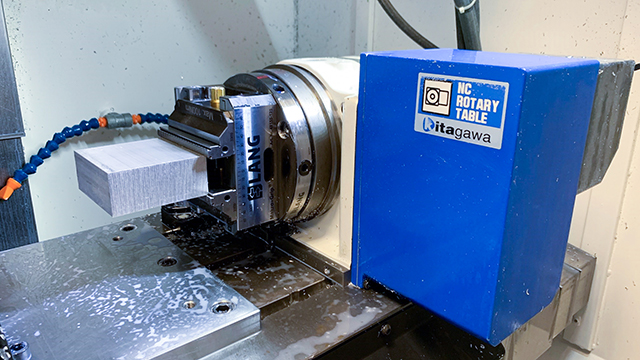

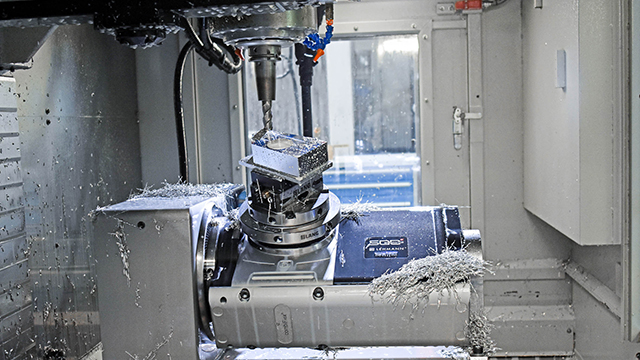

on 4th axis and trunnions

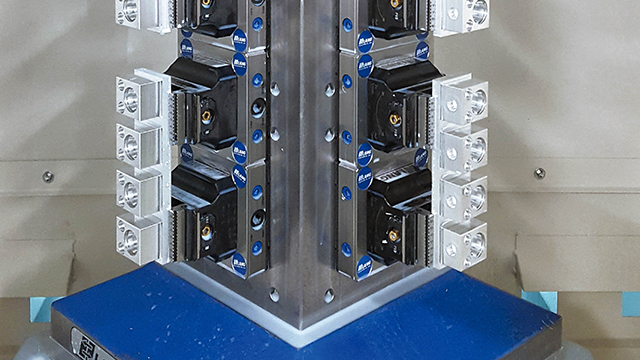

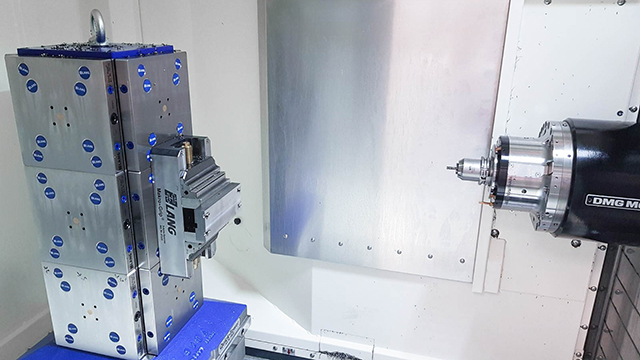

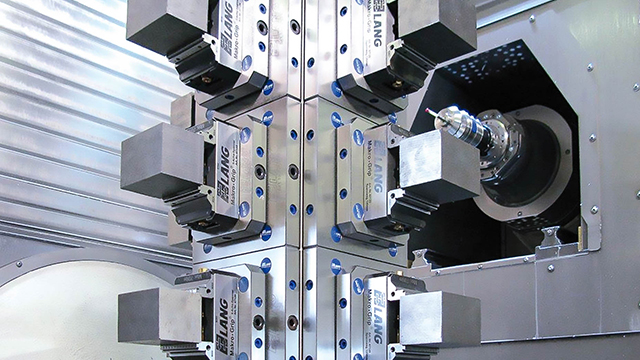

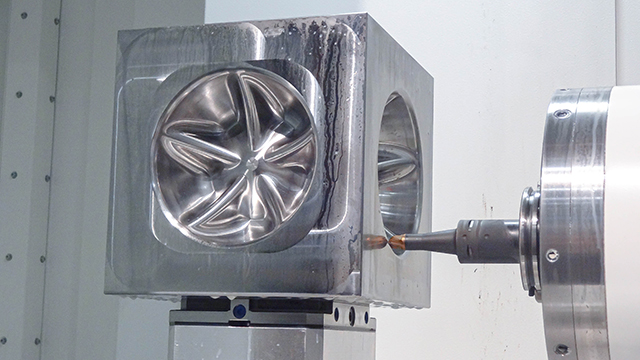

in horizontal machining centers

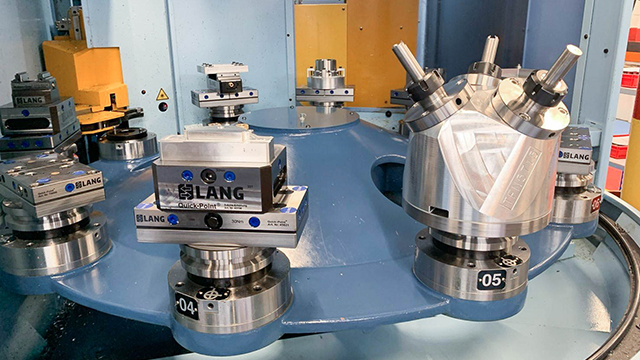

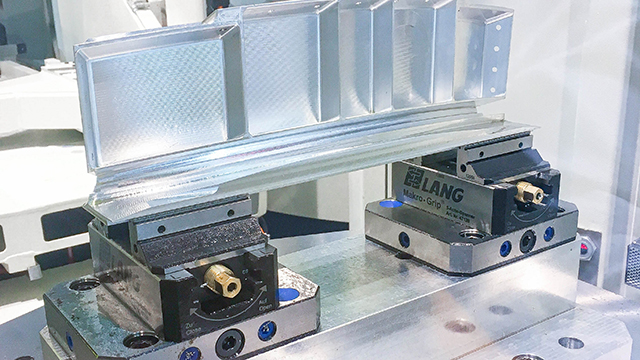

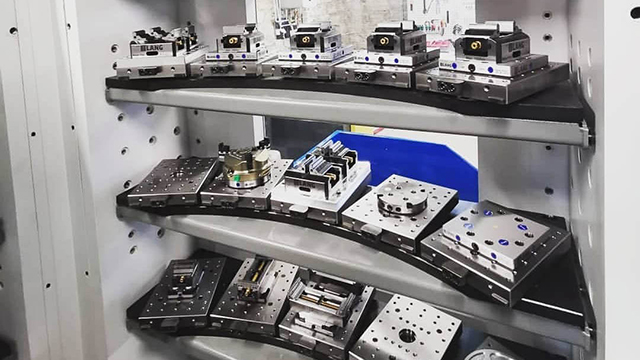

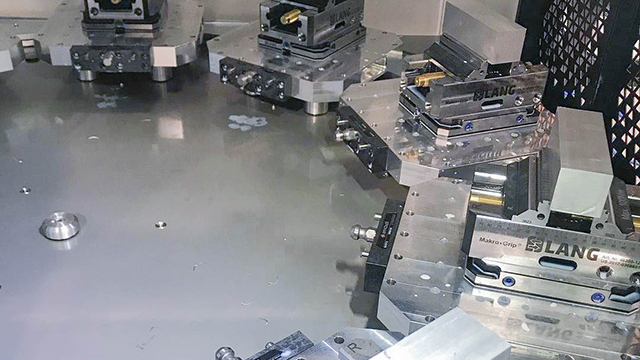

on pallet changers
Functions
Simple, robust and incredibly durable
Mounting on the machine table
Clamping mechanism
Mechanical actuation with tightening screw
Mechanical actuation with the Quick-Lock fastener
Automatic, pneumatic actuation
Benefits
Minimum setup time required
Direct clamping of workpieces
Wide range of customization options
Highly precise positioning
Maintenance-free and durable components
Automated, pneumatic actuation possible
Products
The two Quick•Point® grid dimensions 52 mm and 96 mm, to which many systems accompanying the market refer today, were established by LANG. The shape, size and application possibilities of the zero-point plates are so varied that almost any requirement on 3- or 5-axis tables or rotary tables can be covered.
Single plates

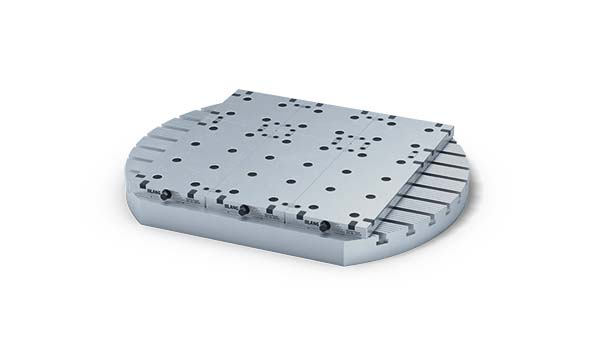

Multiple plates
Adaptor plates
Modular plates
Combo Plates
Tombstones
3-face pyramid
Twin base
Automation zero-point devices
5-Axis risers
Aluminium riser
Support plates
Accessories
