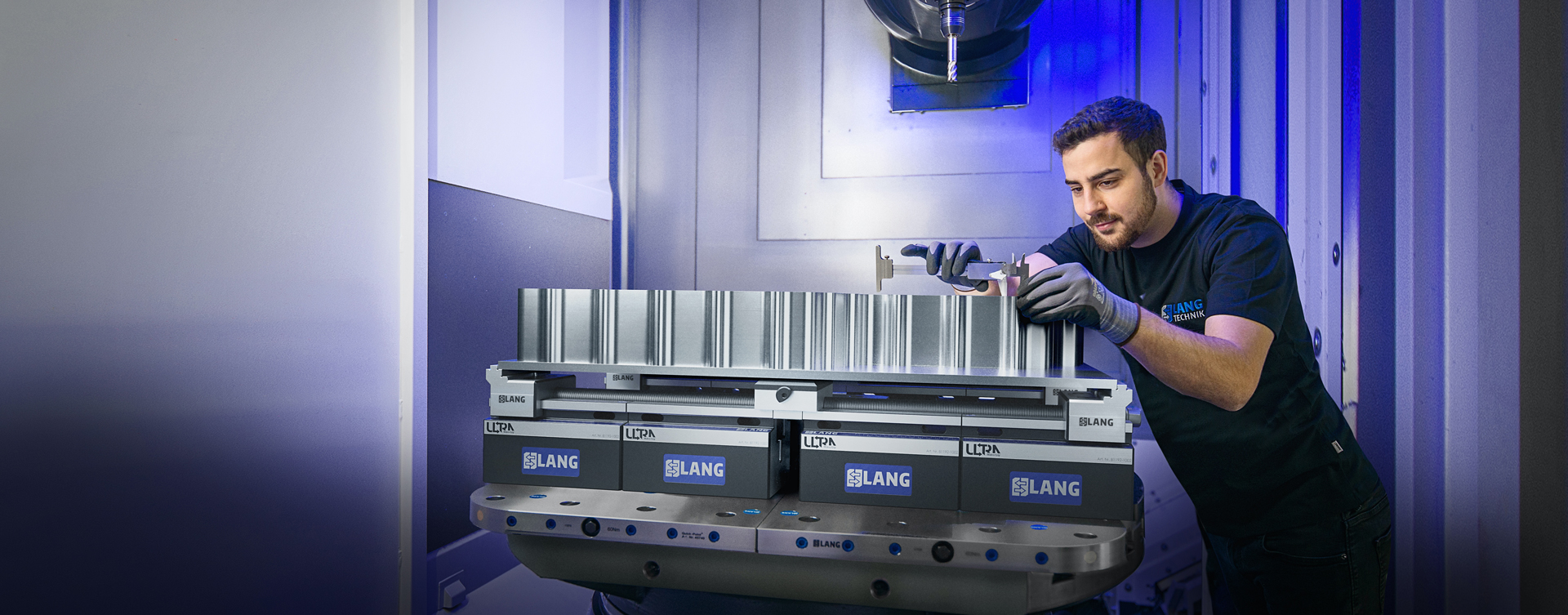

Clamping plates and large parts
with Makro•Grip® Ultra

simple. gripping. bigger.

工件夹持，迈入全新维度

The new modular workholding system for machining applications
of plates and large components.

专利申请中

全新产品系列 Makro•Grip® Ultra 提供多种夹持方式，同时支持快速、便捷的系统切换。凭借模块化结构带来的高度扩展能力，Makro•Grip® Ultra 可安全夹持长度达 810 mm 及以上的大型工件。

凭借超大尺寸设计，该系统将 LANG 工件夹持技术提升至全新高度。多种系统高度选择、可独立扩展的夹持范围、可更换式夹紧钳口类型，以及丰富实用的附件配置，使 Makro•Grip® Ultra 能够通过多样化组合方式，覆盖几乎所有可想象的夹持应用场景。

Watch the Makro•Grip® Ultra video now

The workholding system at a glance

Modularity

Range of applications

Centric clamping of components up to 810 mm

Makro•Grip® Ultra 的其他优势

数秒内完成夹持方案切换

低振动、低变形夹持薄型及板状材料

通过独立可调夹紧钳口，实现对非对称工件的可靠夹持

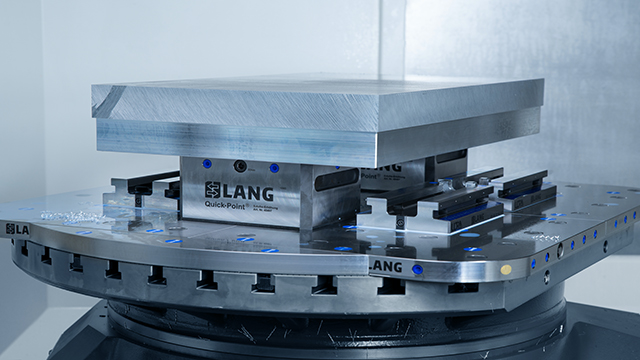

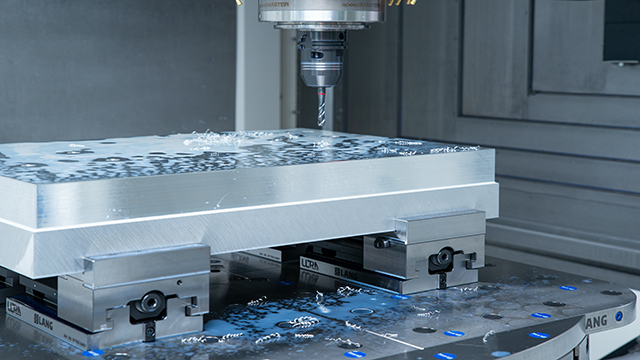

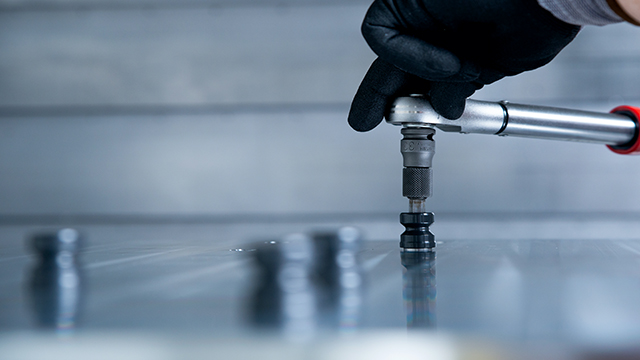

无需更换夹持系统，即可实现全方位加工

Integration of automated machining processes possible without removing the clamping system

组件数量少且易于拆卸，便于清洁与维护

The modularity and small number of components, as well as the consistent Quick•Point® 96 zero-point grid allow to change the clamping setup immediately.

By removing the threaded cap with a magnetic handle the clamping jaw position can be changed in a short timescale without actuating the spindle, independently from other clamping jaws. By that, even asymmetrical parts can be clamped.

The Makro•Grip® Ultra spindle is solely fitted between two high-precision centering plates which allows for a quick and comfortable setup process. Clamping jaws and spindles are removed easily which simplifies cleaning and maintenance after and in between machining processes.

The quick jaw adjustment which is made possible by threaded caps, allows quick changes between different jaw types.

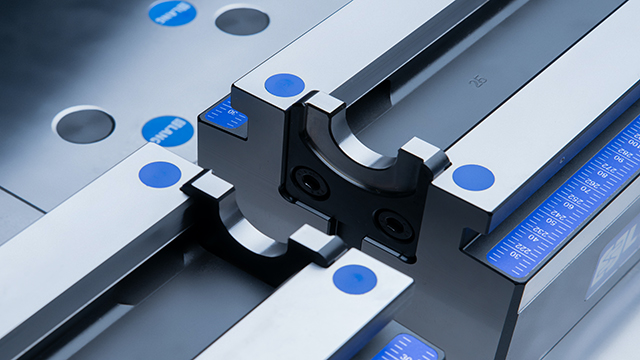

In order to offer an additional resting surface and to limit possible vibrations, a support jaw can be mounted to the center of the clamping system. Center jaws are available for clamping multiple parts. In this case centering plates are used which makes it possible to clamp workpieces with a 4 mm variance in length.

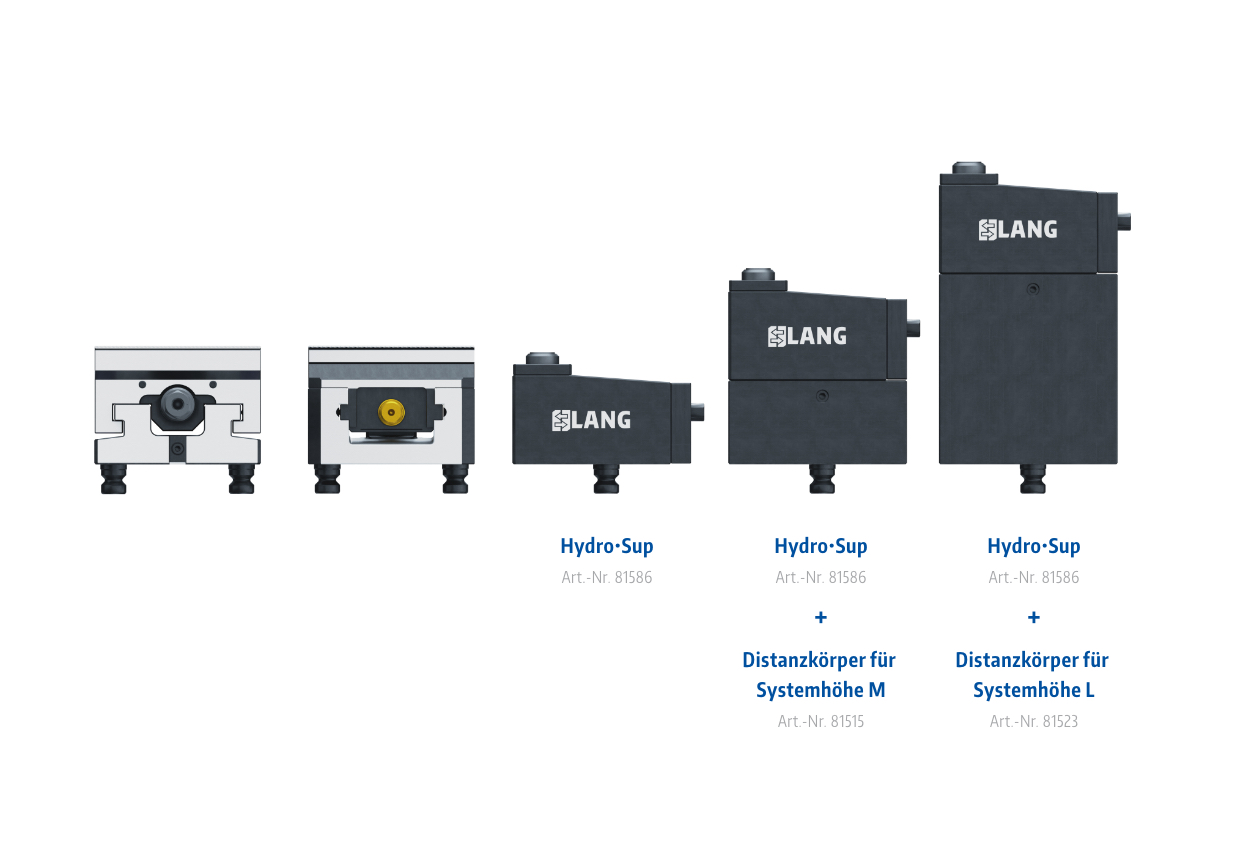

A specific hydraulic screw jack and spacers to match the respective height of the base bodies have a supporting effect on the clamping process which is particularly important with flat and wide material.

Thanks to the jaw variety the operator can choose between different approaches and configurations for the first and second operation depending on the requirements of the workpiece.

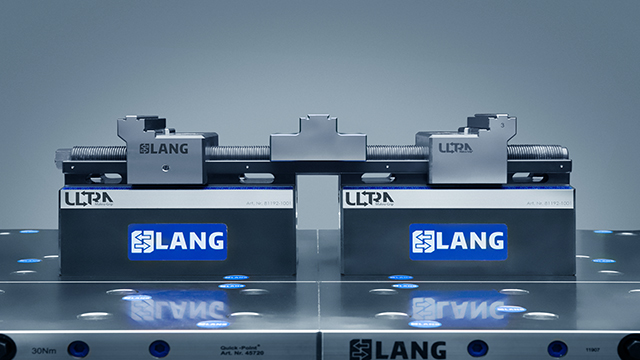

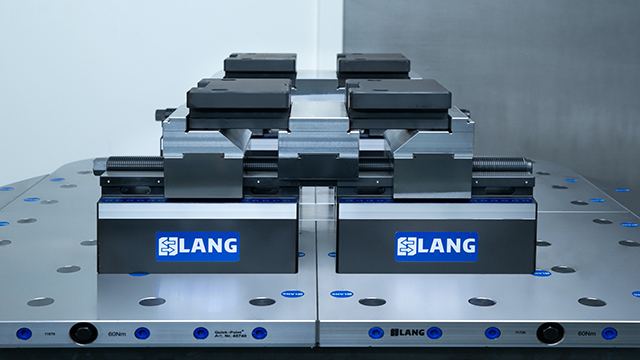

Center jaws can be mounted for clamping multiple parts simultaneously – both with serration or plain clamping surface.

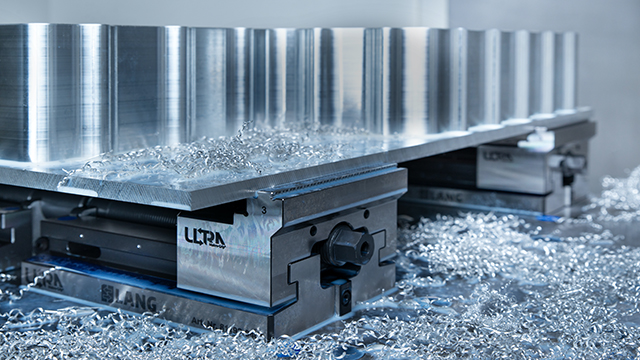

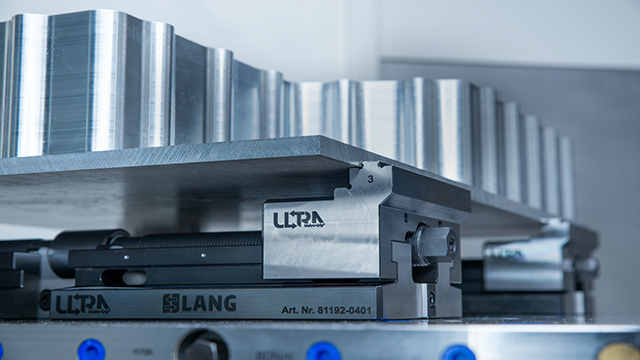

Each clamping jaw is individually secured by a threaded cap and thus can be moved indepentently from other clamping jaws. By that, asymmetrical and pre-machined profiles can be clamped.

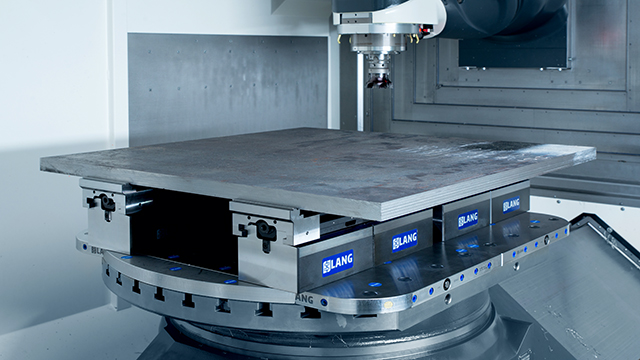

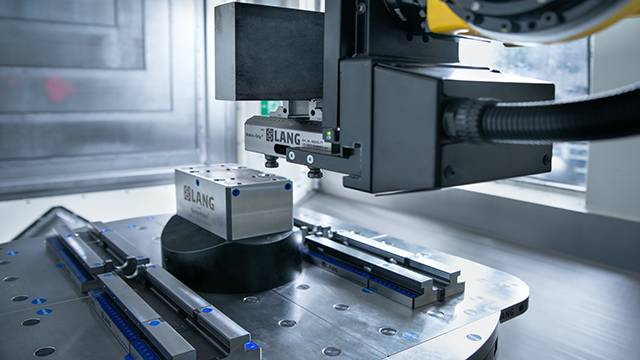

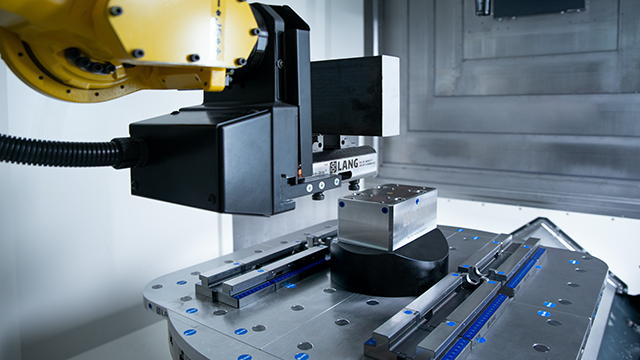

In a flexible, combined production (automated batch production of small parts by night, large parts manually during the day) an increased machine utilization can have a positive effect on unit costs.

Individuell kombinierbar

Erleben Sie, wie schnell und vielfältig sich Makro•Grip® Ultra kombinieren lässt.

Clamping of large parts

Clamping of asymmetrical parts

Clamping of multiple parts

Clamping of round parts

Clamping of plates and flat parts

Your connection is too slow to show the interactive 3D model. You are seeing the mobile version.

Clamping of large parts

Click and drag

This clamping situation consists of:

2x Base Set 410 L for a clamping range up to 410 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

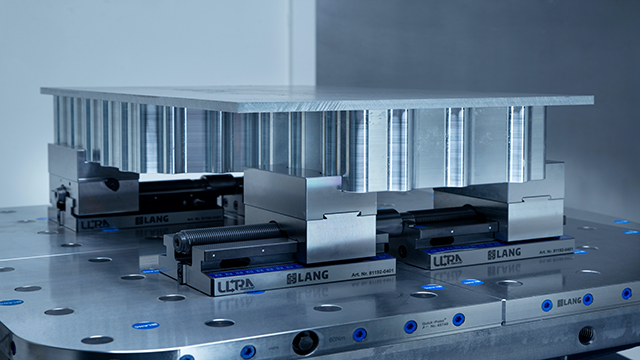

Clamping of asymmetrical parts

Click and drag

This clamping situation consists of:

2x Base Set 610 M for a clamping range up to 610 mm
Avanti 125 base jaws and top jaws with plain clamping surface
Unequal jaw positioning
Avanti center base jaw with support jaw

Clamping of multiple parts

Click and drag

This clamping situation consists of:

2x Base Set 610 M for a clamping range up to 610 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
Serrated Makro•Grip® Ultra 125 center jaws for clamping multiple parts

Clamping of round parts

Click and drag

This clamping situation consists of:

1x Base Set 410 S for a clamping range up to 410 mm
Base jaws with Avanti 125 top jaws
2x Hydro•Sup screw jack

Clamping of plates and flat parts

Click and drag

This clamping situation consists of:

2x Base Set 810 M for a clamping range up to 810 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

Experience with one click, how easily and quick clamping applications can be changed with Makro•Grip® Ultra.

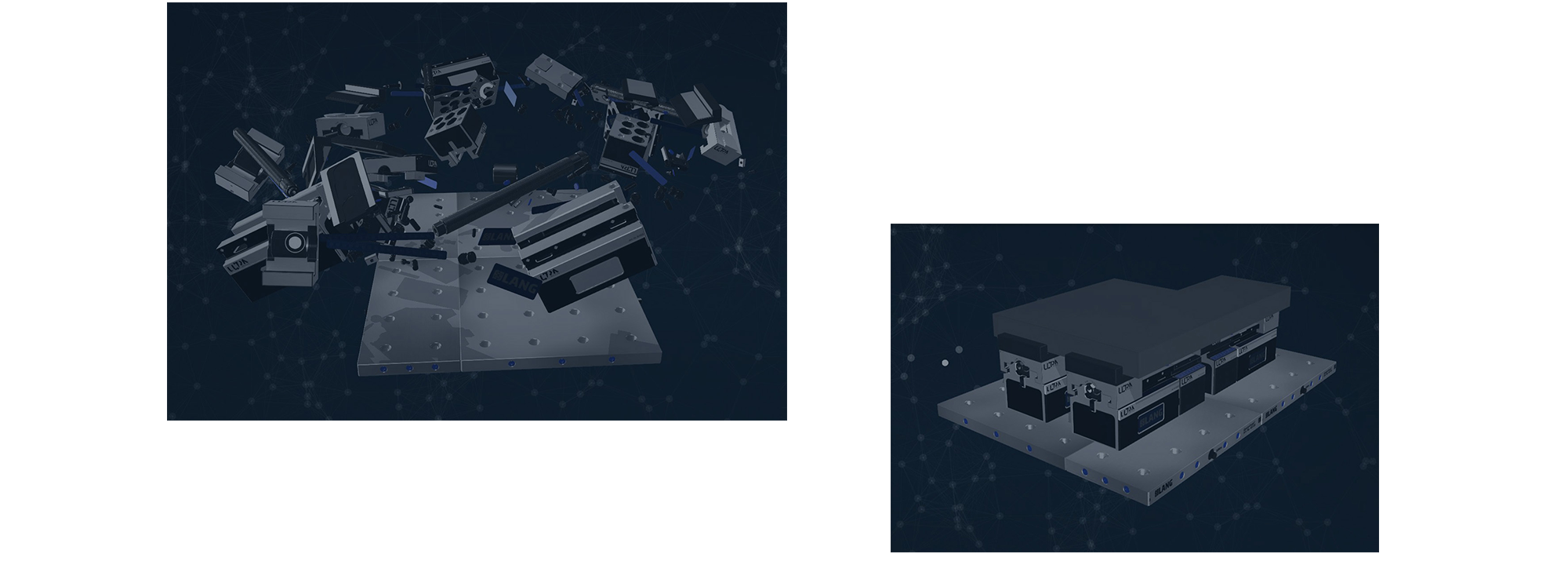

Interactive 3D model of the Makro•Grip® Ultra clamping system

Rotate 3D model by moving pressed mouse button

Click and hold pulsing buttons to show different applications

Just one moment please. The 3D model of the Makro•Grip® Ultra is loading ...

Part: 400 x 400 x 250 mm

Selected configuration:

2x Base Set 410 L for a clamping range up to 410 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

Part: 600 x 400 mm (asymmetrical)

Selected configuration:

2x Base Set 610 M for a clamping range up to 610 mm
Avanti 125 base jaws and top jaws with plain clamping surface
Unequal jaw positioning
Avanti center base jaw with support jaw

4 Parts: 180 x 130 x 100 mm

Selected configuration:

2x Base Set 610 M for a clamping range up to 610 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
Serrated Makro•Grip® Ultra 125 center jaws for clamping multiple parts

Part: Ø 400 mm

Selected configuration:

1x Base Set 410 S for a clamping range up to 410 mm
Base jaws with Avanti 125 top jaws
2x Hydro•Sup screw jack

Part: 800 x 600 mm

Selected configuration:

2x Base Set 810 M for a clamping range up to 810 mm
Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

Click and drag

Individual components

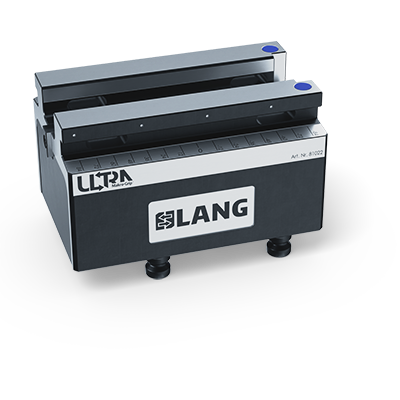

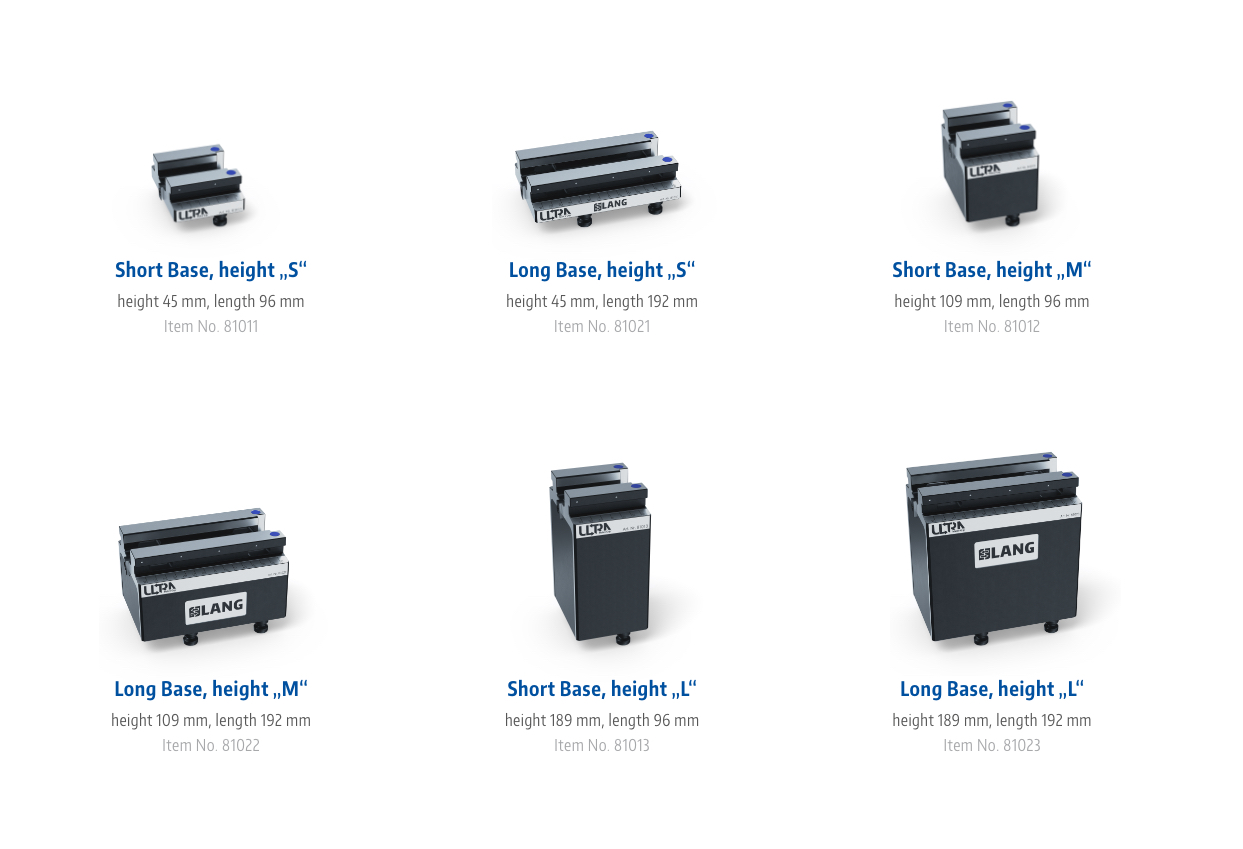

Individual base body

To product category

Clamping jaws

To product category

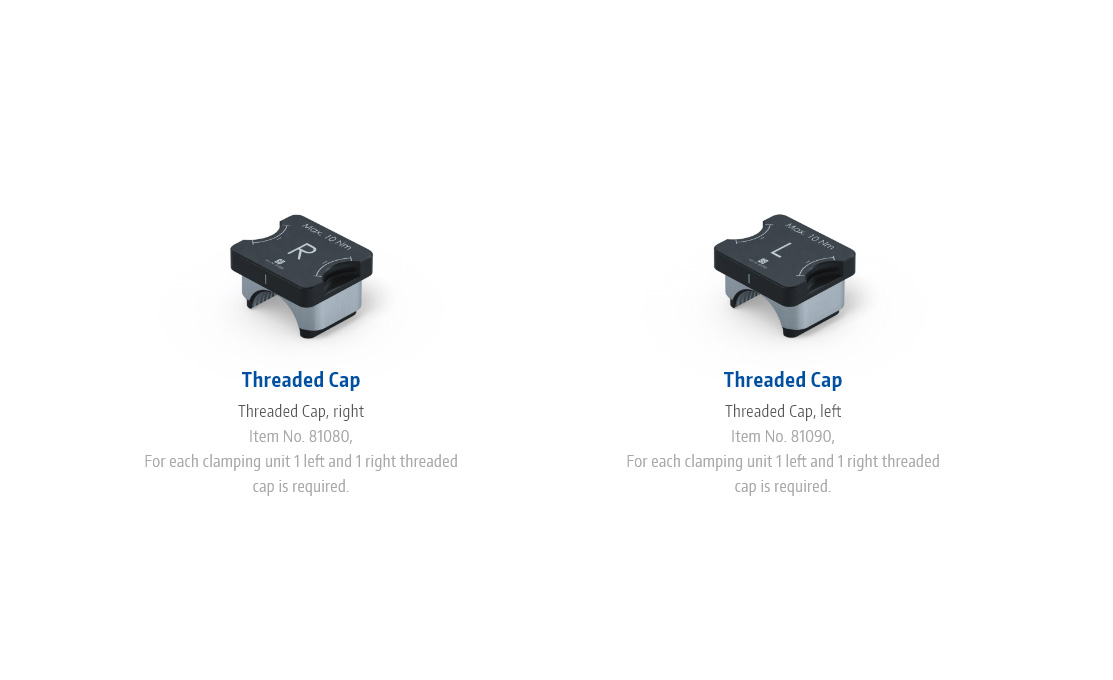

Threaded cap

To product category

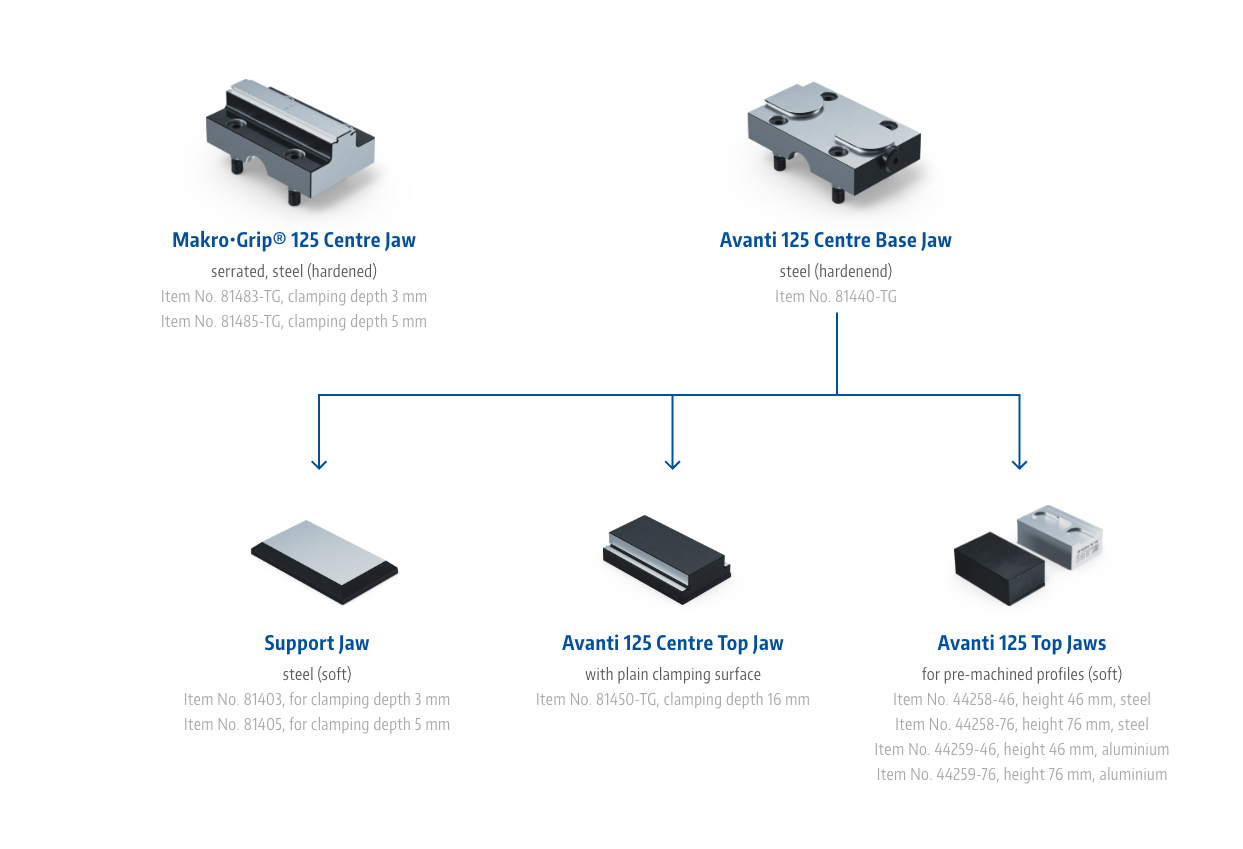

Center jaws

To product category

Hydraulic screw jack

To product category

Mechanical screw jack

To product

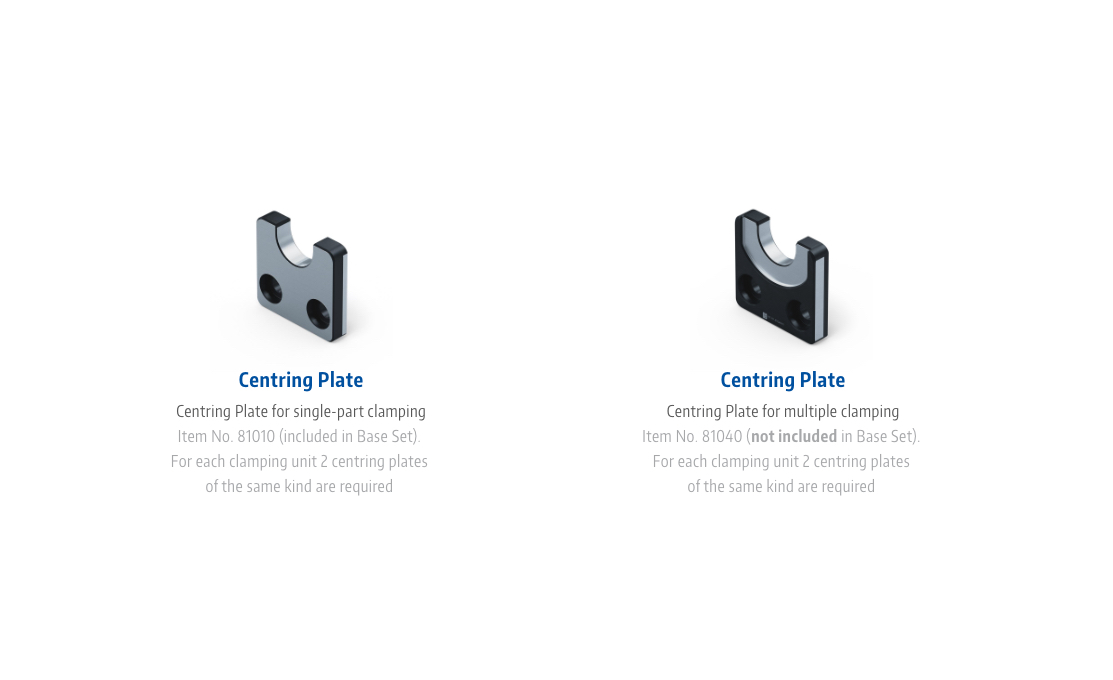

Centering Plate

To product category

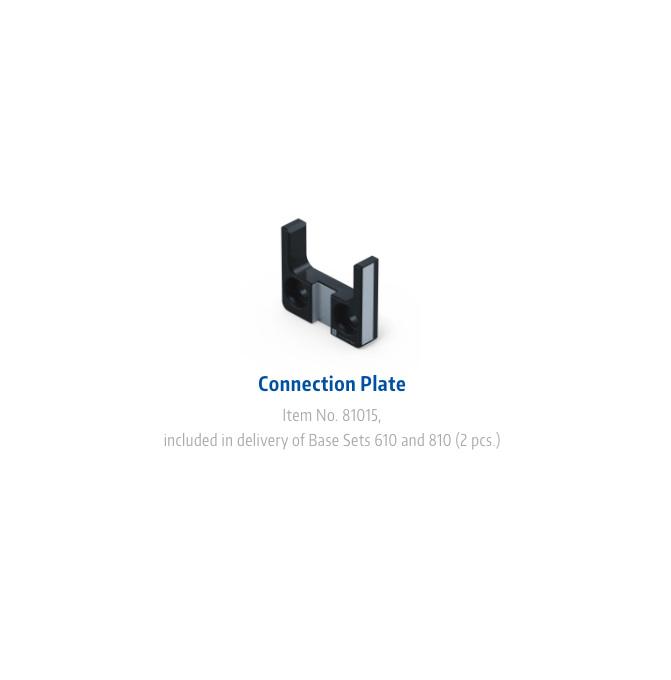

Connection Plate

To product category

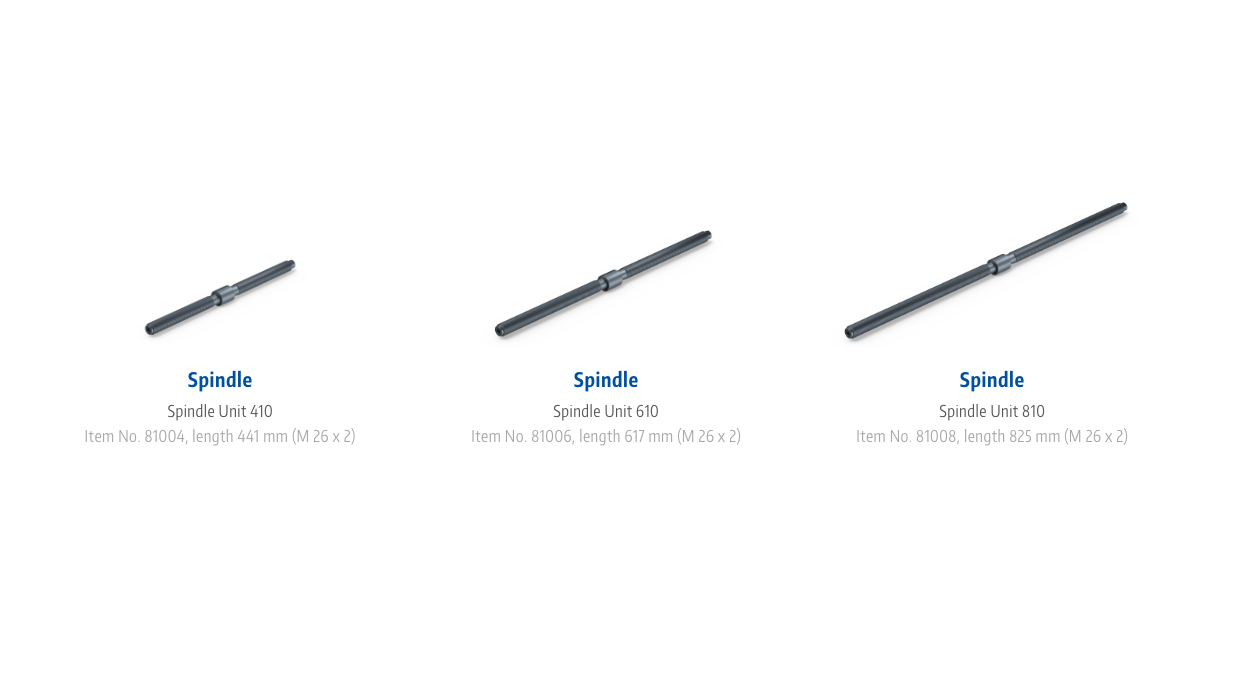

Spindle

To product category

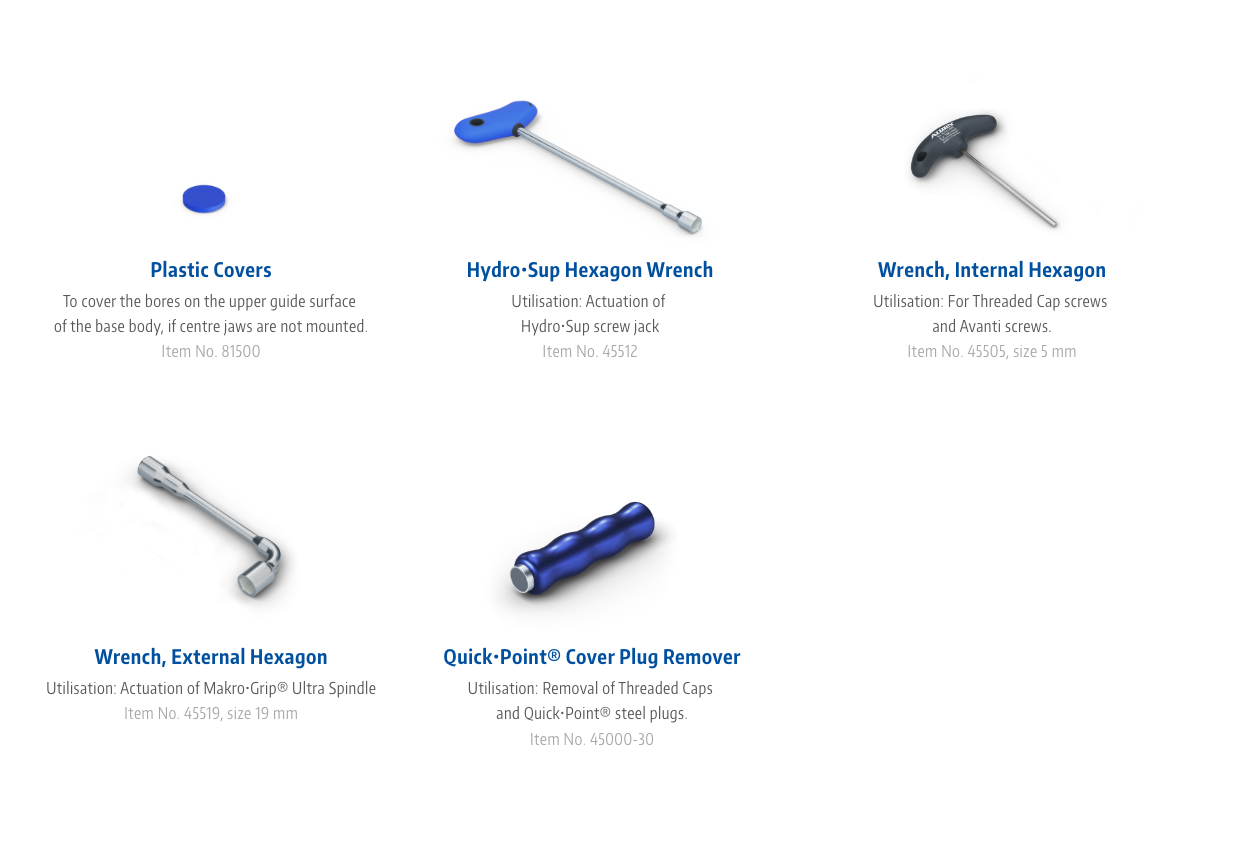

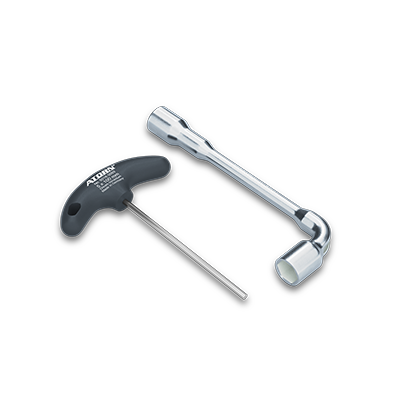

Accessories

To product category

Write your own success story with Makro•Grip® Ultra

Product overview

客户评价 1：Makro•Grip® Ultra 为我们提供了一种全新的夹持解决方案，使过去一直无法实现可靠夹持的工件，如今也能够进行加工。尤其让我印象深刻的是，我们能够如此快速地解决原有的夹持难题。从了解该系统到在生产中完成首次切削加工，整个过程甚至不到 3 个小时。

Simon Großmann, Großmann Präzisionstechnik, 73235 Weilheim unter Teck, Germany

客户评价 2：借助 LANG 全新的夹持系统，我们如今能够实现大型工件的同心夹持。Makro•Grip® Ultra 的模块化设计结合零点定位系统，使我们能够在极短时间内完成多种不同工件的加工。快速调节钳口的设计非常人性化，操作十分便捷。此外，预压齿技术再次成功经受了实际应用验证。在此次应用中，我们仅通过 5 mm 的夹持深度，即可夹持高度达 350 mm 的钢制块状工件。粗加工过程中采用了高进给铣刀。通过配备 Avanti 顶部钳口，二次装夹加工只需几个简单步骤即可完成。在加工精度方面，LANG 系统完全满足我们的需求。

Michael Kupke, MKTec Meisterbetrieb, 86567 Hilgertshausen, Germany

客户评价 3：由于我们的原型部门需要高度集成的小批量生产能力，换装时间对生产经济性具有重要影响。同时，不同夹持方案之间的频繁切换，也对工件夹持系统的灵活性提出了更高要求。这正是零点定位系统以及高度模块化的 Makro•Grip® Ultra 所展现优势的地方。凭借其模块化设计，我们能够始终根据实际需求灵活调整系统配置，并通过同一套工件夹持系统覆盖大多数零件加工需求。因此，我们始终能够有效控制换装时间，提高整体生产效率。

Uwe Herrmann, Bertrandt Technikum GmbH, 71139 Ehningen, Germany

Are you ready to make your production more efficient?

Product overview

Learn more about other solutions by LANG

I'm looking for a contact I want to be contacted

Country

You must have JavaScript enabled to use this form.

Preferred contact

By email

By phone

* Mandatory fields

Your request will be forwarded to the contact person responsible for you and the data you enter will only be used to contact you.

Clamping plates and large parts with Makro•Grip® Ultra

simple. gripping. bigger.

工件夹持，迈入全新维度

The new modular workholding system for machining applications of plates and large components.

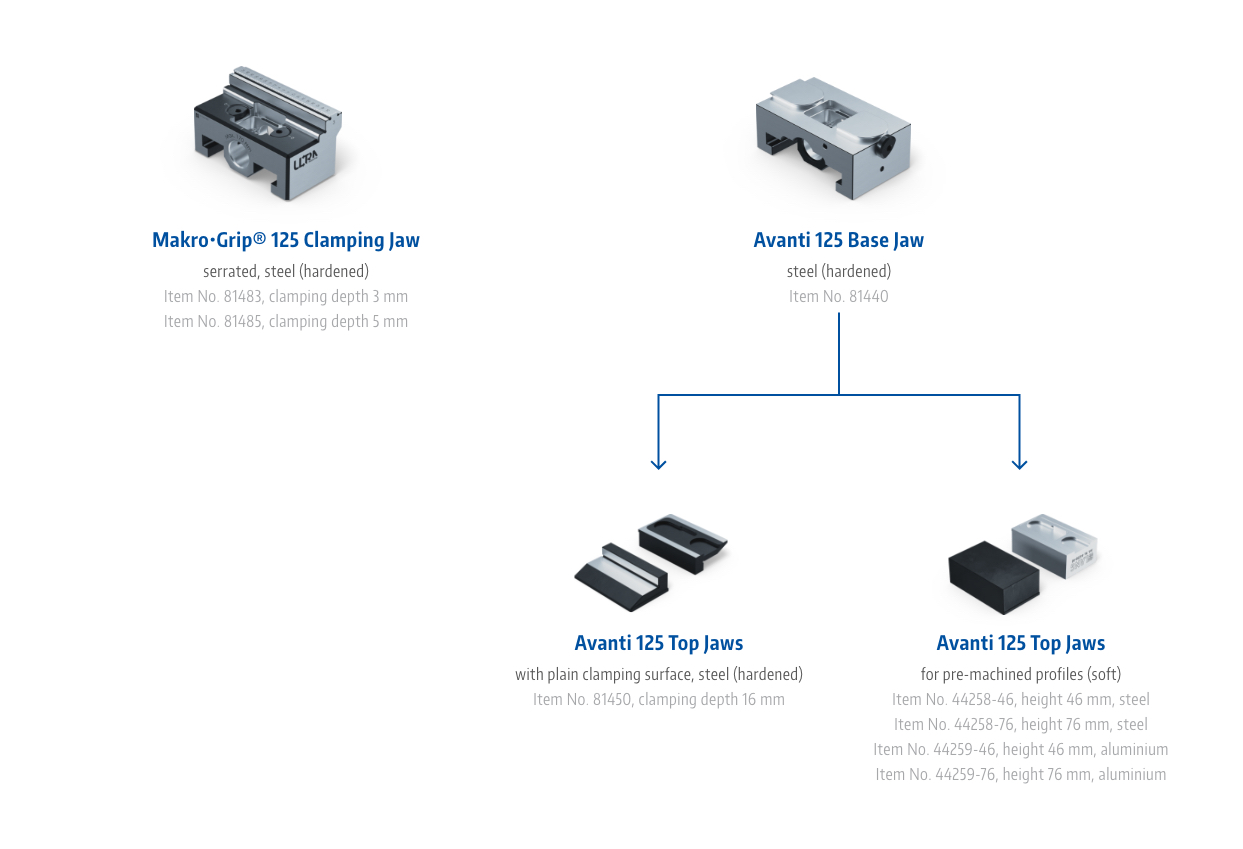

Clamping jaws
