Key data at a glance

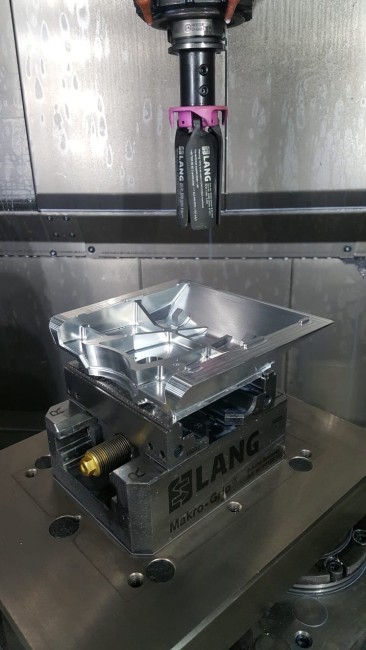

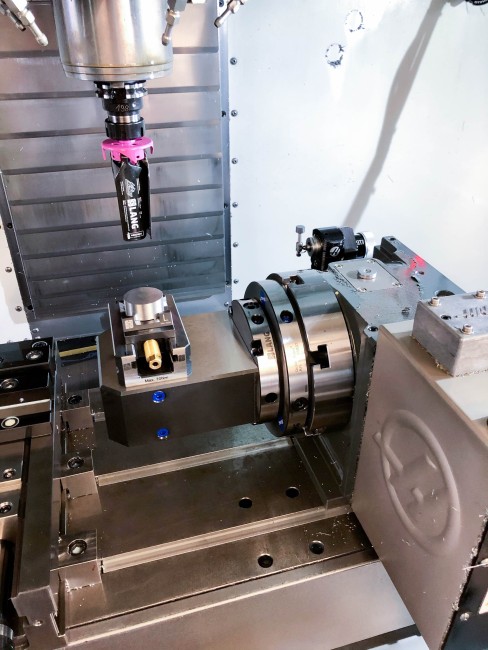

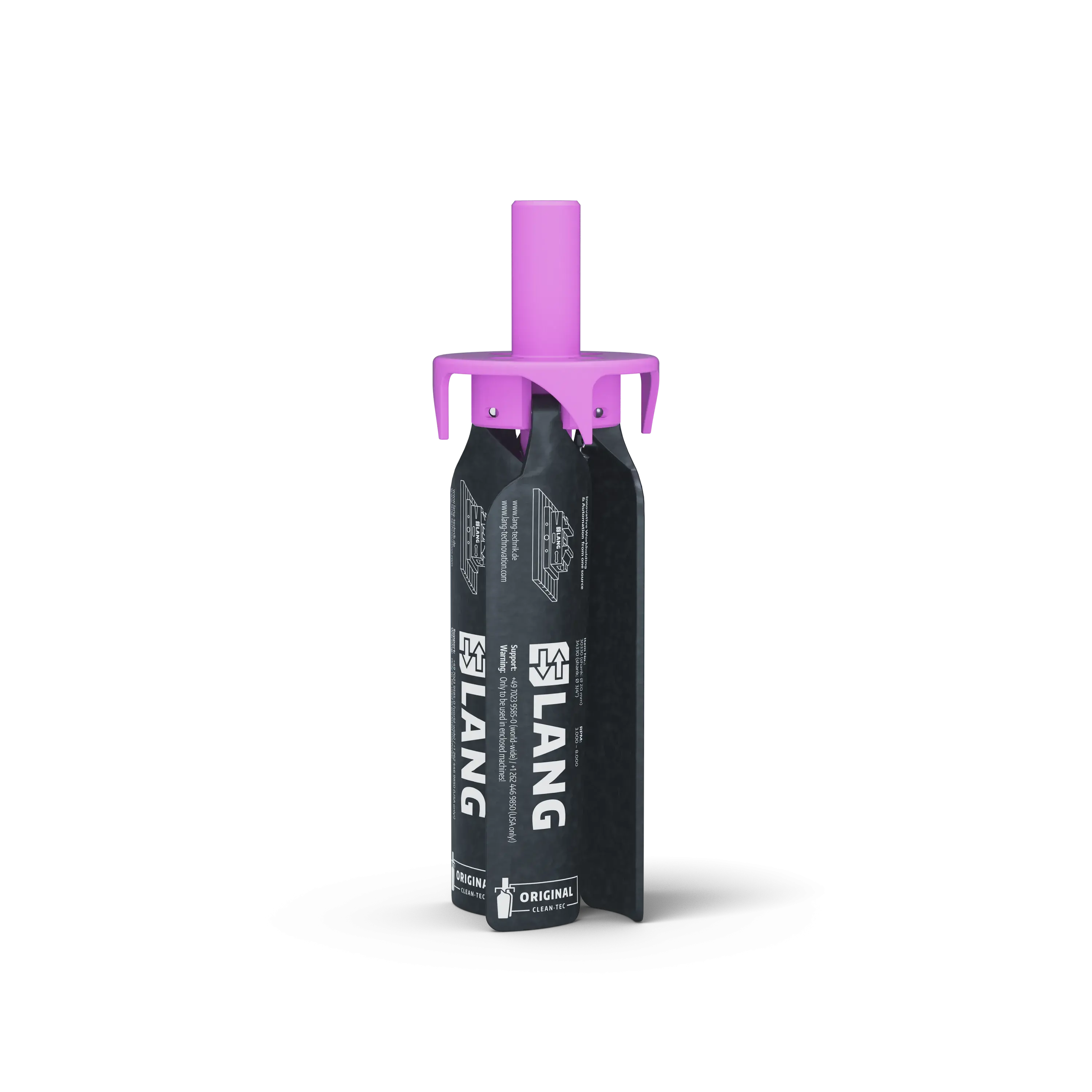

The largest version of the Clean•Tec chip fan, whose body can be clamped in any standard Ø 20 mm tool holder, is particularly suitable for cleaning large areas and is, therefore, more likely to be used in larger machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.
Socket diameter
20 mm (0.79")
Socket length
42 mm (1.65")
Wing length
166 mm (6.54")
Total length
208 mm (8.19")
Diameter with closed wings
68 mm (2.68")
Diameter with open wings
330 mm (12.99")
RPM range
3000 - 8000 R/min
Application
large-scale
Packaging Unit
1 Piece
Weight
0.21 kg (0.46 lbs)
Material
Plastic
