Key data at a glance

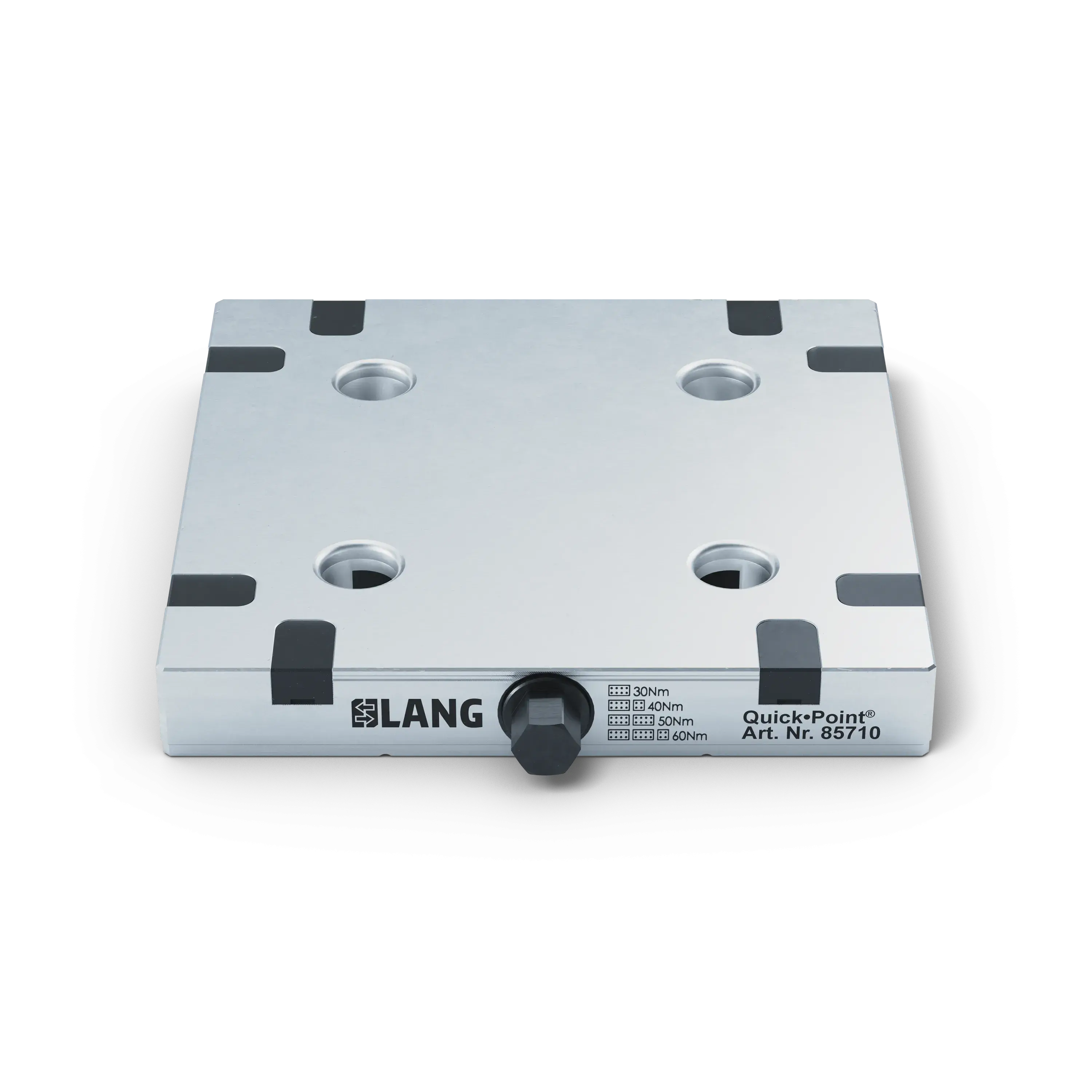

The new expandable Quick•Point® modular plates are characterized by even more simple, faster and user-friendly handling. The 1-fold modular plate is usually added to a 2-fold modular plate and connected to it via a connecting set. The patented clamping mechanism allows the connected modular plates to be actuated with just one tightening screw and clamping devices can be clamped in a cross-plate zero-point grid. The Quick•Point® modular plates are available without predefined mounting holes and can therefore be individually adapted to the conditions of the machine table. LANG offers the insertion of the necessary mounting holes as a service, but this can also be done by the customer.

Dimensions

192 x 192 x 27 mm (7.56" x 7.56" x 1.06")

Clamping type

Single clamping

Clamping units

1-fold

Cross-plate grid possible

Yes

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

Yes

Packaging Unit

1 Piece

Weight

7.2 kg (15.87 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

125

Size of compatible vise

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

1 x

45096-30: Cover Plugs, ø 20 mm, for 96 mm spacing , steel (4 pcs.)

8 x Quick•Point® Covers for Modular Plates

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.

Learn all about the benefits and functionality of our Quick•Point® zero point clamping system.

Discover now

下载

FAQ - Frequently asked questions

下载

Instruction manual

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

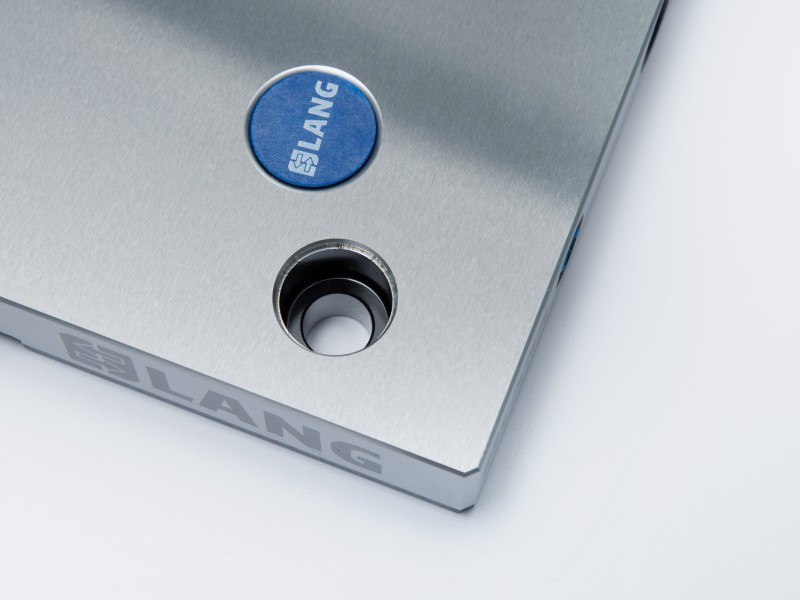

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

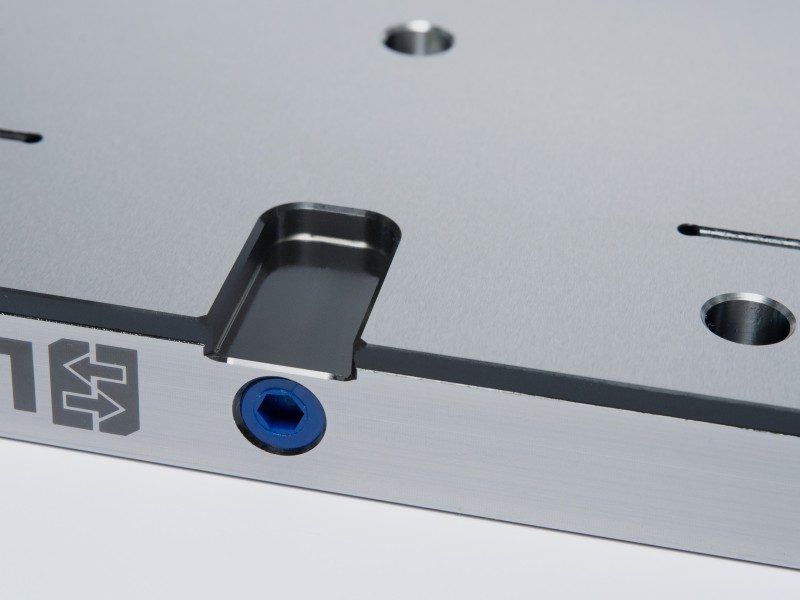

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.

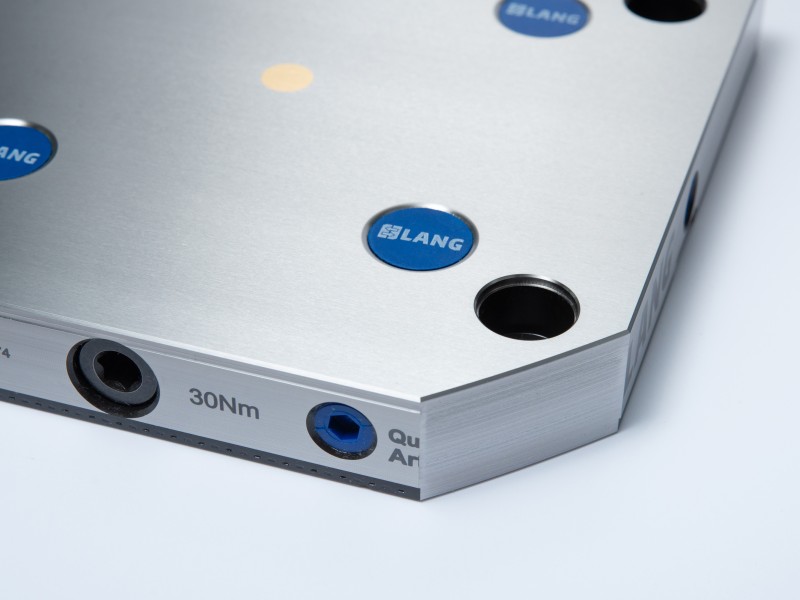

Custom corner radius

Upon request, we can adjust the zero-point system (multi grid or individual grid plates in a row) to round tables of the machine tool by cutting off the corners. A clean solution that avoids in most cases a protrusion of the zero-point plates to the machine table.
