Key data at a glance

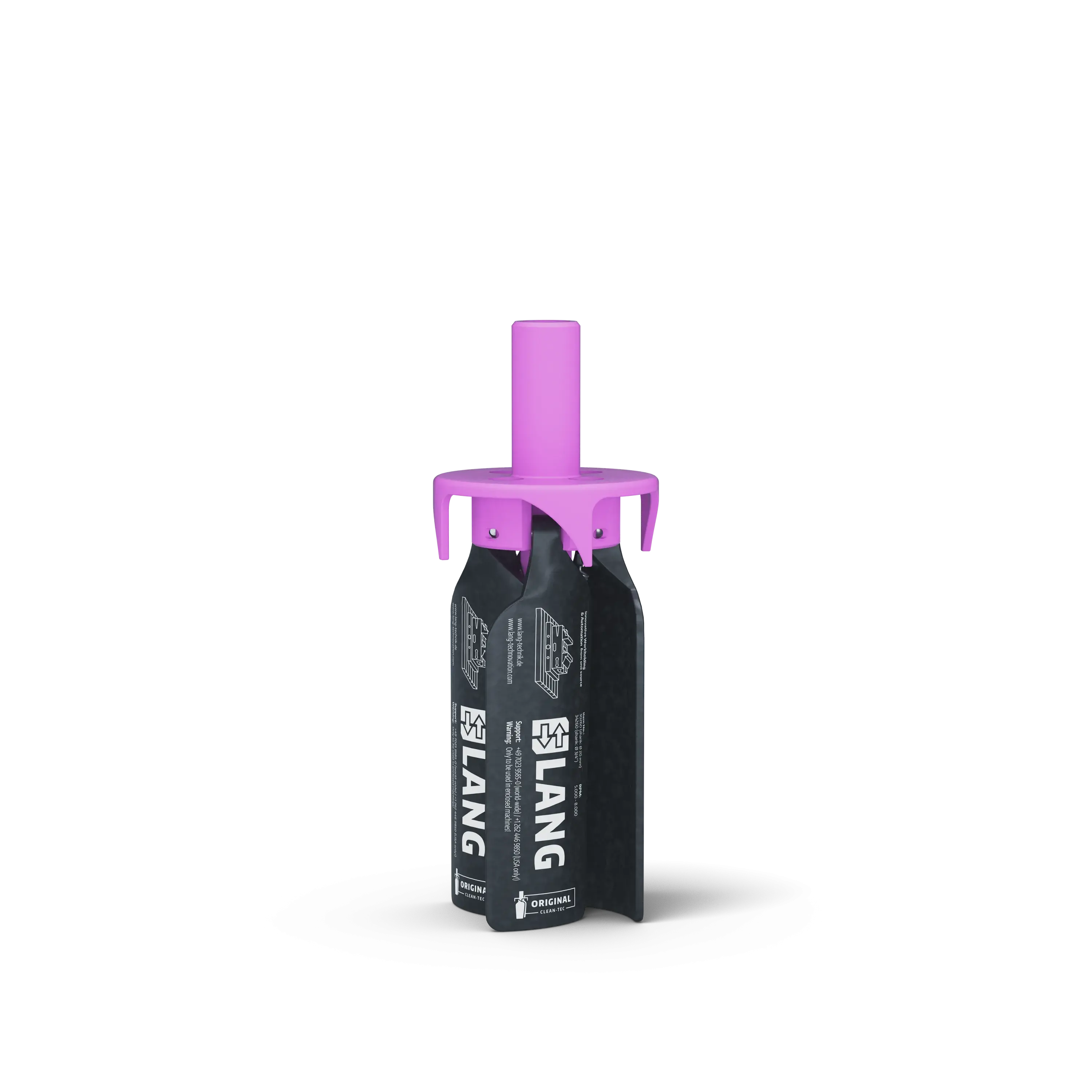

The medium-size version of the Clean•Tec chip fan, whose body can be clamped in any standard Ø 20 mm tool holder, is suitable for universal cleaning tasks. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.
Socket diameter
20 mm (0.79")
Socket length
42 mm (1.65")
Wing length
130 mm (5.12")
Total length
172 mm (6.77")
Diameter with closed wings
68 mm (2.68")
Diameter with open wings
260 mm (10.24")
RPM range
5000 - 8000 R/min
Application
targeted
Packaging Unit
1 Piece
Weight
0.19 kg (0.42 lbs)
Material
Plastic
