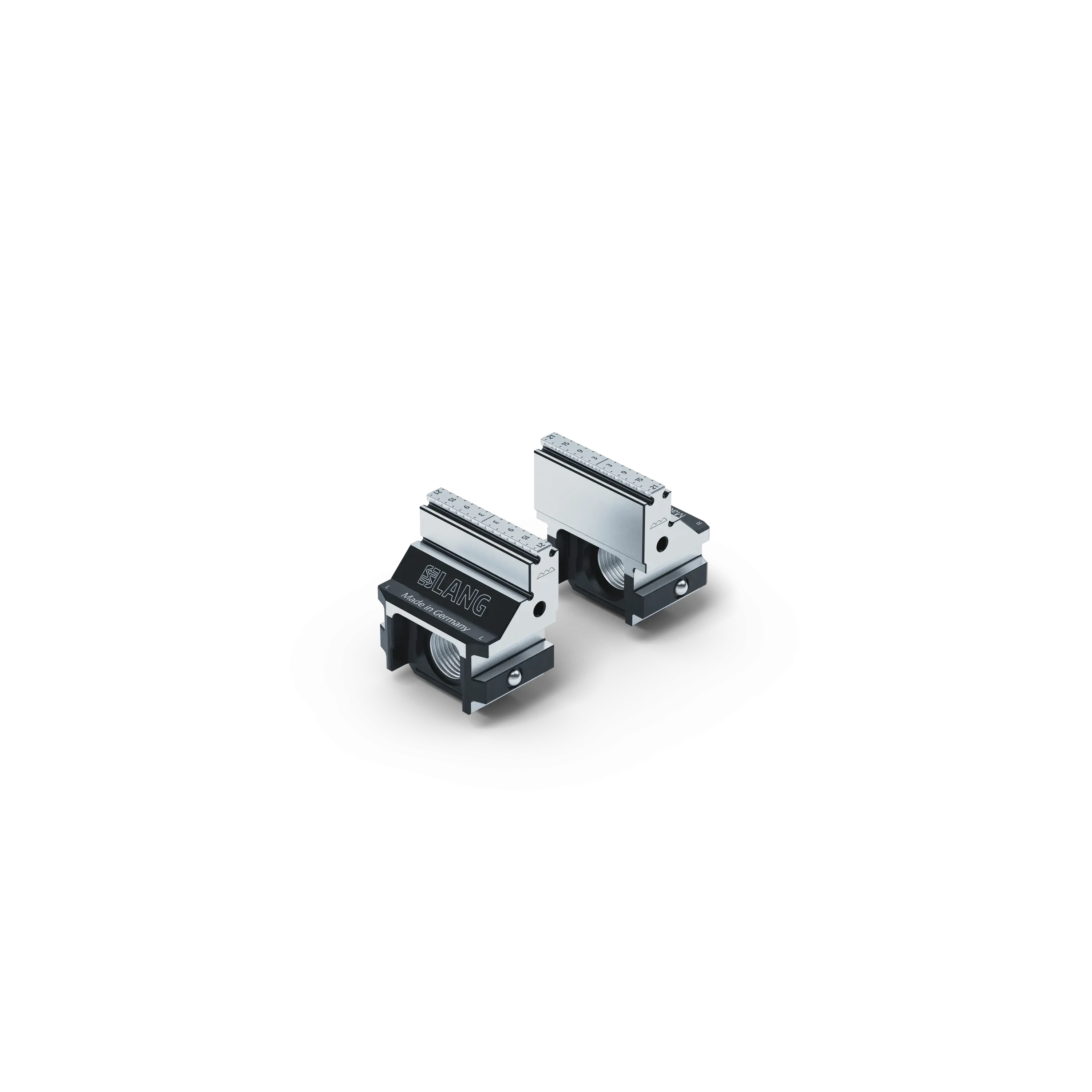

Makro•Grip® FS 77, Spare Jaws

Makro•Grip® FS 77, Spare Jaws

Jaw width 46 mm, with continuous / full serration, for Item No. 48085-46 FS

商品编号：1870854620FS
i

Please note: For clamping pre-stamped workpieces in Makro•Grip® FS 5-axis vises, you need the matching stamping jaws of the new Makro•Grip® FS series.

Learn more

Key data at a glance

This version of the Makro•Grip® FS jaws with jaw width 46 mm is suitable for the 5-Axis Vise with part number 48085-46 FS. Equipped with continuous serration, pre-stamped workpiece blanks can be clamped by form-fit at a clamping depth of 3 mm. Thanks to serration on both sides, the clamping jaws can be easily turned to realize a larger clamping range.

Dimensions
Jaw width: 46 mm (1.81")
Workpiece shape
cubic
Packaging Unit
1 Pair
Weight
0.53 kg (1.17 lbs)
Material
Steel
