Key data at a glance

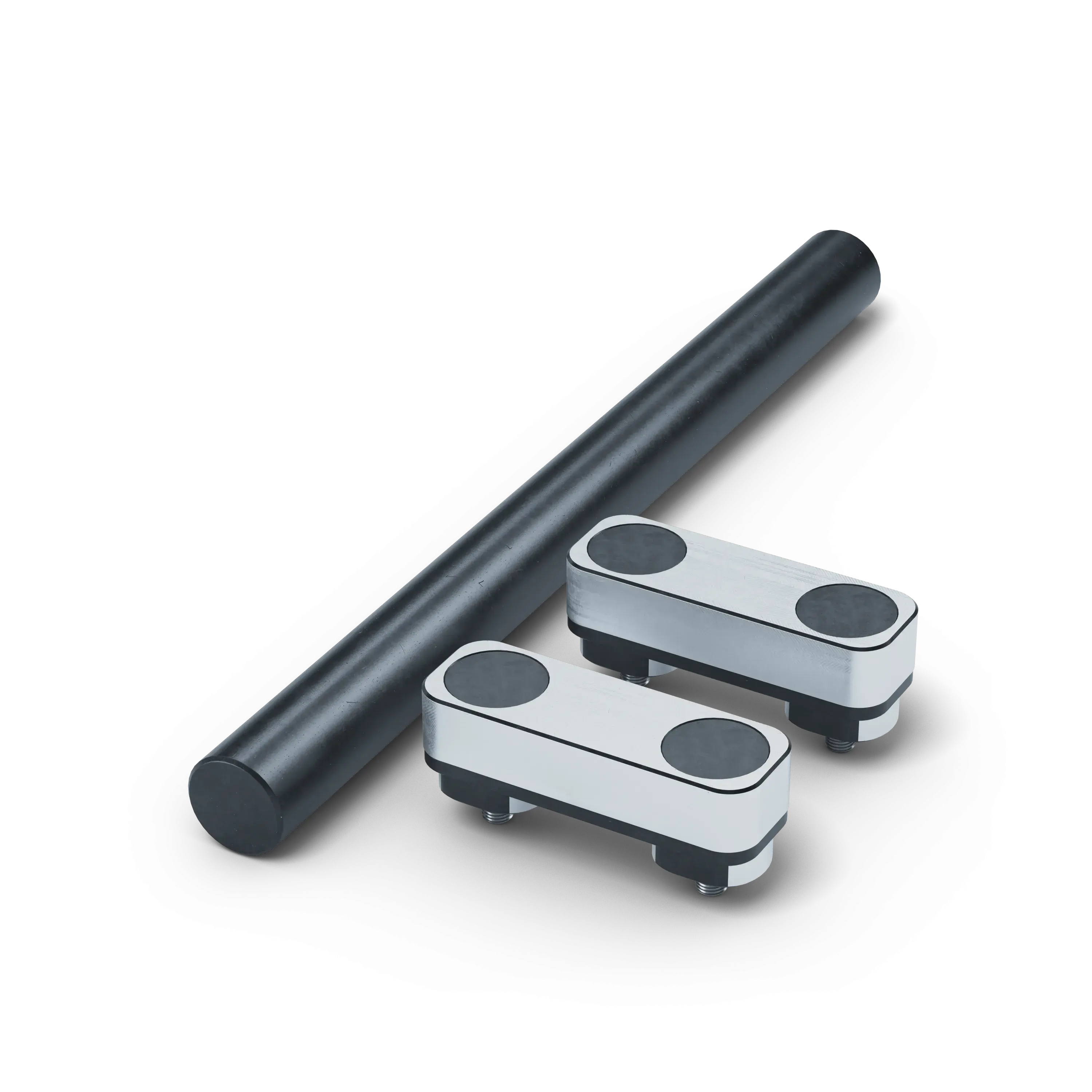

The conversion kit for the Quick•Point® modular plates includes a pressure bolt and two connectors to connect two modular plates and handle them with a tightening screw. Due to the precisely fitting connecting pieces, the alignment of modular plates connected to each other is no longer necessary.

Packaging Unit

1 Set

Weight

0.3 kg (0.66 lbs)

Material

Steel

供货范围：

1 x Pressure Bolt

2 x Connecting Pieces

4 x Sealing Caps

4 x Socket Head Screws

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
