Key data at a glance

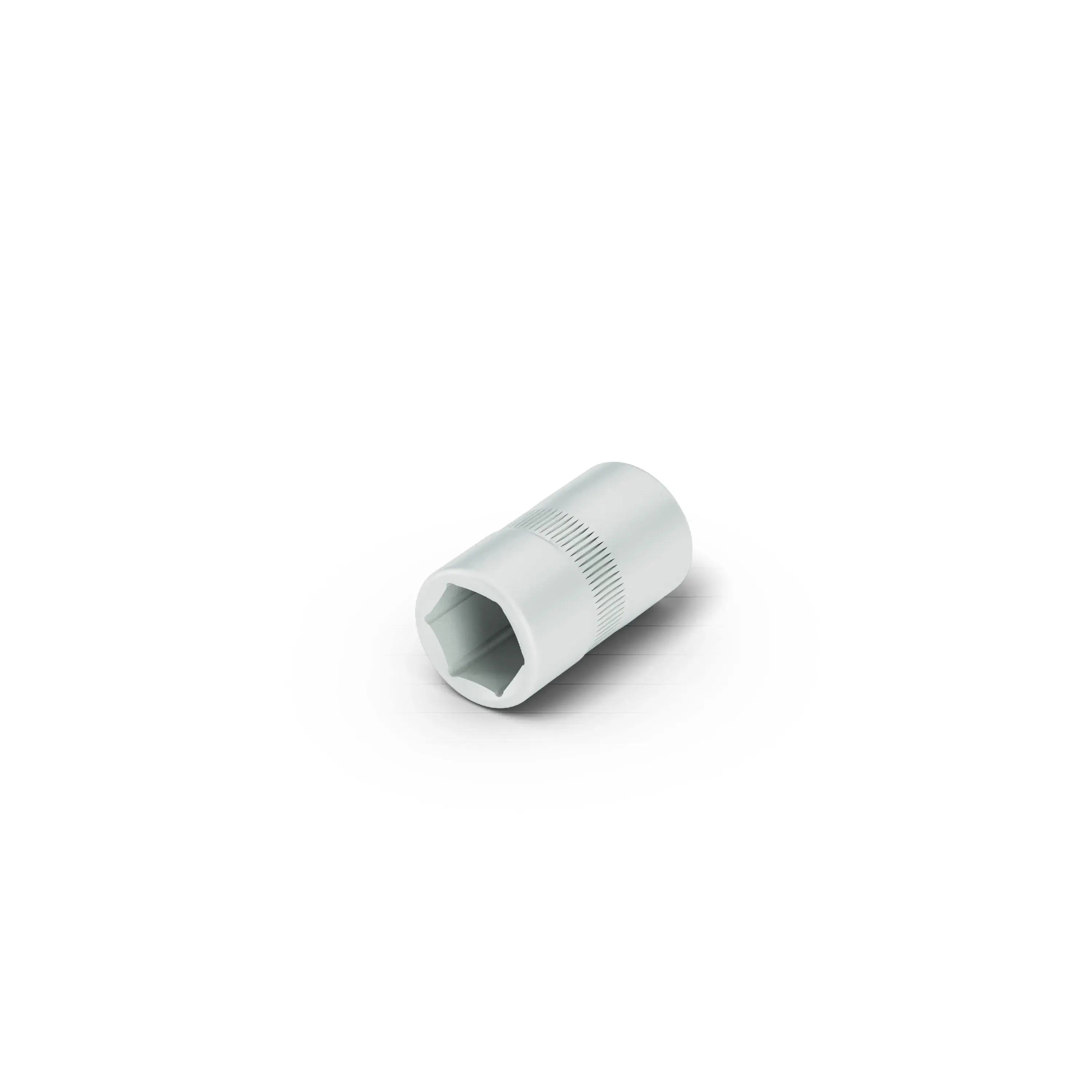

The hexagon socket (DIN 3120) size 8 mm can be used to clamp workpieces in all LANG vises with a base body width of 77 mm. Its 3/8” square drive fits standard torque wrenches. The maximum tightening torque of the spindles of these vises is 30 Nm.

Wrench size

SW 8

Inch thread

3/8"

Weight

0.01 kg (0.02 lbs)

Material

Steel

Makro•Grip® Stamping Technology and Raw Part Clamping

The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.

Holding force Thanks to the form-fit clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
Process reliability Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
Accessibility The compact Makro•Grip® self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.
