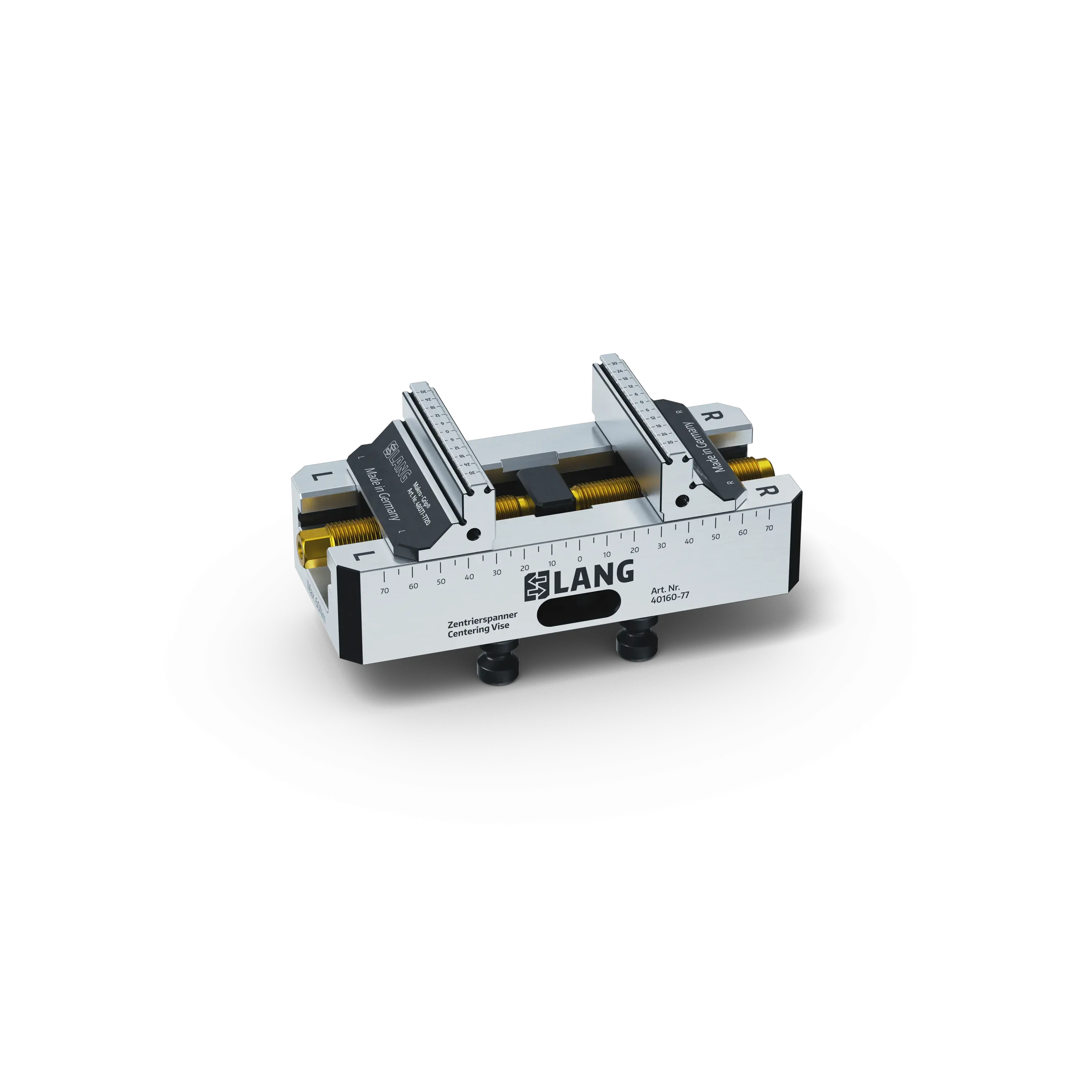

Makro•Grip® 77, 5-Axis Vise-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

The 5-axis vise from LANG Technik is characterized by its compact design and high holding forces. Its strengths come into full effect especially in the 5-axis machining of raw material. The 5-axis vise made of case-hardened steel and its clamping jaws milled from solid material easily endure even the highest strains in machining production. With its form-fit clamping technology, it ensures maximum safety in the machining process.

Clamping range

0 - 160 mm (0" - 6.3")

Dimensions

170 x 77 x 65 mm (6.69" x 3.03" x 2.56")

Clamping method

by form-fit / by friction

Workpiece shape

cubic

Packaging Unit

1 Piece

Weight

3.6 kg (7.94 lbs)

Material

Steel

More features:

Torque

60 Nm

Maximum allowed torque

Clamping stud size

16 mm (0.63")

Diameter of clamping studs

Clamping force

14.000 N

Clamping force at maximum torque

Centering accuracy

±0,02 mm

Centering tolerance of vises

Grid system

52 mm (2.05")

Zero-point pitch

Single components features:

Dimensions

Jaw width: 77 mm (3.03")

Spindle length

176 mm (6.93")

Thread pitch

M16 x 1.5

Diameter

16 mm (0.63")

For grid size

52

Threaded pin

M8

Makro•Grip® Stamping Technology and Raw Part Clamping

The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.

Holding force Thanks to the form-fit clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
Process reliability Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
Accessibility The compact Makro•Grip® self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.

Learn more about the benefits and functionality of our workholding solutions for raw part and second operation machining .

Discover now

Application pictures

5 axis vise from LANG Technik mills blank in a machine tool

Application videos

下载

Data sheet

下载

Instruction manual

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Tungsten-Carbide-Coating

A special Tungsten-Carbide Coating can be applied on the plain clamping surfaces of the Mak-ro•Grip® jaws in order to double the friction force when clamping non-stamped parts, without leaving any traces on the workpiece.

Modified Clamping depth

Sometimes raw material has a certain radius, which makes it hard to clamp it on the 3 mm step of the Makro•Grip® jaws. This can be solved by lowering the clamping step so that the workpie-ce is held above the radius. On the one hand, this provides a resting surface for the workpice, on the other hand it ensures safe clamping.

Modification of Base

The case-hardened base body of all LANG vice types allows additional threaded holes or fittings to be inserted on the bottom in order to be able to use the vice on other zero-point clamping systems or to mount it to any fixture.
