Key data at a glance

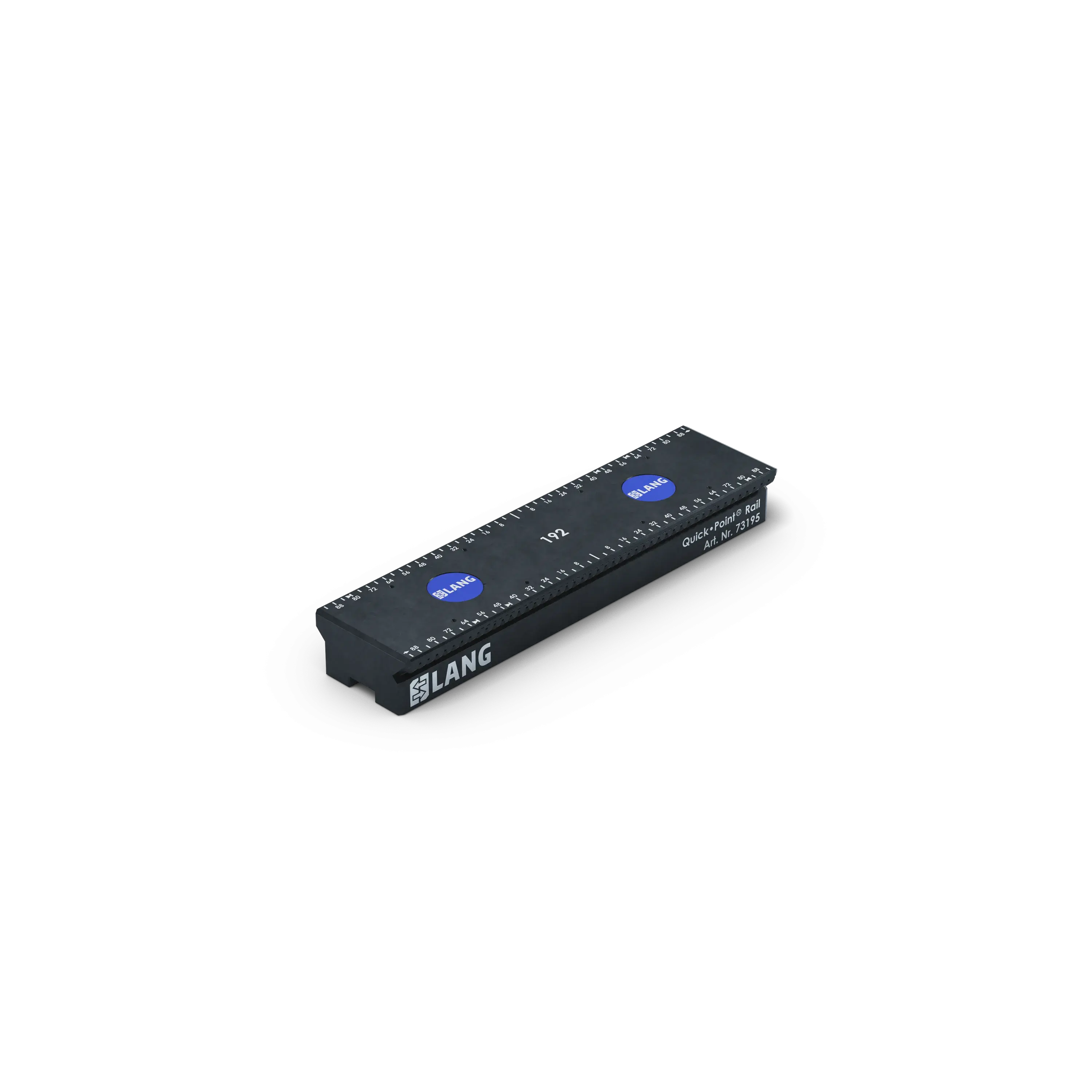

The extension bar of Quick•Point® Rail serves as an addition to the clamping bar and can supplement it on the left and right. It cannot be used separately. The seamless alignment / connection of the clamping bar and the extension bar allows variable positioning of the clamping elements at 4 mm intervals, continuously and across the bars. With its two holes spaced 50 mm apart, it can be mounted on automation pallets with this same hole pattern or in the machine table using sliding blocks.
Dimensions
192 x 49 x 25 mm (7.56" x 1.93" x 0.98")
Mounting bores
50 / 100 mm distance
Keyways
20 H7
Packaging Unit
1 Piece
Weight
1.5 kg (3.31 lbs)
Material
Steel
