Key data at a glance

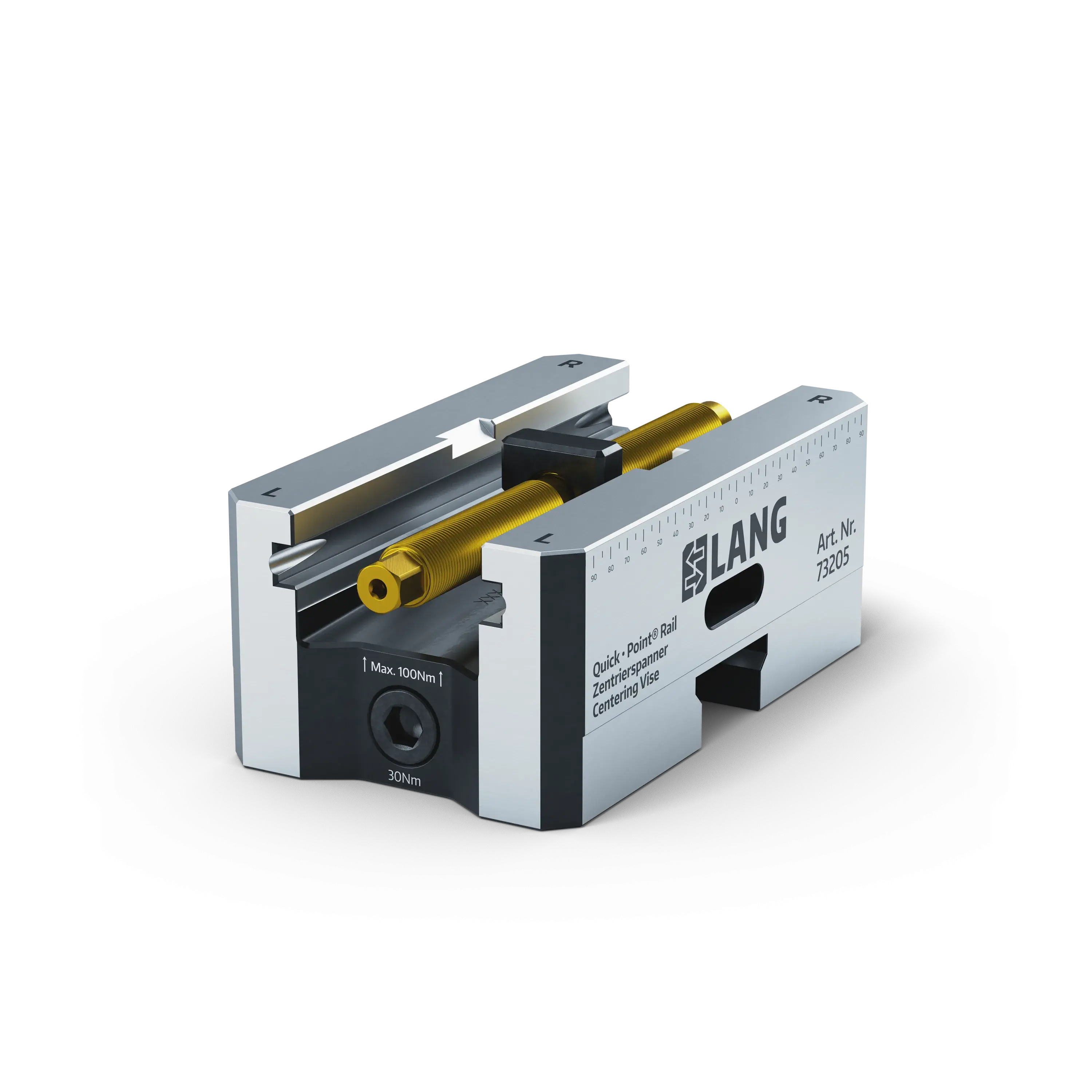

The Quick•Point® Rail 125 centering vise has a base length of 210 mm and all clamping jaws of system size 125 can be mounted to it. The centering vise can be attached to the clamping bars of the quick-clamping system with absolute flexibility and positioning accuracy at 4 mm intervals. Thanks to the dovetail guide and the pull-down principle, the connection between the clamping bar and centering vice is extremely robust. For this reason, and thanks to its precision, the quick-clamping system is ideally suited for the highest demands in machining.
Dimensions
210 x 125 x 84 mm (8.27" x 4.92" x 3.31")
Clamping method
by form-fit / by friction
Workpiece shape
no data
Packaging Unit
1 Piece
Weight
11.7 kg (25.79 lbs)
Material
Steel
More features:
注意：
Suitable clamping jaws must be ordered separately.
供货范围：
1x base body without clamping jaws
