Key data at a glance

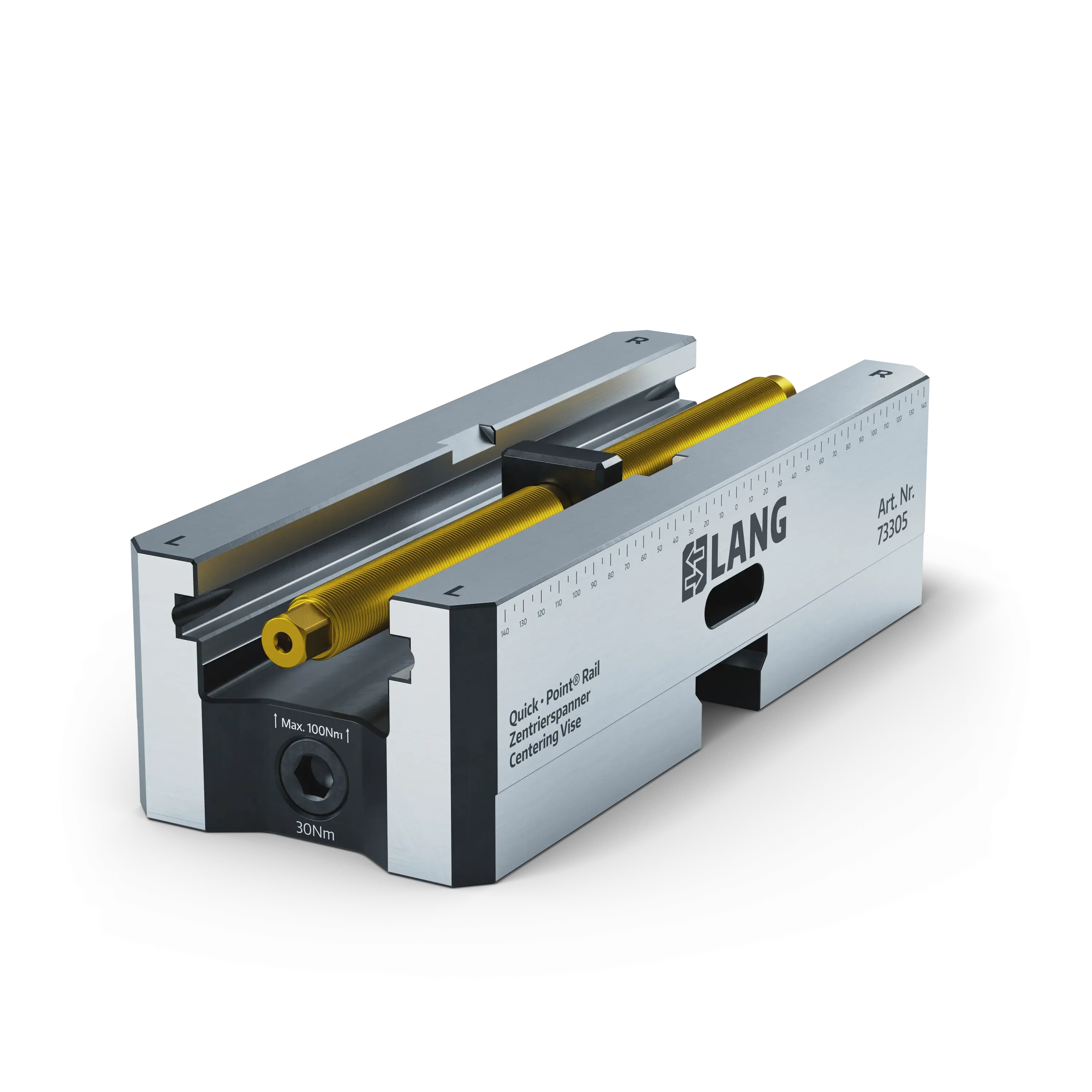

The Quick•Point® Rail 125 centering vise has a base length of 310 mm and is able to accommodate clamping jaws of system size 125. The serrated clamping bars of the quick-clamping system enable extremely flexible and precise positioning of the centering vise in 4 mm increments. The dovetail guide and the pull-down principle make the connection between the clamping bar and the centering vise particularly stable. This quick-clamping system withstands even the highest cutting forces and thus demonstrates its outstanding stability and load capacity.
Dimensions
310 x 125 x 84 mm (12.2" x 4.92" x 3.31")
Clamping method
by form-fit / by friction
Workpiece shape
no data
Packaging Unit
1 Piece
Weight
18.2 kg (40.12 lbs)
More features:
注意：
Suitable clamping jaws must be ordered separately.
供货范围：
1x base body without clamping jaws
