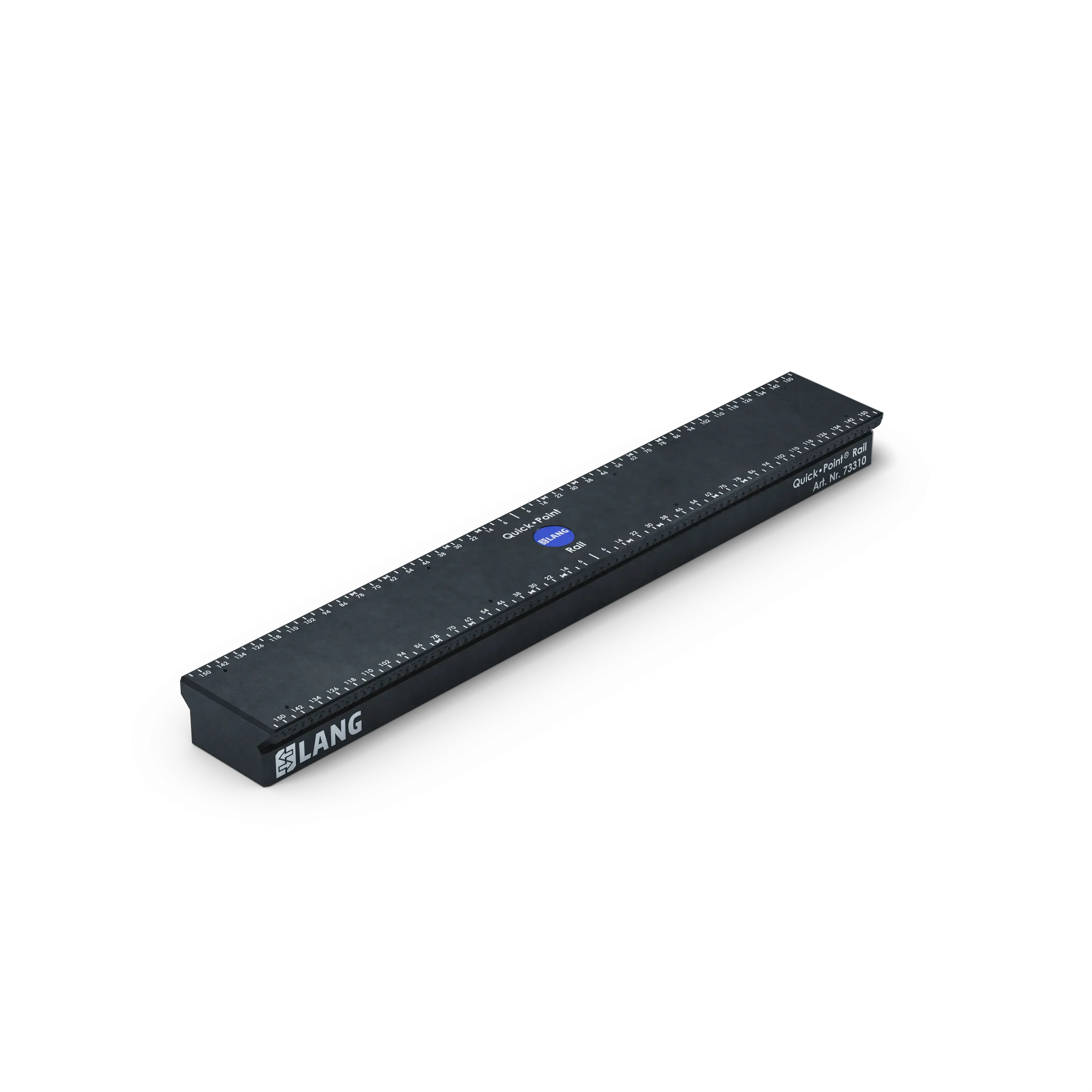

Quick•Point® Rail, Clamping bar

Key data at a glance

The Quick•Point® Rail clamping bar with a length of 316 mm was specially developed for mounting on automation pallets with a size of 320 mm. Clamping devices such as the Makro•Grip® Rail 5-axis vise or the Quick•Point® Rail 5-axis extension can be attached directly to the clamping bar without the need for a base plate on the pallet. The clamping device is pushed onto the clamping bar from the side and can be flexibly positioned and fixed in 4 mm increments. This variant has no fixing holes and can be customized according to your own requirements.
