Key data at a glance

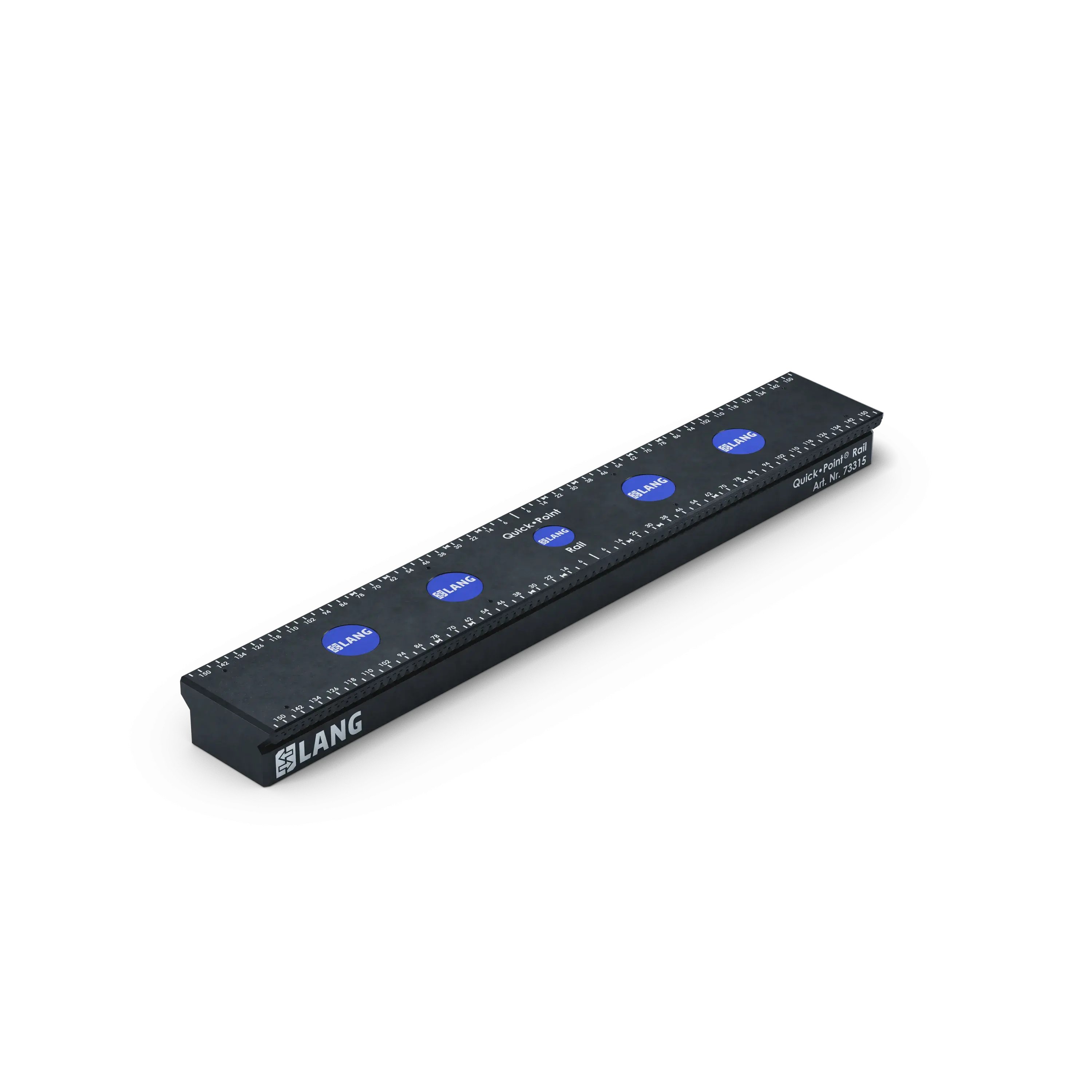

The Quick•Point® Rail clamping bar with a length of 316 mm was specially designed for mounting on automation pallets with a size of 320 mm. Vises and 5-axis zero point risers can be attached directly to the pallet without the need for a base plate. Clamping devices are pushed onto the clamping bar from the side and attached to the clamping bar using a pull-down effect. Positioning is possible at 4 mm intervals. This version has predefined mounting holes for M10/M12 screws at 50/100 mm intervals.
Dimensions
316 x 49 x 25 mm (12.44" x 1.93" x 0.98")
Mounting bores
50 / 100 mm distance
Keyways
Nein, nicht möglich
Packaging Unit
1 Piece
Weight
2.41 kg (5.31 lbs)
Material
Steel
