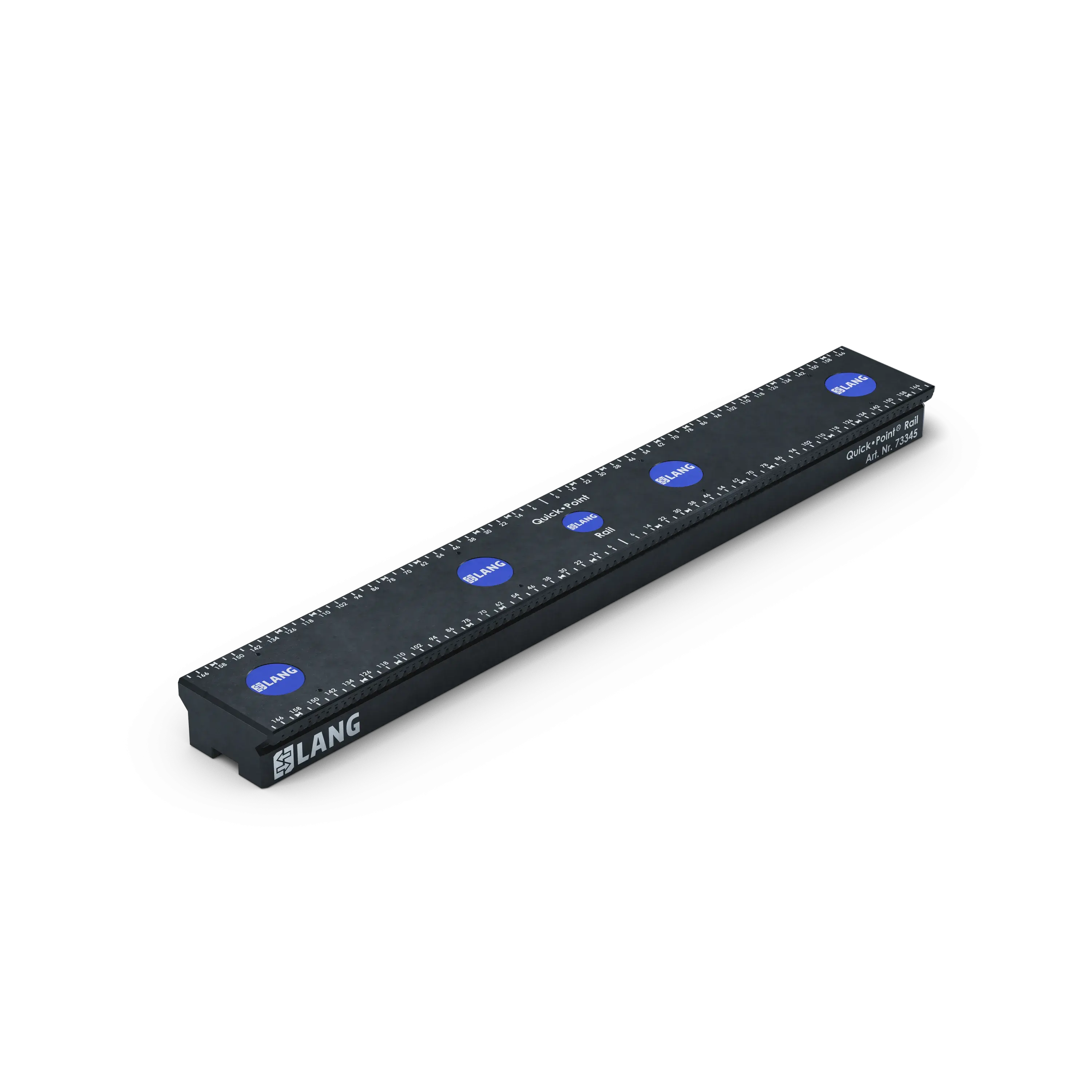

Quick•Point® Rail, Clamping bar

Key data at a glance

Quick•Point® Rail is a quick clamping system for holding zero point risers and 5-Axis Vises. Here, the clamping bar is inserted directly into the groove of the machine table or attached to an automation pallet without any modification of the base. The clamping bar can be used either individually or in combination with extension bars if more than two clamping devices are to be used side by side. With its holes spaced 50 mm apart, it can be mounted on pallets with exactly this hole pattern or fixed in the machine table using sliding blocks.
