Key data at a glance

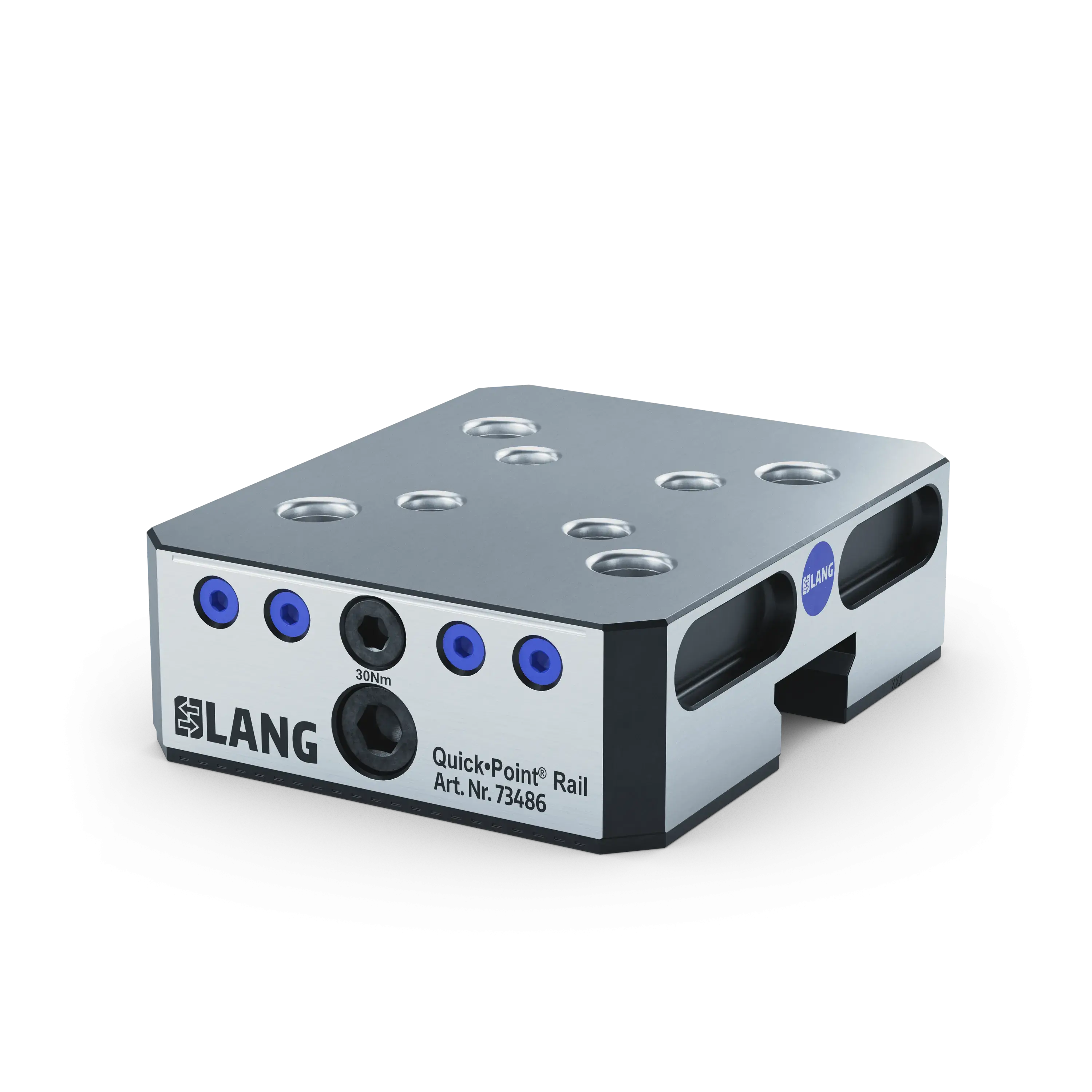

The Quick•Point® Rail 5-axis combi riser can be flexibly positioned on the clamping and extension bars of the quick clamping system and fixed at 4 mm intervals. Thanks to the dovetail guide and pull-down effect, the quick clamping system impresses with maximum stability and load capacity. The 5-axis combi riser offers both the 52 mm and the 96 mm zero point grid on its upper side, which means that any vise model from LANG can be clamped in it.
Dimensions
192 x 156 x 60 mm (7.56" x 6.14" x 2.36")
Packaging Unit
1 Piece
Weight
10.3 kg (22.71 lbs)
Material
Steel
More features:
注意：
The Quick•Point® Rail 5-axis riser can optionally be equipped with four Ø 20 mm clamping studs on the bottom side in order to be clamped in Quick•Point® 96 zero point plates.
