Key data at a glance

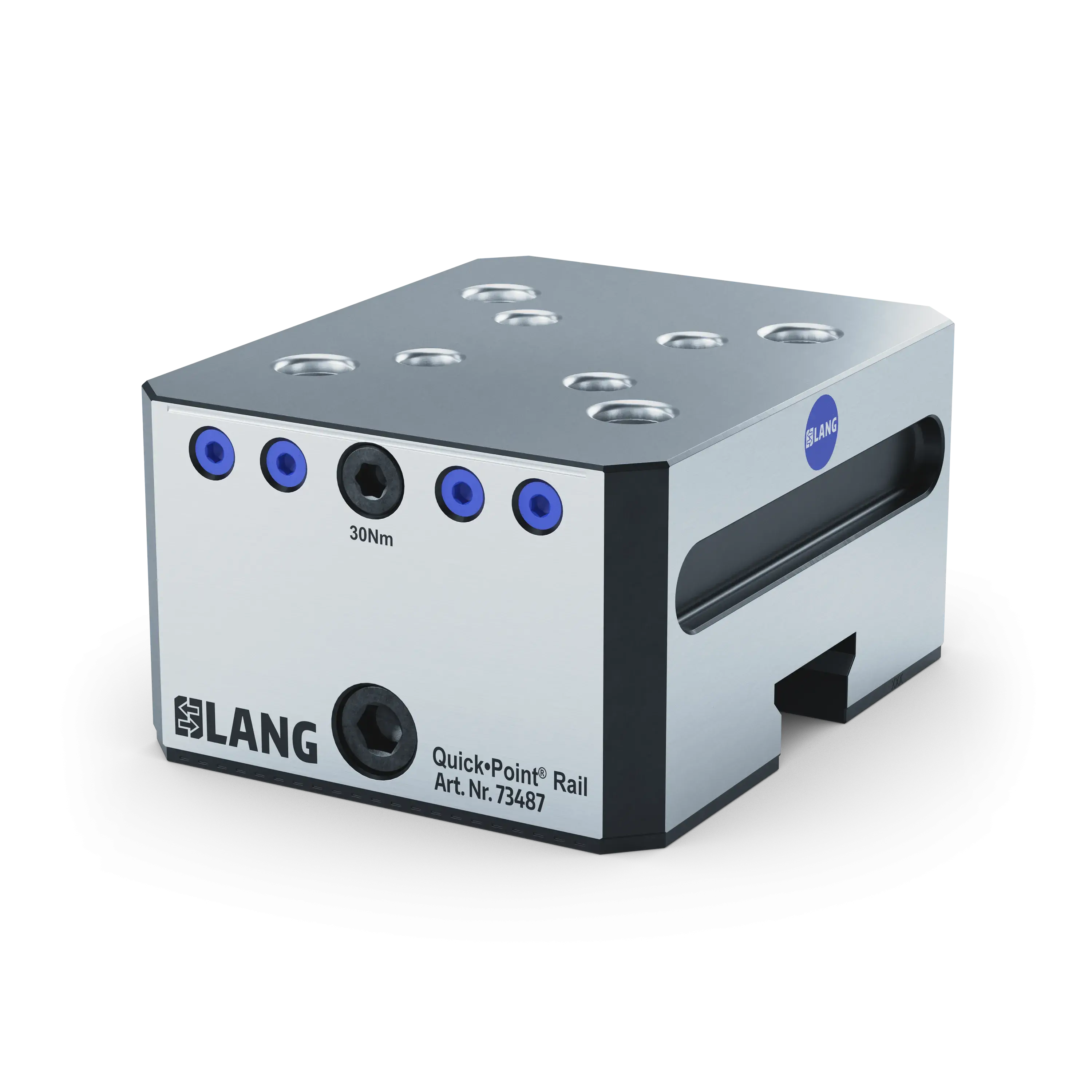

The 5-axis combi riser from Quick•Point® Rail can be mounted on the clamping bars of the quick clamping system with absolute flexibility and positioning accuracy. Thanks to the dovetail guide and the pull-down principle, the interface between the clamping bar and the riser is extremely stable and resilient - a guarantee for reliable and consistent milling quality. With the two zero point grids - 52 and 96 mm - all vise versions from LANG can be clamped without any problems. The overall height of 100 mm makes this riser ideal for 5-axis machining, where good accessibility is required.
Dimensions
192 x 156 x 100 mm (7.56" x 6.14" x 3.94")
Packaging Unit
1 Piece
Weight
18.3 kg (40.34 lbs)
Material
Steel
More features:
注意：
The Quick•Point® Rail 5-axis riser can optionally be equipped with four Ø 20 mm clamping studs on the bottom side in order to be clamped in Quick•Point® 96 zero point plates.
