Key data at a glance

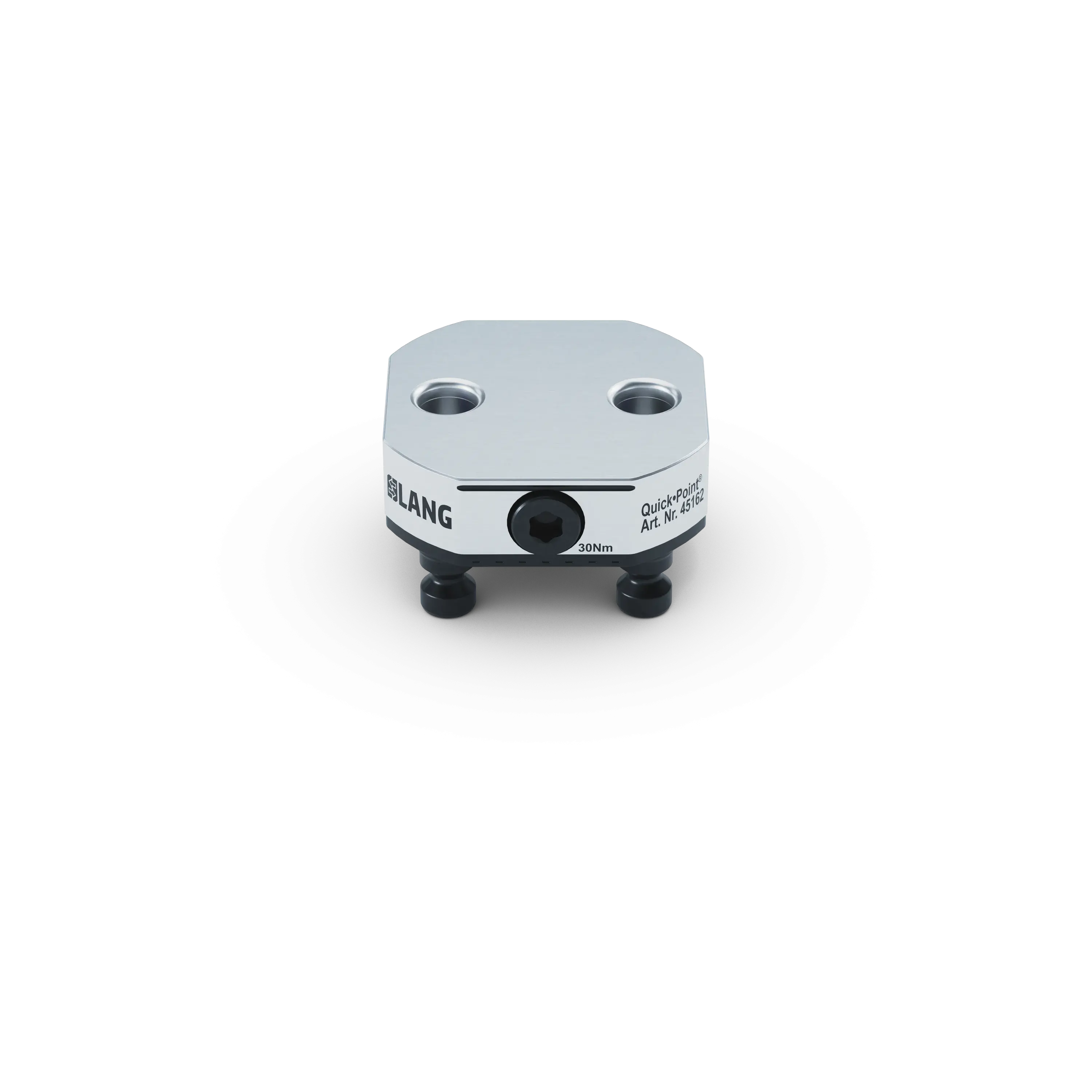

With the Quick•Point® duo2 adapter plate, the smallest centering vise from LANG Technik - the Makro•Grip® 46 micro - can be clamped in a regular Quick•Point® 52 zero point plate. This adapter plate with the dimensions 85 x 85 x 27 mm is equipped with four Ø 16 mm clamping stud in the 52 mm zero point grid and has two zero point bores on its upper side, matching the two clamping studs of the Makro•Grip® 46 micro.
Dimensions
85 x 85 x 27 mm (3.35" x 3.35" x 1.06")
Clamping type
Single clamping
Mounting bores
No, but not necessary
Keyways
No, not possible
M5 indexing bores
No, but not necessary
Packaging Unit
1 Piece
Weight
1.35 kg (2.98 lbs)
Material
Steel
