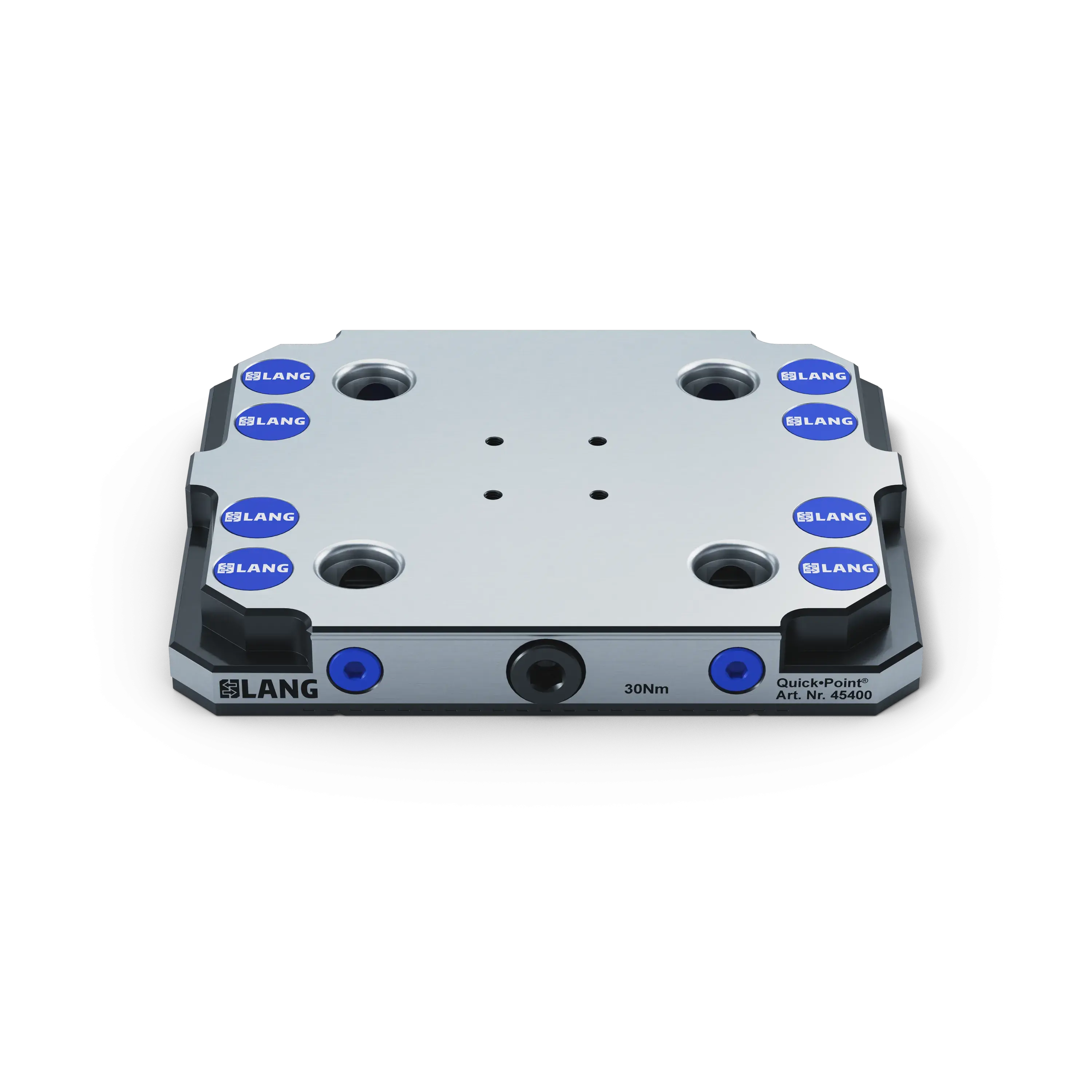

Key data at a glance
The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose. The Quick•Point® 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture. Its mounting holes are also suitable for the Quick•Point® riser made of aluminium, which can be used to improve accessibility for 5-sided machining.
Dimensions
192 x 156 x 27 mm (7.56" x 6.14" x 1.06")
Clamping edge included
Yes
Cross-plate grid possible
No
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
at 150 x 100 / 50 mm distance
Keyways
20 H7
M5 indexing bores
Yes
Packaging Unit
1 Piece
Weight
5.2 kg (11.46 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
8 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
