Key data at a glance

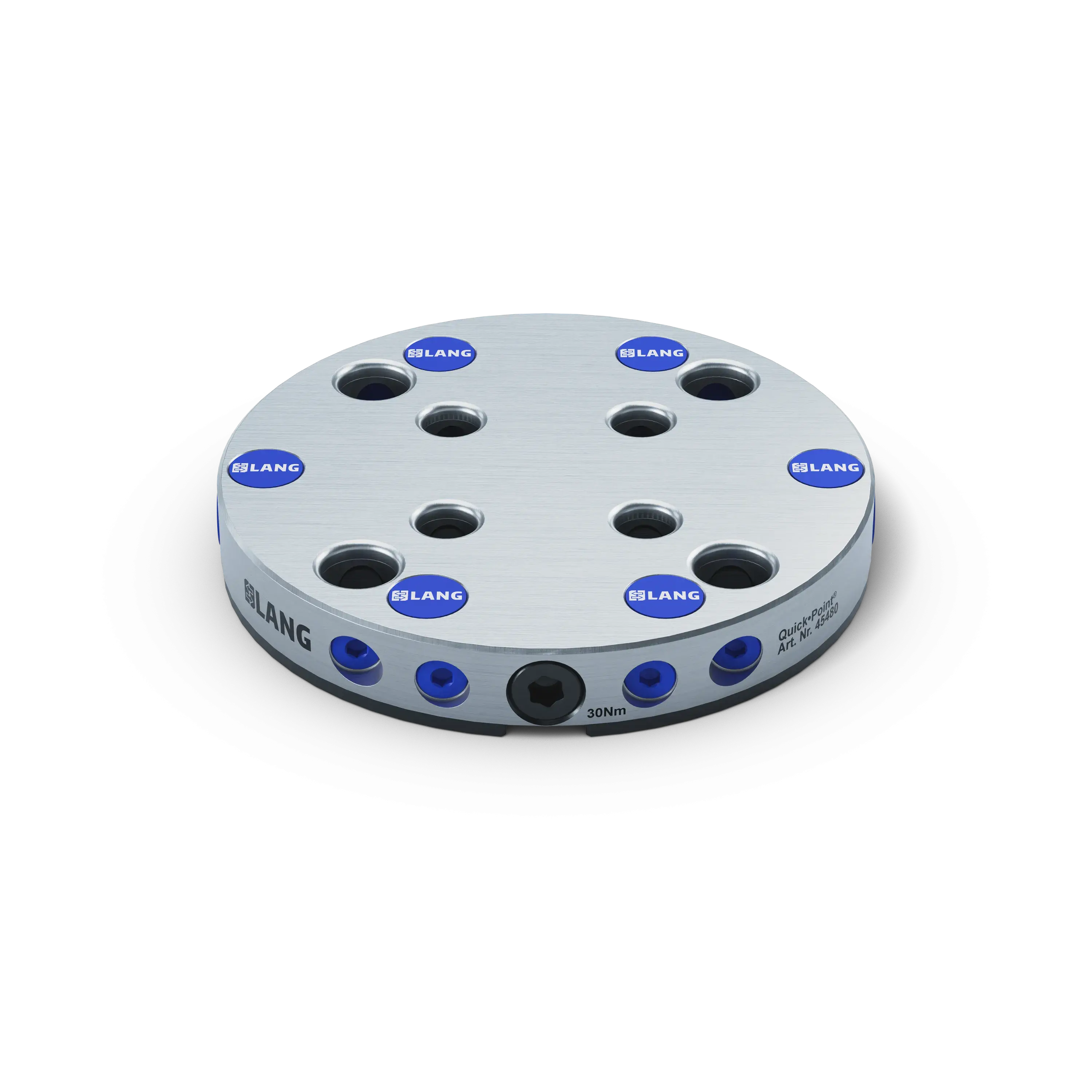

The combo round plate combines the two zero-point system sizes 52 and 96 mm in one zero-point plate, which is why it is able to mount both large and small LANG vises. This plate version is equipped with mounting bores for machine tables with 63 mm groove spacing. With a diameter of 176 mm, it can also be used in the 3-face pyramid or on the round aluminum riser.
Dimensions
⌀ 176 x 27 mm (6.93" x 1.06")
Clamping type
Single clamping
Mounting bores
for 63 mm groove spacing
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
4.1 kg (9.04 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
6 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
