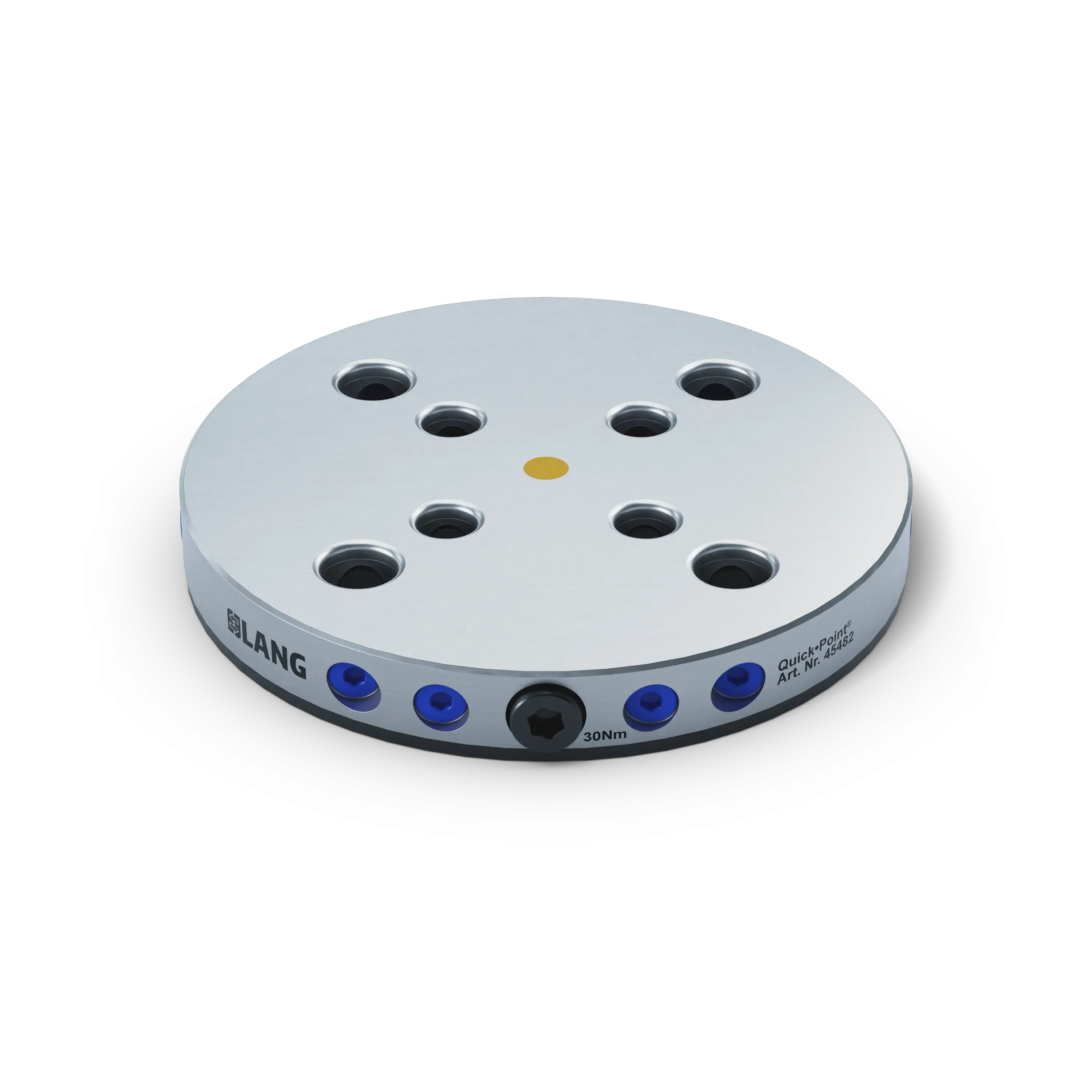

Quick•Point® 52/96, Combi Round Plate-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

This version of the combo round plates is available as standard without predefined mounting holes. Thanks to its 196 mm diameter, it offers versatile possibilities for adding a mounting hole pattern in order to fix it on machine tables or on fourth axes.

Dimensions

⌀ 196 x 27 mm (7.72" x 1.06")

Clamping type

Single clamping

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

5.4 kg (11.9 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

46 Micro / 46 / 77 / 125

Size of compatible vise

Clamping stud size

16 mm / 20 mm
(0.63" / 0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

1 x

45096-20: Cover Plugs, ø 20 mm, for 96 mm spacing, plastic (4 pcs.)

1 x

45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing, plastic (4 pcs.)

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.

Learn all about the benefits and functionality of our Quick•Point® zero point clamping system.

Discover now

下载

Data sheet

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.
