Key data at a glance

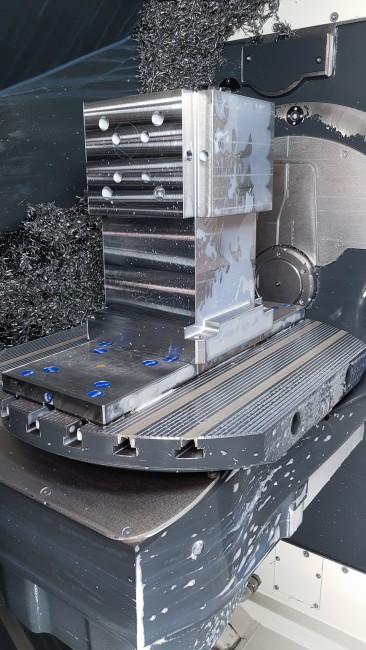

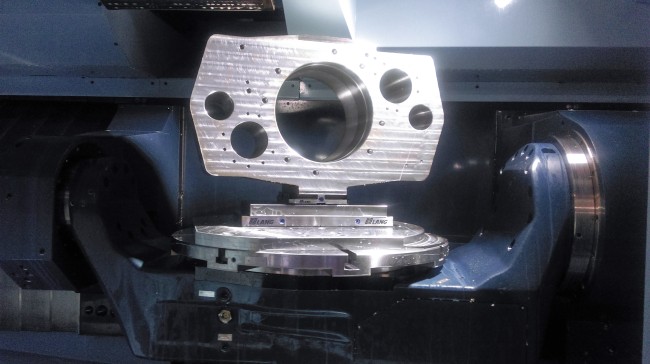

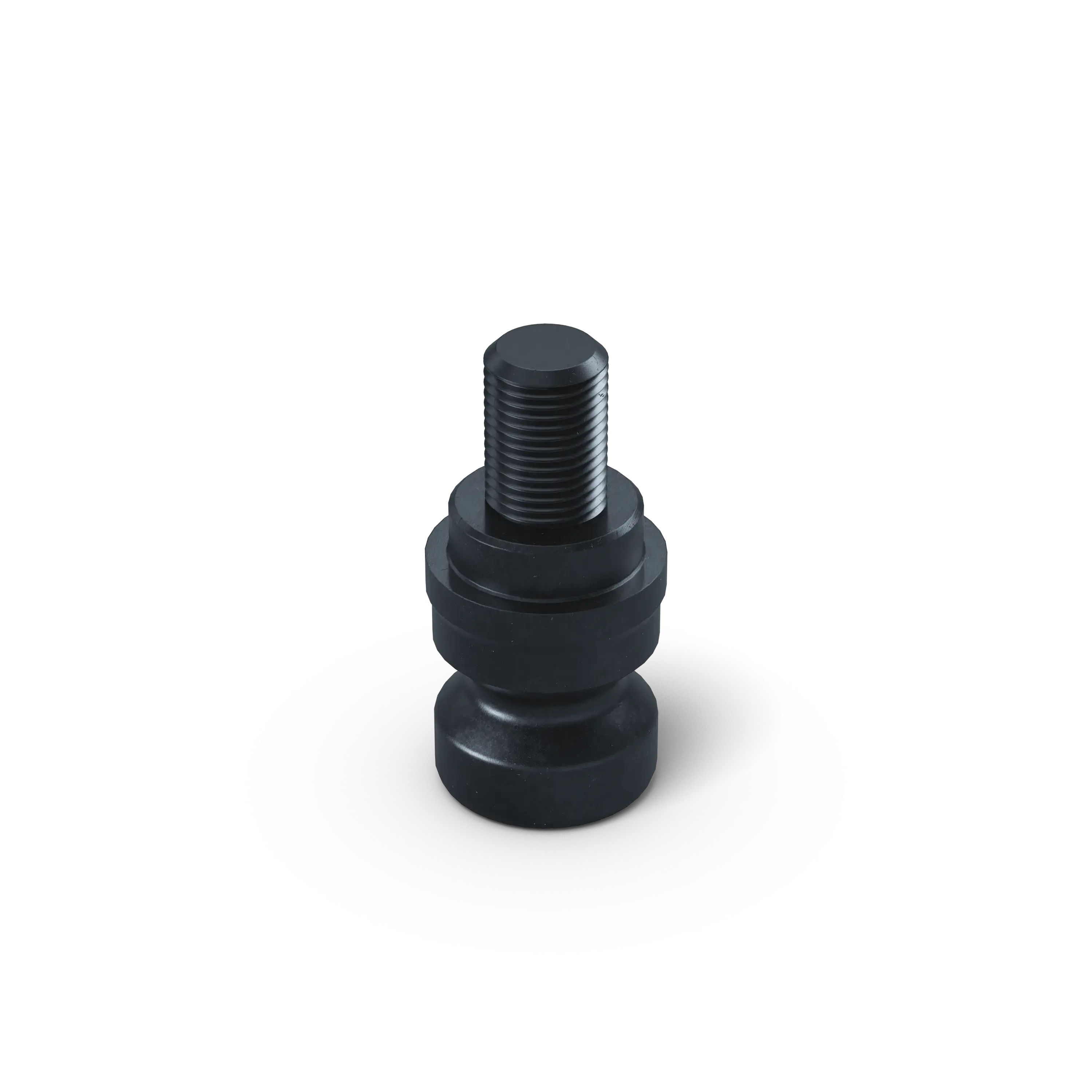

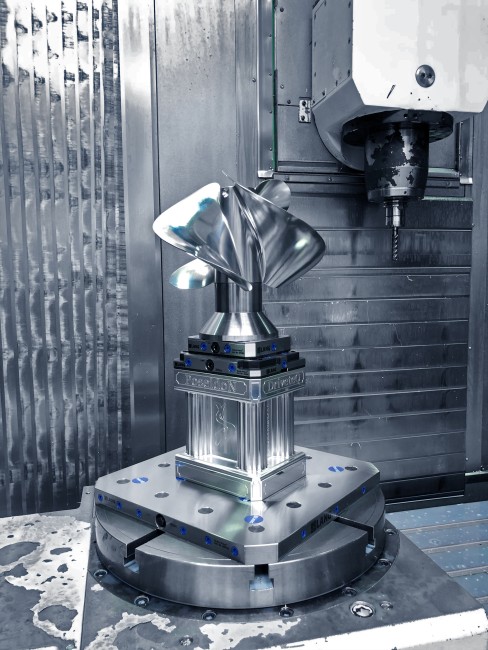

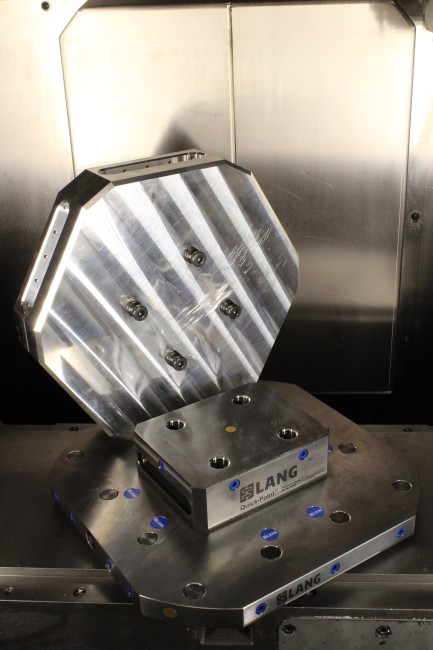

Clamping studs are the connecting element between the zero-point clamping system and the clamping device and are mounted in all LANG vises, Quick•Point® risers and clamping towers, among others. In combination with the zero-point holes, they guarantee highly accurate positioning and a fast set-up process. They also allow the direct clamping of workpieces, fixtures or conventional vises.
Diameter
20 mm (0.79")
For grid size
96
Threaded pin
M10
Weight
0.05 kg (0.11 lbs)
Material
Steel
注意：
Starting in June 2026, clamping studs can be ordered not only individually, but also in complete sets of 4, 10, and 20 pieces. These sets have their own part numbers and are listed as separate products. 45570-Q4, 45570-Q10, 45570-Q20.
供货范围：
1 x Clamping stud
1 x Threaded pin M 10
