Key data at a glance

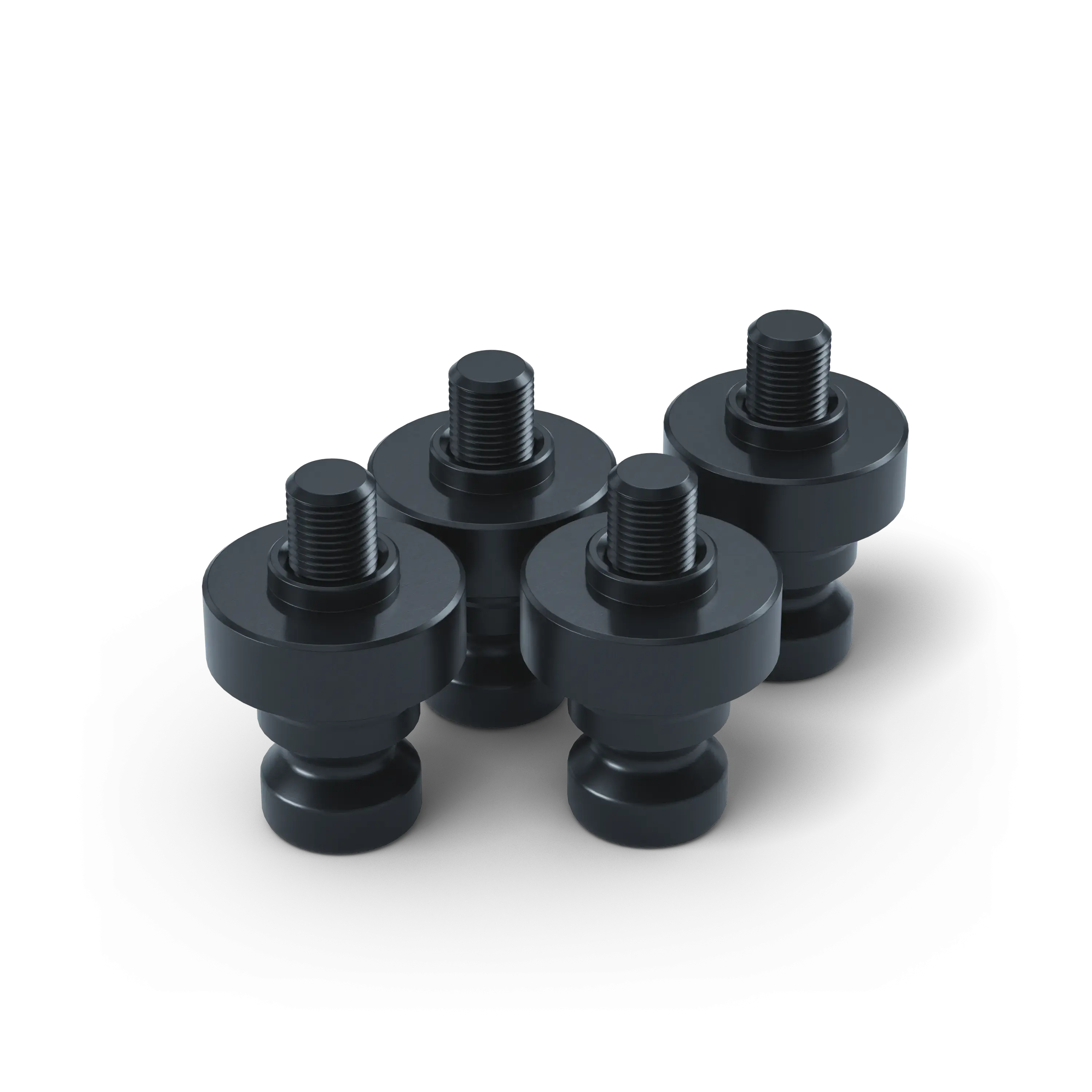

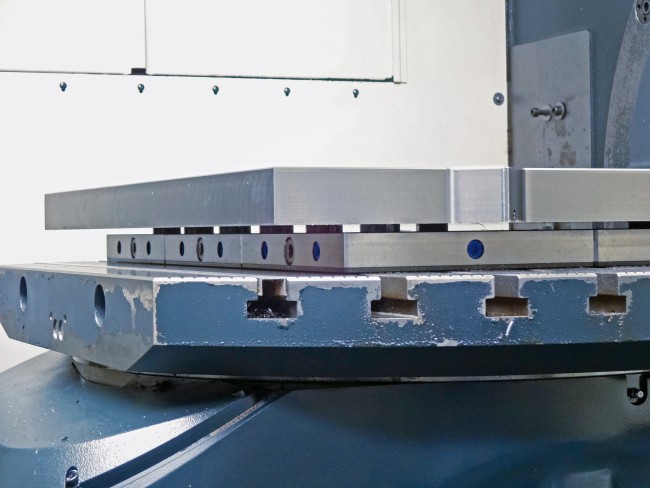

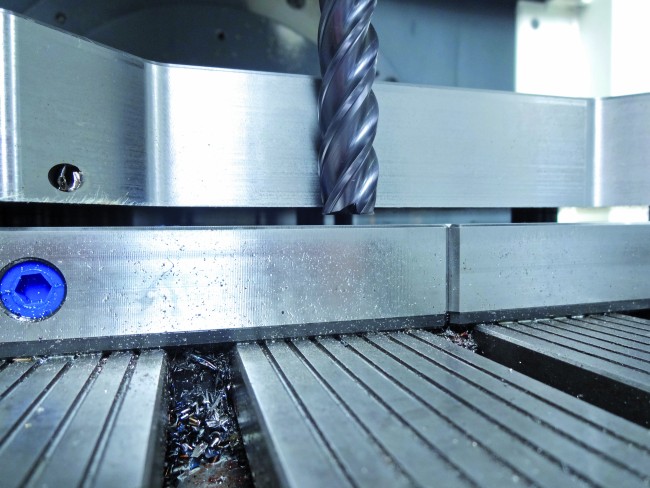

Spacer studs allow the direct clamping of workpieces in the Quick•Point® system, they allow for through holes without damaging the zero-point clamping system and offer improved accessibility when machining edges due to their spacing.

Diameter

20 mm (0.79")

Distance height

10 mm (0.39")

For grid size

Threaded pin

M10

Packaging Unit

4 Set

Weight

0.4 kg (0.88 lbs)

Material

Steel

供货范围：

4 x Spacer Studs

4 x Threaded pins M 10

4 x Bushing Ø 16 x 8

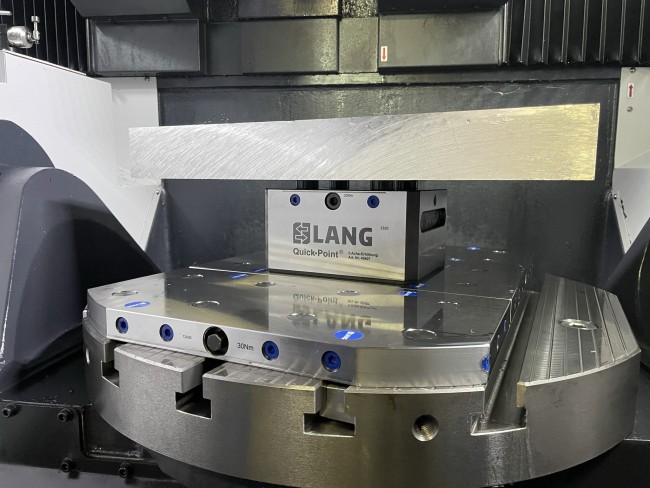

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
