Key data at a glance

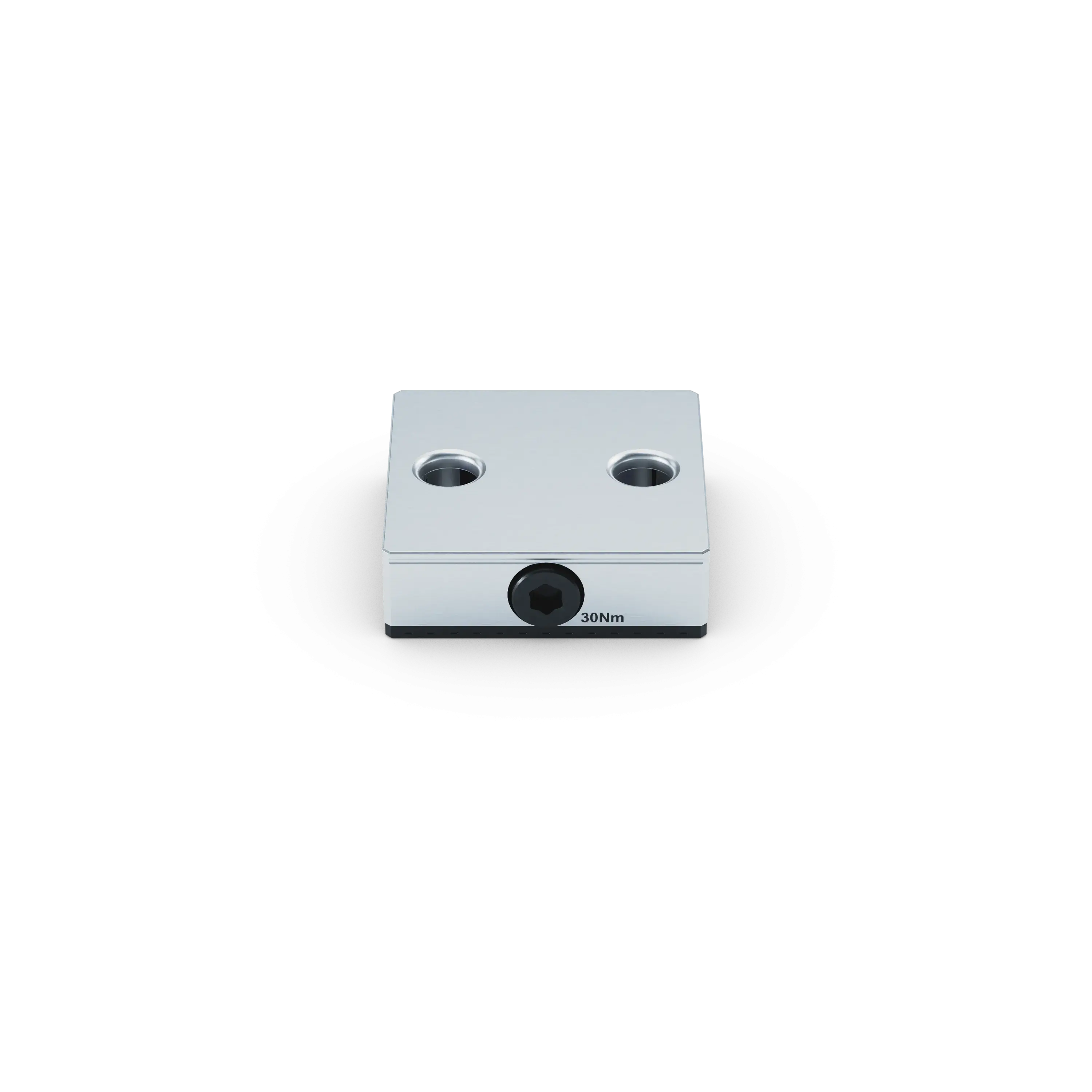

The Quick•Point duo2 grid plate is supplied without predefined mounting holes and can be modified in this respect according to needs and requirements. With just 85 x 85 mm, this zero point plate has the smallest footprint of all plates in the LANG Technik range. On its upper side, this grid plate has two zero point mounting holes to accommodate the new 5-Axis Vise Makro•Grip® micro.
Dimensions
85 x 85 x 27 mm (3.35" x 3.35" x 1.06")
Clamping edge included
No
Cross-plate grid possible
No
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
No, but possible (service)
Keyways
No, but not necessary
M5 indexing bores
No, but not necessary
Packaging Unit
1 Piece
Weight
1.4 kg (3.09 lbs)
Material
Steel
More features:
