Key data at a glance

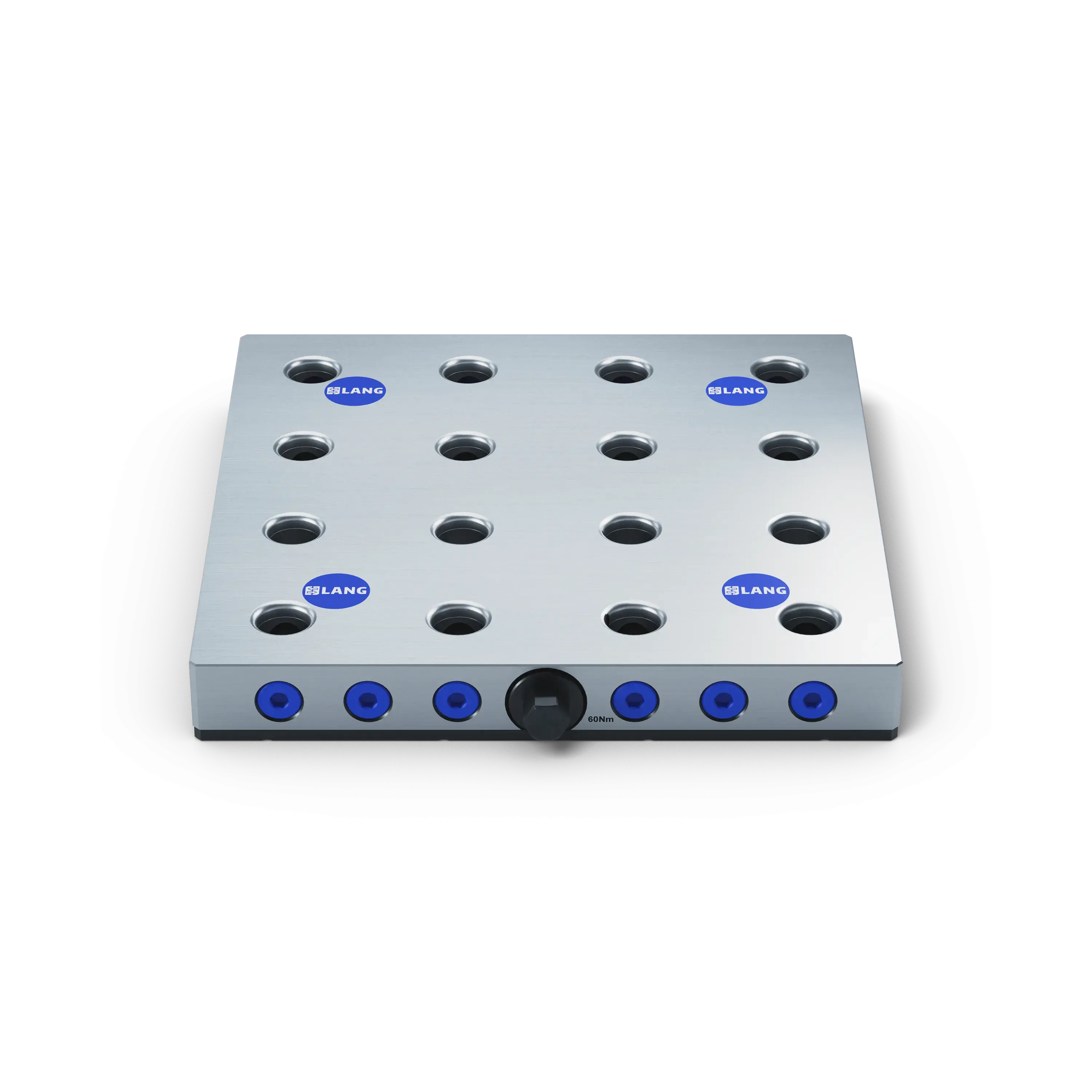

This 4-fold grid plate 52 has mounting holes for M8 screws with a spacing of 126 x 126 mm. It can, therefore, be used on machine tables with 63 mm slot spacing, as well as on machine tables with cross-shaped or star slots, such as Hermle, Matsuura or Hurco. With this multiple grid plate, four clamping positions are operated with only one screw.

Dimensions

208 x 208 x 27 mm (8.19" x 8.19" x 1.06")

Cross-plate grid possible

Ja

Clamping type

Multi clamping

Clamping units

4-fold

Mounting bores

for 63 mm groove spacing

Keyways

20 H7

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

8 kg (17.64 lbs)

Material

Steel

More features:

Torque

60 Nm

Maximum allowed torque

Vise size

46 Micro / 46 / 77

Size of compatible vise

Quick-Lock applicable

Yes

The fast actuation system can be attached

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)

4 x

45052-30: Cover Plugs, ø 16 mm, for 52 mm spacing, steel (4 pcs.)

1 x

45000-30: Cover Plug Remover,

4 x Socket head screw M8 x 30

Benefits Quick•Point® Multi Plates

Ease of operation Several zero-point positions are actuated with one tightening screw
Expandability Continuous zero-point grid allows across 2 or 4 plates
Utilization of space Complete utilization of the machine table with a multitude of zero-point positions

Quick•Point® Zero-Point Clamping System

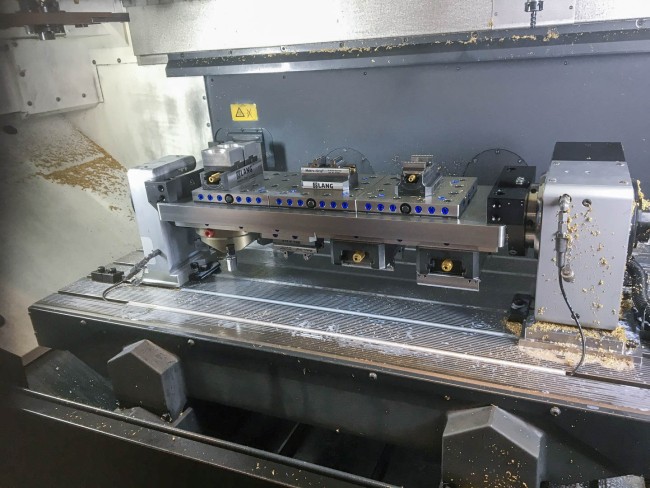

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
