Key data at a glance

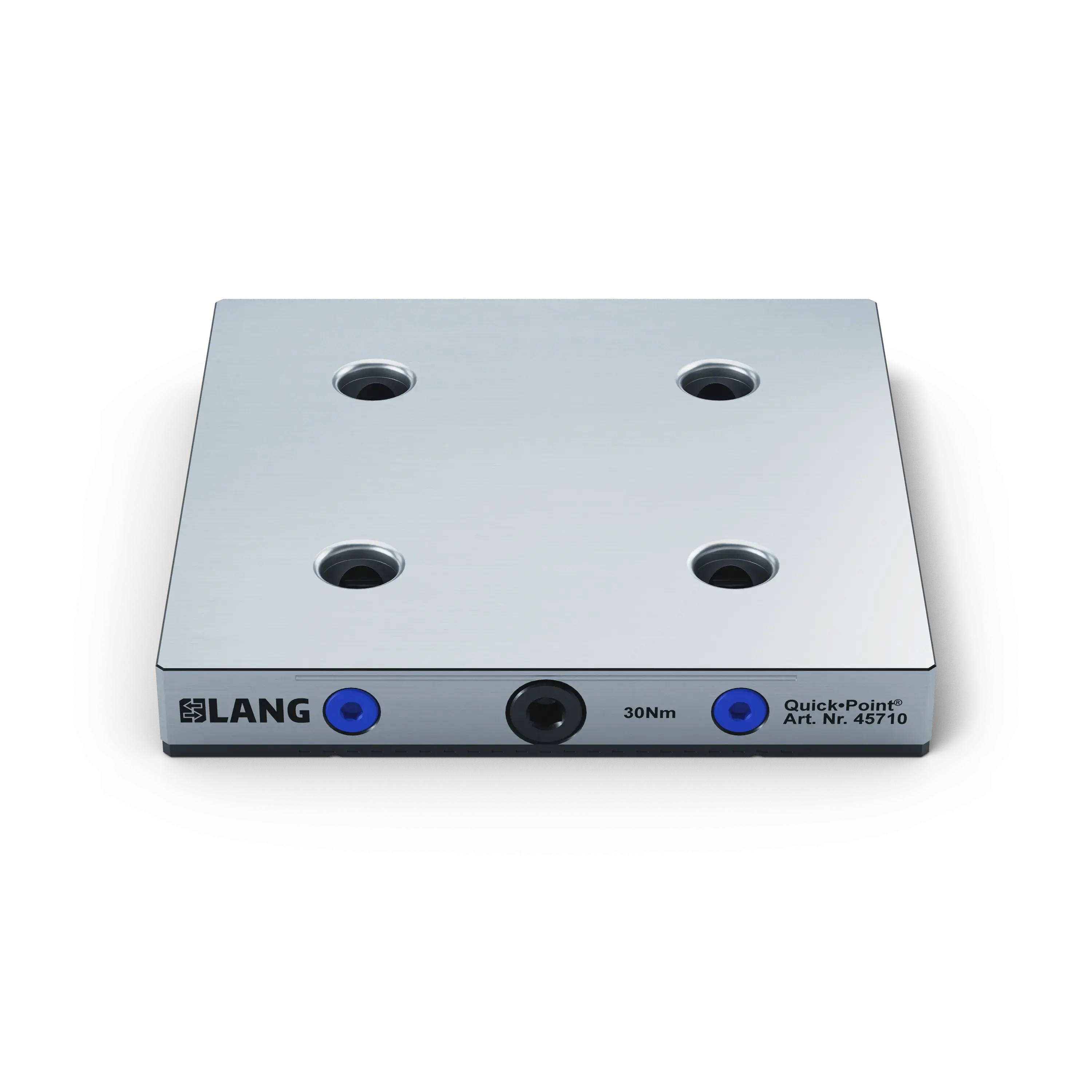

This Quick•Point® 96 grid plate is a customisable version for which mounting holes and fits can be made according to the requirements of the machine table. Lining up two or more of these plates with an edge dimension of 192 x 192 mm results in a continuous 96 mm zero-point grid system across the plates.

Dimensions

192 x 192 x 27 mm (7.56" x 7.56" x 1.06")

Clamping edge included

No

Cross-plate grid possible

Yes

Clamping type

Single clamping

Clamping units

1-fold

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

7.3 kg (16.09 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

125

Size of compatible vise

Quick-Lock applicable

Yes

The fast actuation system can be attached

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

1 x

45096-20: Cover Plugs, ø 20 mm, for 96 mm spacing, plastic (4 pcs.)

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available
Simple Operation Easy handling thanks to the simple, mechanical functional principle
Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.

Learn all about the benefits and functionality of our Quick•Point® zero point clamping system.

Discover now

Application pictures

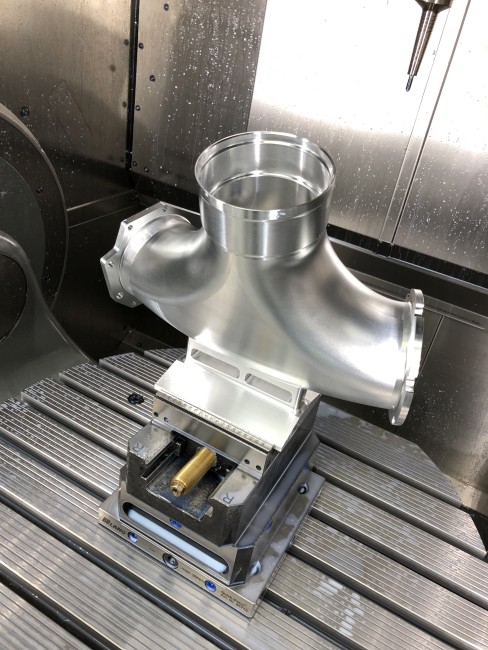

L´étau 5 axes positionné avec précision sur une plaque point zéro de LANG Technik

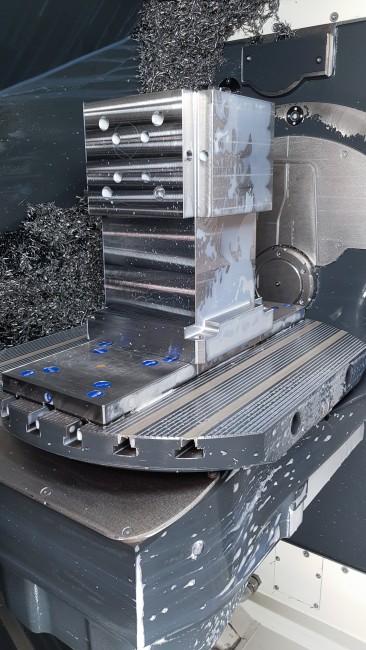

Avec le dispositif de serrage à point zéro de LANG Technik les opérateurs bénéficient de des gains de temps importants

Application videos

下载

Data sheet

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.

Custom corner radius

Upon request, we can adjust the zero-point system (multi grid or individual grid plates in a row) to round tables of the machine tool by cutting off the corners. A clean solution that avoids in most cases a protrusion of the zero-point plates to the machine table.
