Key data at a glance

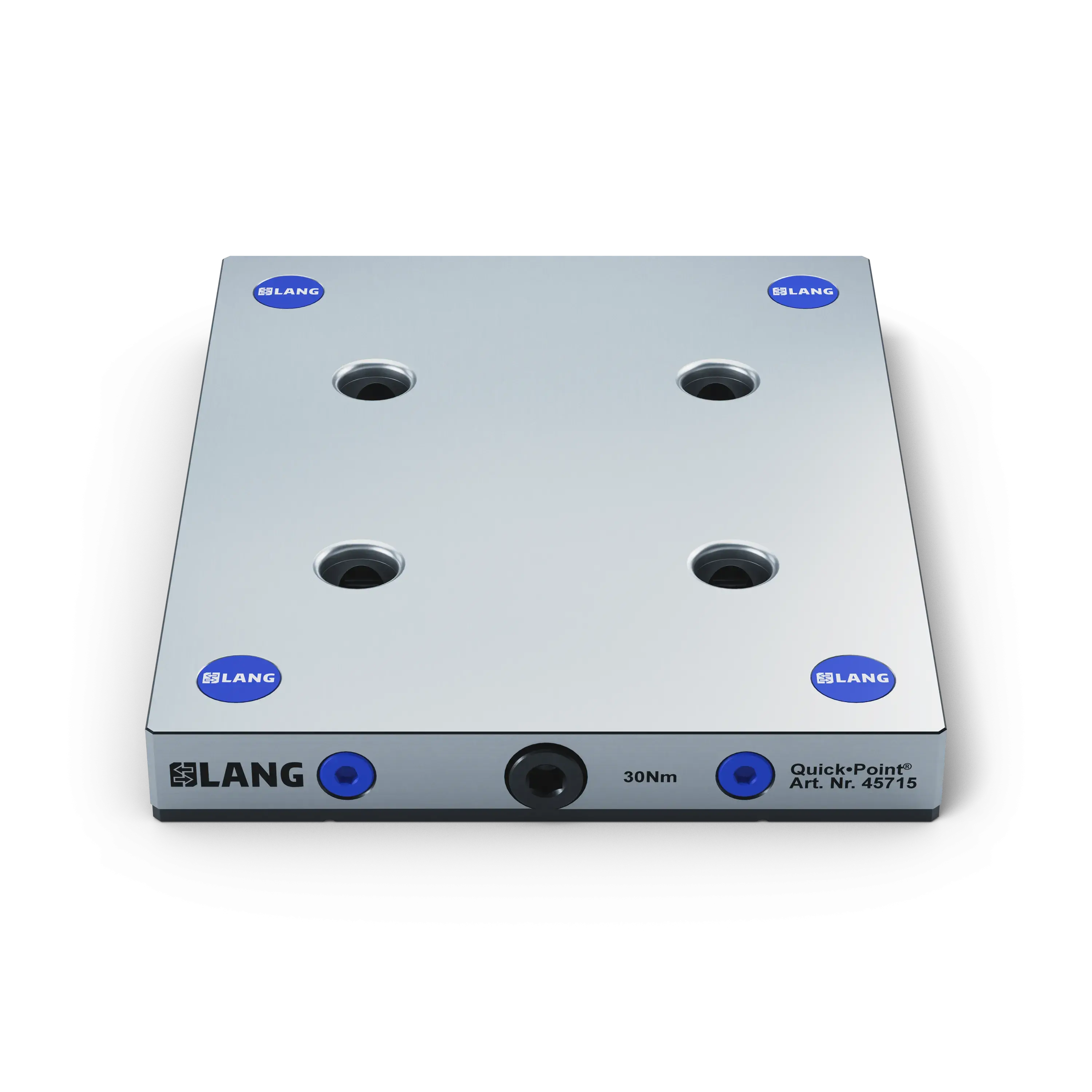

This zero-point plate variant has mounting holes spaced at 150 x 200 mm. This “extended” grid plate with edge dimensions of 192 x 246 mm is thus a suitable solution for machine tables with a slot spacing of 100 mm, as is common, for example, with the machine manufacturers Grob or Mazak. By joining several of these plates in an x-axis direction, a continuous 96 mm grid can be created, which allows cross-plate clamping.
Dimensions
246 x 192 x 27 mm (9.69" x 7.56" x 1.06")
Clamping edge included
No
Cross-plate grid possible
Yes
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 100 mm groove spacing
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
9.2 kg (20.28 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
