Key data at a glance

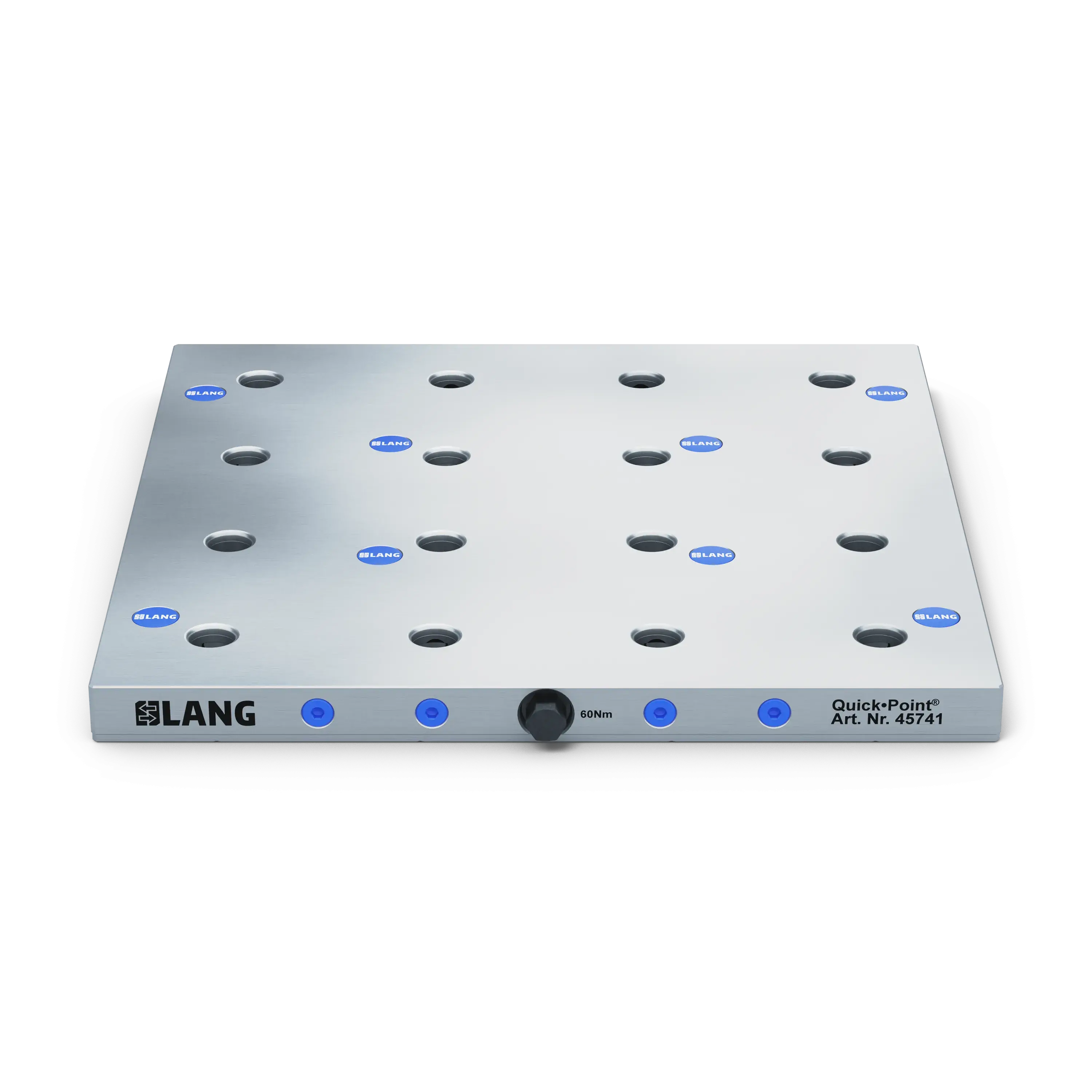

The 4-fold grid plate 96 can be described as THE “base plate” of incomparable quality. And not without good reason! Thanks to the multitude of locating options, its versatility and the expansion possibilities it has to offer, it is often the first choice when users are just starting out with the zero-point clamping system. Its flexibility keeps all options open for future, perhaps still unknown applications.
Dimensions
384 x 384 x 27 mm (15.12" x 15.12" x 1.06")
Cross-plate grid possible
Ja
Clamping type
Multi clamping
Clamping units
4-fold
Mounting bores
for 63 mm groove spacing
Keyways
20 H7 / No, but possible (service)
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
28.9 kg (63.71 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point Plate
8 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
2 x ring nut
