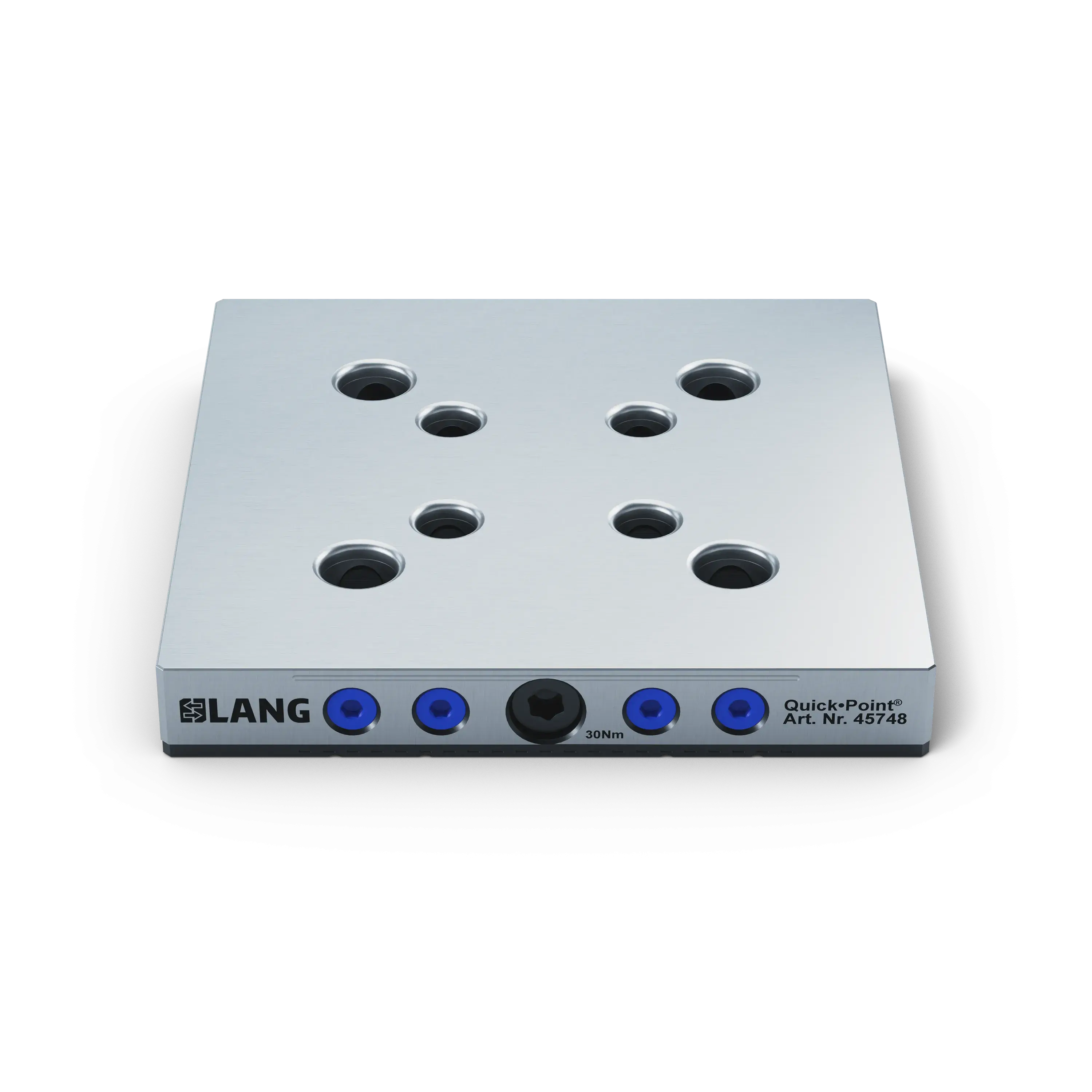

Quick•Point® 52/96, Combi Grid Plate

192 x 192 x 27 mm, without mounting bores

商品编号：1874574800

Key data at a glance

Die Quick•Point® 52 / 96 Kombi-Rasterplatte vereint die beiden Rastermaße 52 mm und 96 mm und ist somit in der Lage, die komplette Bandbreite an einsatzbaren LANG Spannmitteln aufzunehmen. Diese Variante ohne vordefinierte Befestigungsbohrungen und Passungen kann gemäß der Ausführung des Maschinentisches individuell nach Kundenwunsch angepasst werden. Durch Aneinanderreihen von zwei oder mehreren dieser Kombi-Platten lässt sich zudem ein plattenübergreifendes, durchgängiges 96 mm Nullpunktraster realisieren.

Dimensions

192 x 192 x 27 mm (7.56" x 7.56" x 1.06")

Clamping type

Single clamping

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

6.8 kg (14.99 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

46 Micro / 46 / 77 / 125

Size of compatible vise

Clamping stud size

16 mm / 20 mm
(0.63" / 0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

1 x

45096-20: Cover Plugs, ø 20 mm, for 96 mm spacing, plastic (4 pcs.)

1 x

45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing, plastic (4 pcs.)

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.

Custom corner radius

Upon request, we can adjust the zero-point system (multi grid or individual grid plates in a row) to round tables of the machine tool by cutting off the corners. A clean solution that avoids in most cases a protrusion of the zero-point plates to the machine table.
