Key data at a glance

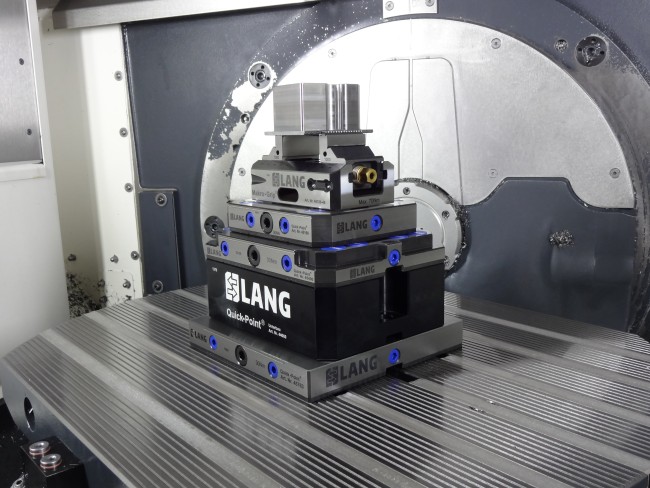

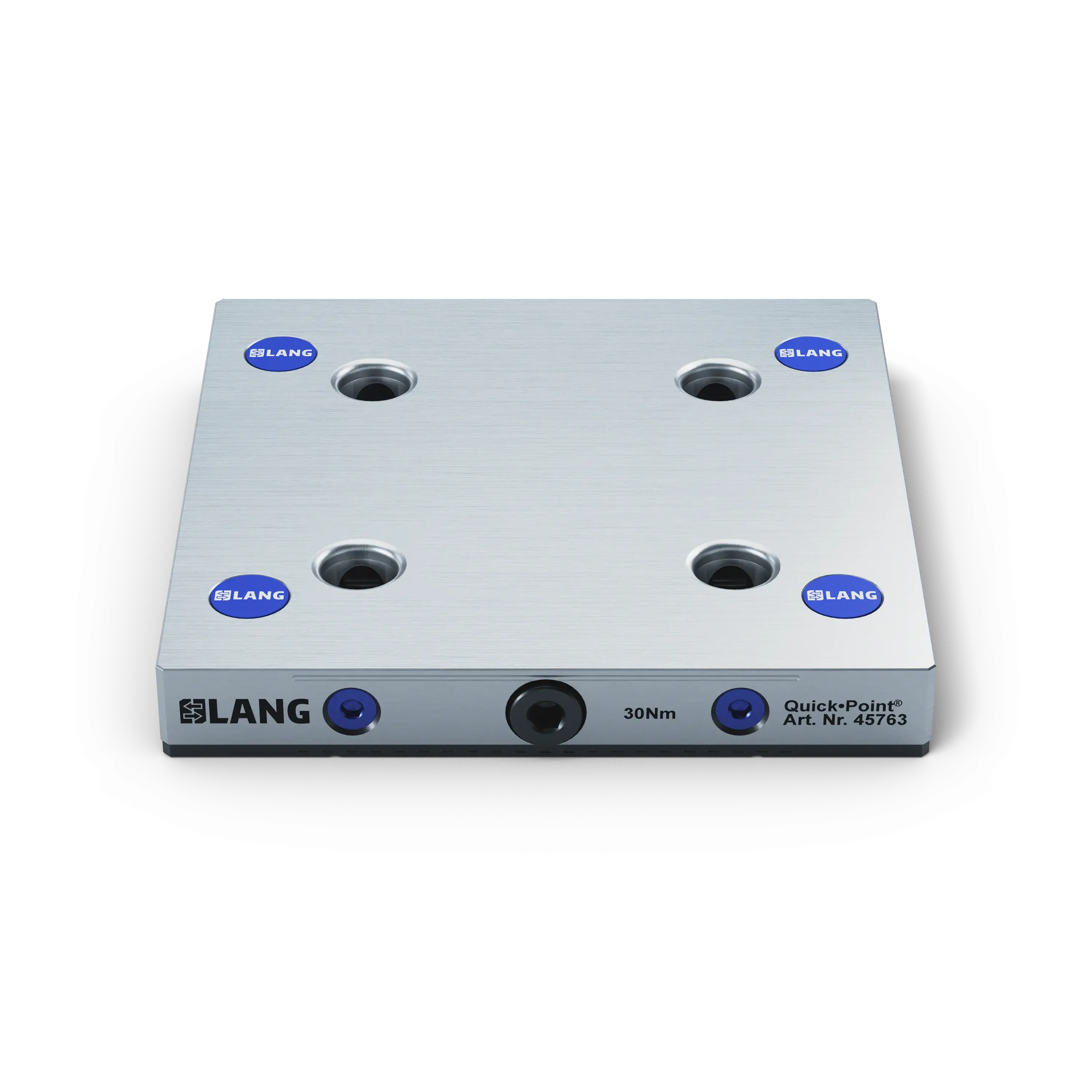

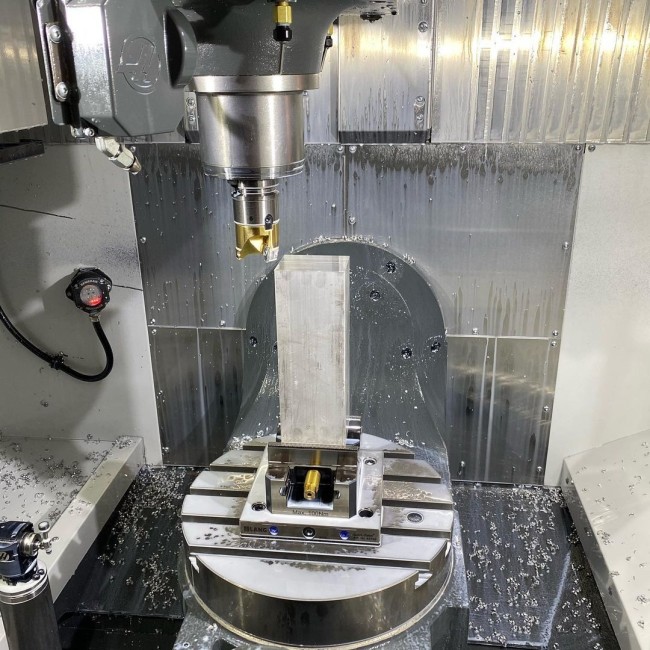

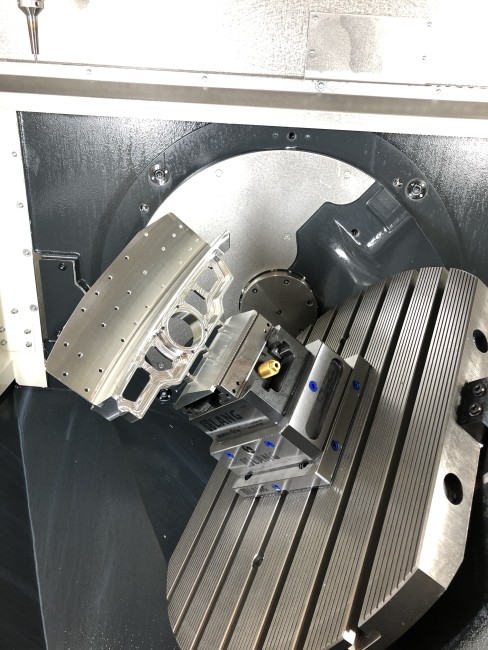

This grid plate is predestined for machine tables with a slot spacing of 63 mm. Due to its external dimensions of 192 x 192 mm, the operator is able to create a continuous 96 mm zero-point grid system by lining up several of these plates and placing the workholding device across the plates. Likewise, this plate can be combined with multiple grid plates, such as the 2- or 4-fold grid plate.
Dimensions
192 x 192 x 27 mm (7.56" x 7.56" x 1.06")
Clamping edge included
No
Cross-plate grid possible
Yes
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 63 mm groove spacing
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
7.1 kg (15.65 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
