Key data at a glance

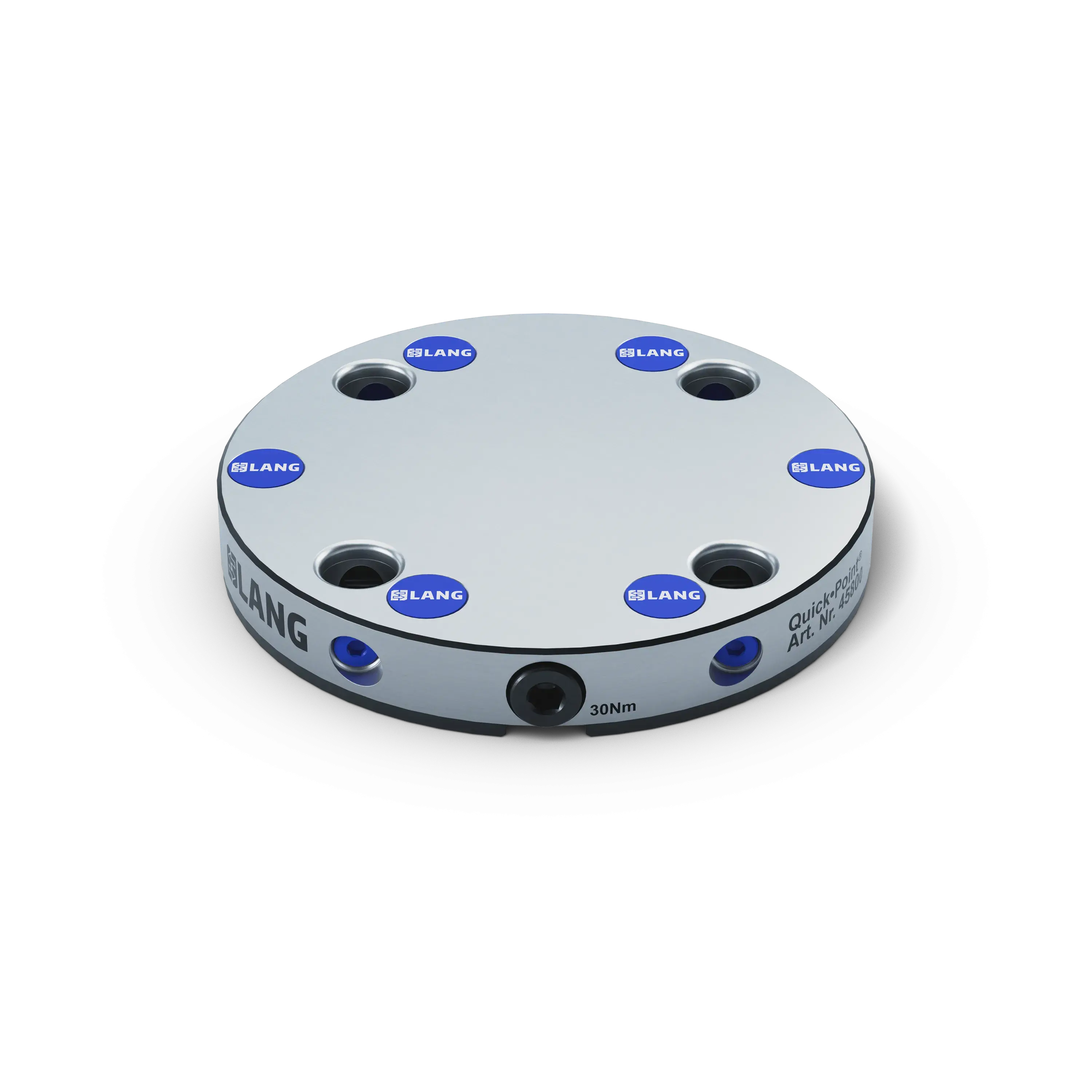

The smallest of all Quick•Point® 96 round plates has a total of six mounting holes. Four holes that can be used for machine tables with 63 mm slot spacing and additionally two further holes in line, which makes this zero-point plate universally applicable for any other slot table variant. Due to its matching mounting holes, it is the logical and only option for the round Quick•Point® aluminium riser.
Dimensions
⌀ 176 x 27 mm (6.93" x 1.06")
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 63 mm groove spacing
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
4.5 kg (9.92 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point Plate
6 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
