Key data at a glance

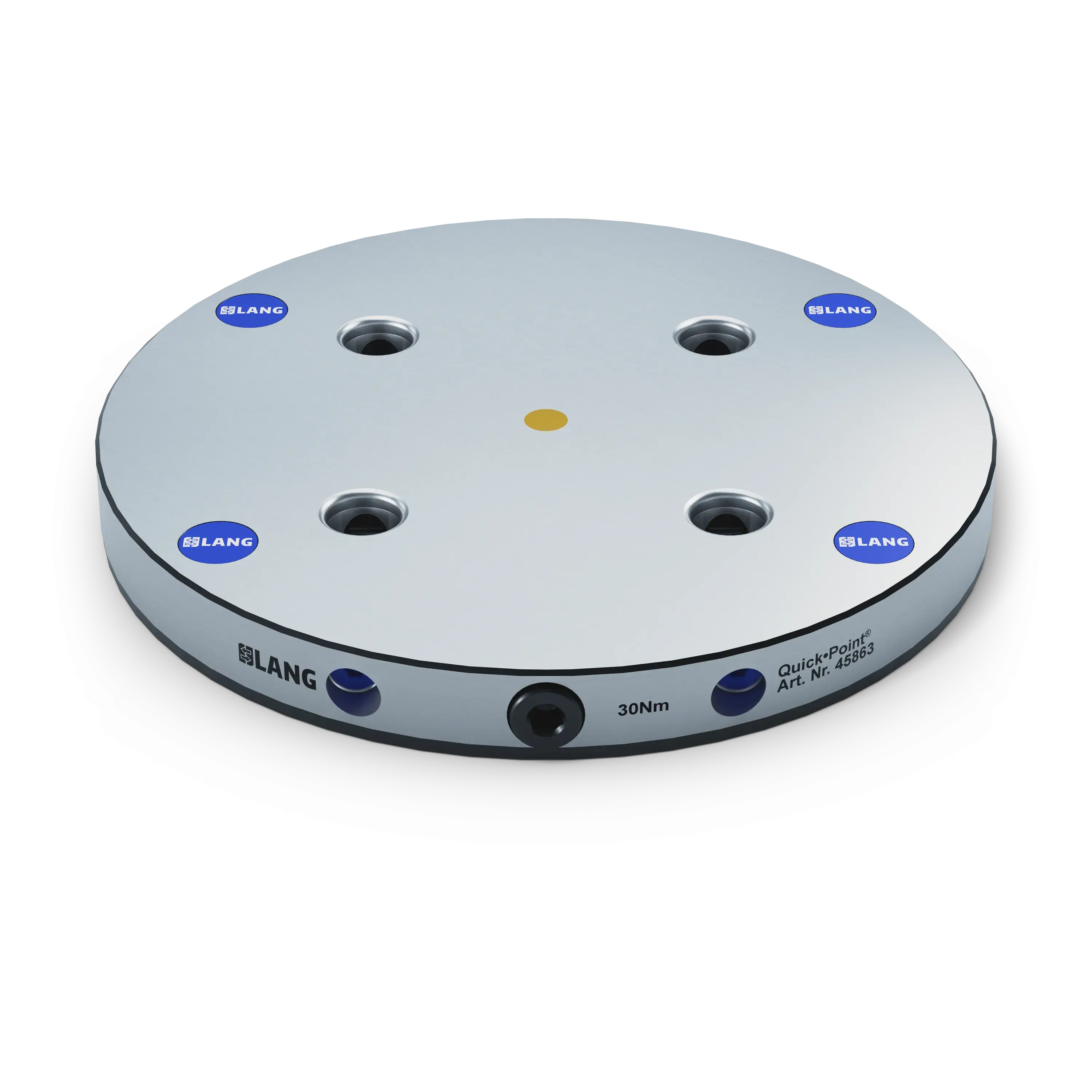

This round plate is a visually attractive solution for zero-point clamping on round machine tables with a slot spacing of 63 mm. With a diameter of 246 mm, it can act flush as a base for a round Quick•Point® automation zero-point device for RoboTrex 96, for example.
Dimensions
⌀ 246 x 27 mm (9.69" x 1.06")
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 63 mm groove spacing
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
9.2 kg (20.28 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
