Key data at a glance

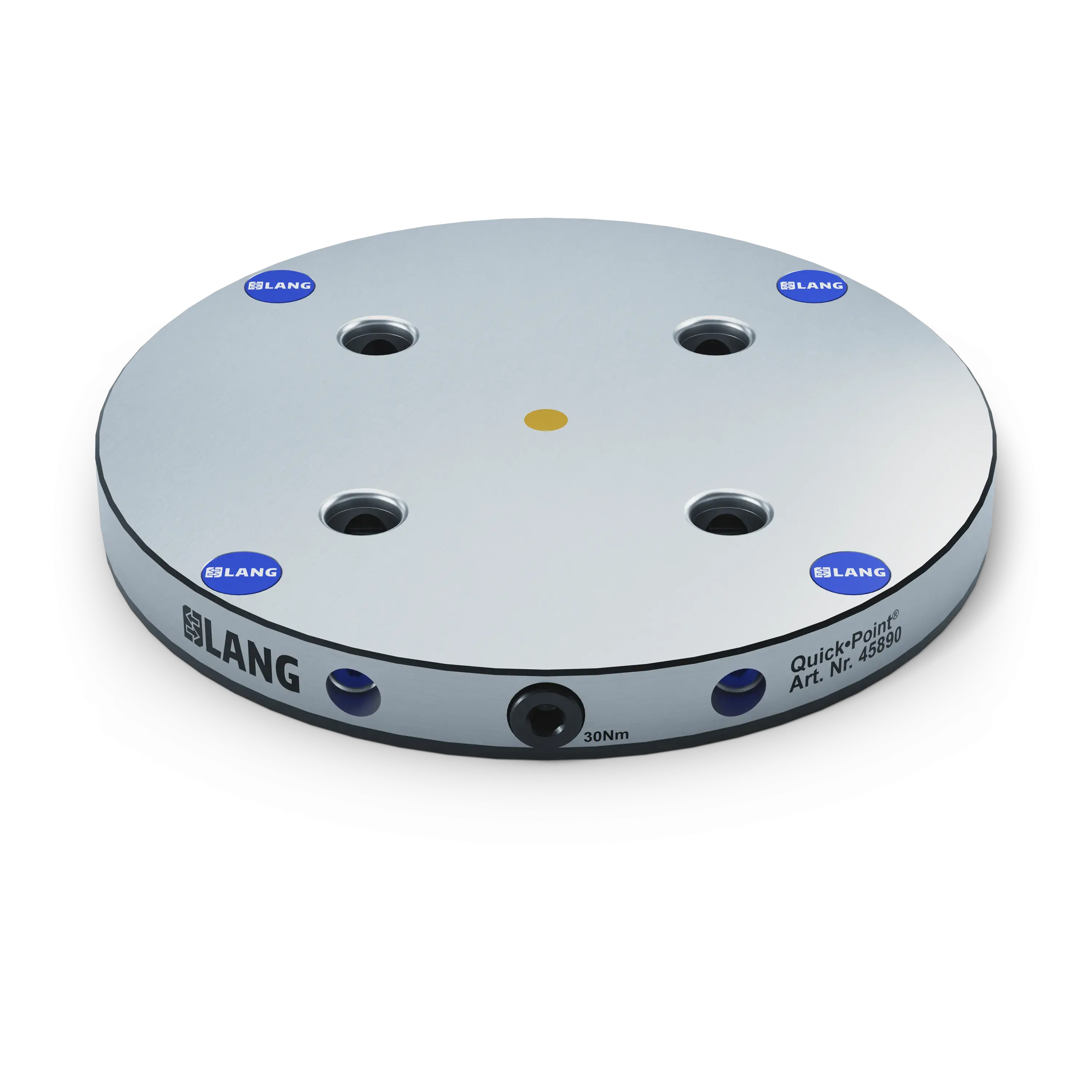

The largest round Quick•Point® single plate is prepared for mounting on machine tables with cross-shaped slots, such as Matsuura or Hermle, thanks to its mounting holes (4x 90° / radius 110 mm). On its underside, there are two keyways with 14H7 and 18H7.

Dimensions

⌀ 246 x 27 mm (9.69" x 1.06")

Clamping type

Single clamping

Clamping units

1-fold

Mounting bores

for tables with cross groove (4*90°)

Keyways

14 H7 / 18 H7

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

9.2 kg (20.28 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

125

Size of compatible vise

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)

1 x

45096-20: Cover Plugs, ø 20 mm, for 96 mm spacing, plastic (4 pcs.)

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available
Simple Operation Easy handling thanks to the simple, mechanical functional principle
Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

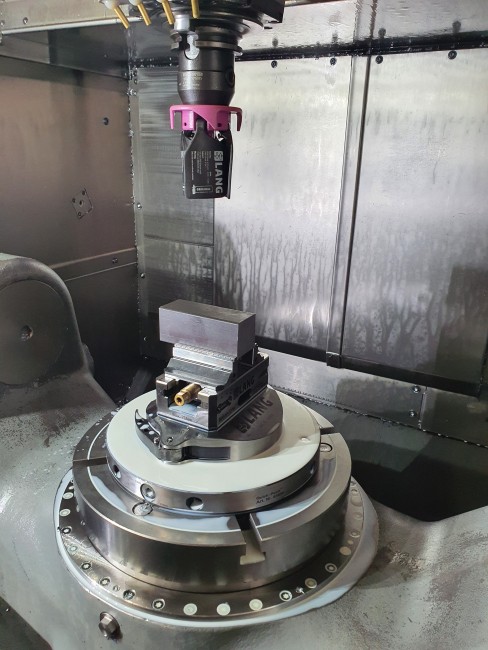

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
