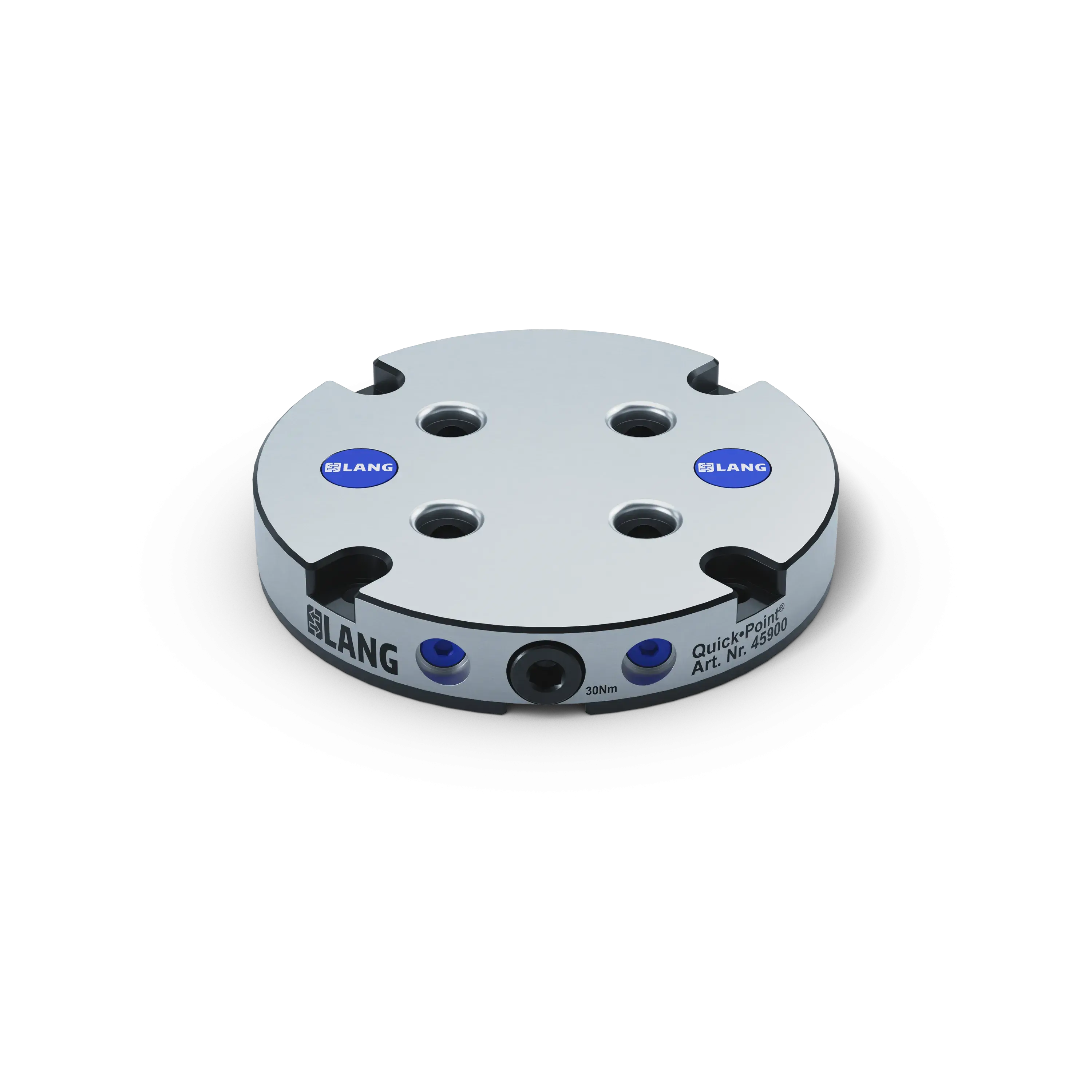

Quick•Point® 52, Round Plate-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

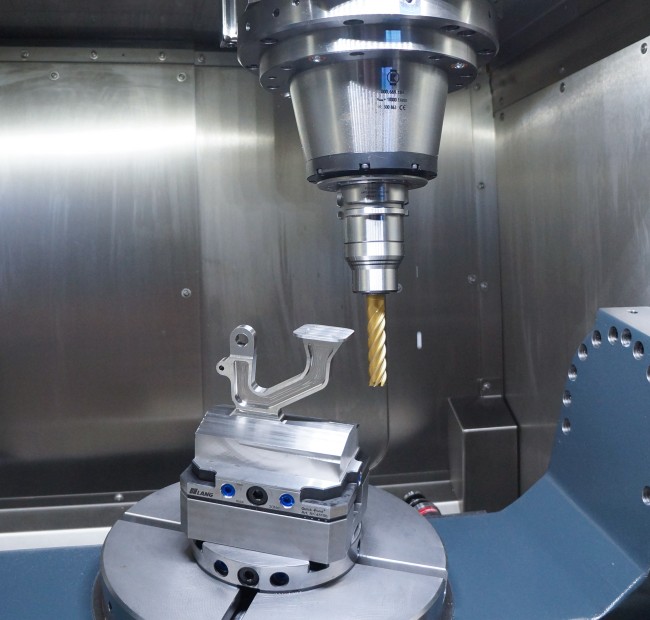

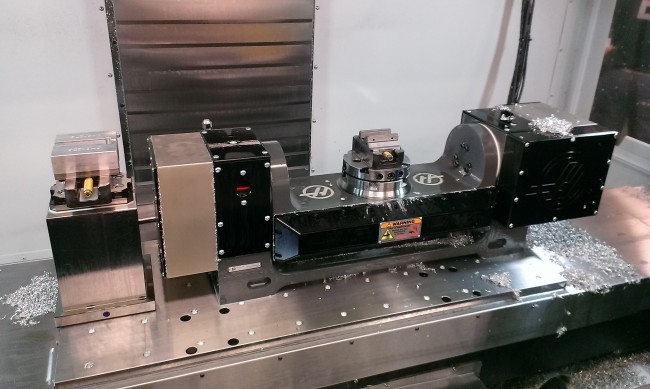

This Quick•Point® 52 variant with a diameter of 157 mm can be used flexibly on 4th axis applications, slot tables and machine tables with grid holes thanks to its two mounting holes at 100 mm intervals. In addition, its M 10 thread offers the possibility of mounting Quick•Point® 96 clamping studs, in order to be converted into a receiver plate.

Dimensions

⌀ 157 x 27 mm (6.18" x 1.06")

Clamping type

Single clamping

Clamping units

1-fold

Mounting bores

at 100 mm distance

Keyways

20 H7

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

3.4 kg (7.5 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

46 Micro / 46 / 77

Size of compatible vise

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

2 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)

1 x

45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing, plastic (4 pcs.)

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available
Simple Operation Easy handling thanks to the simple, mechanical functional principle
Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
