Key data at a glance

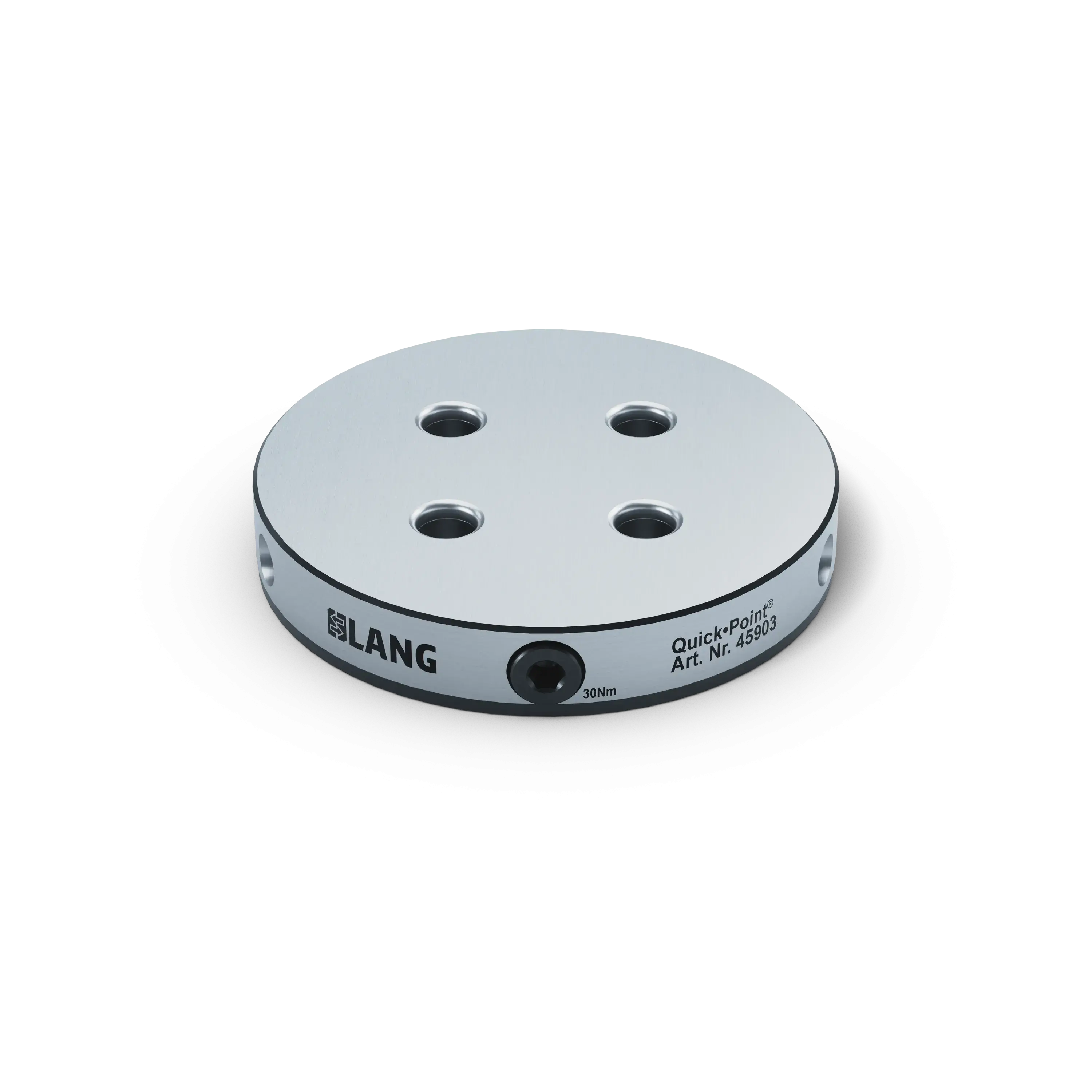

The special arrangement of the clamping mechanism inside the plate allows not only the insertion of mounting holes and keyways, but also an individual center hole up to Ø 38 mm, which offers a possibility for rotary joints. This zero-point plate is clamped via 2 opposite clamping screws.
Dimensions
⌀ 157 x 27 mm (6.18" x 1.06")
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
No, but possible (service)
Keyways
No, not possible
M5 indexing bores
No, but not necessary
Packaging Unit
1 Piece
Weight
3.7 kg (8.16 lbs)
Material
Steel
More features:
