Key data at a glance

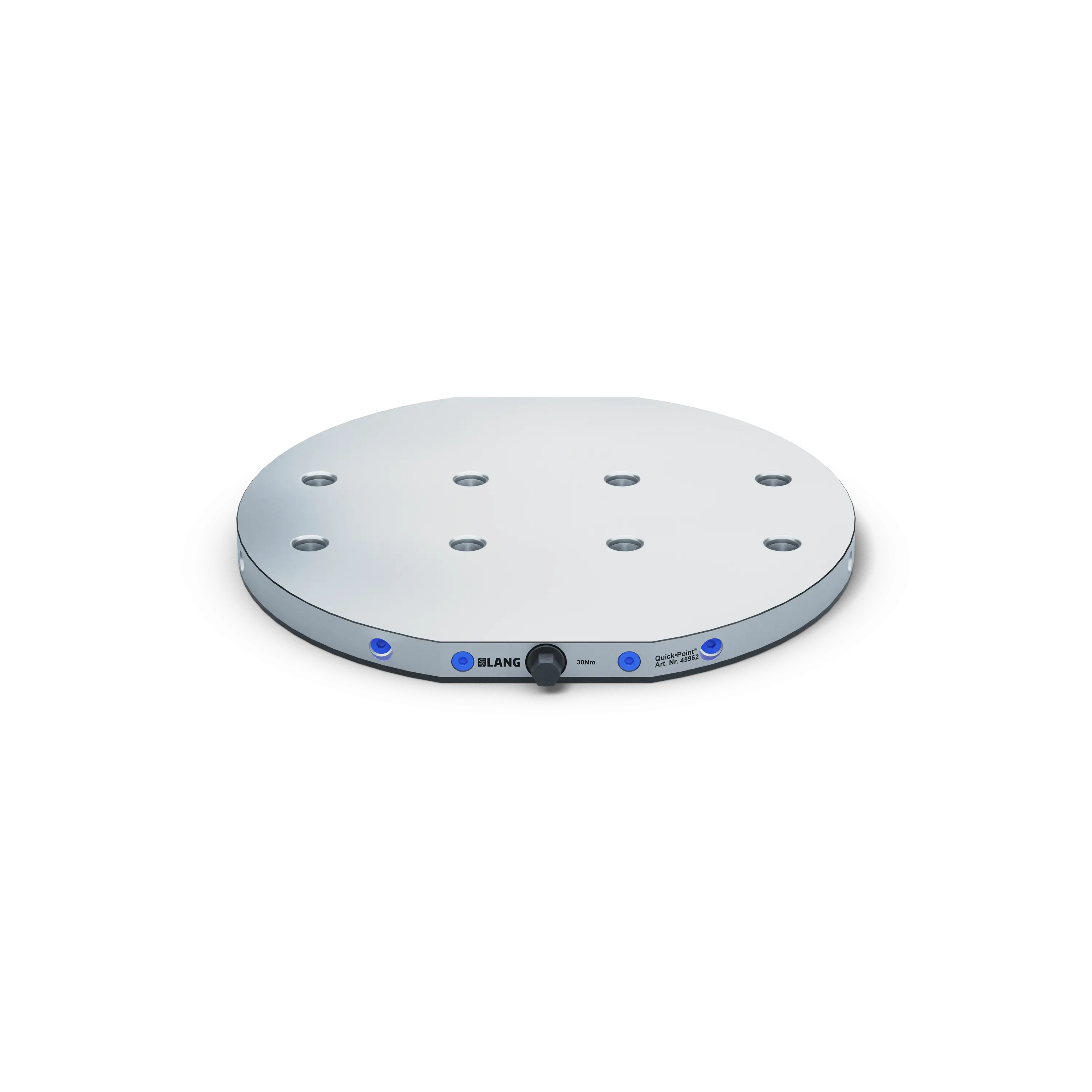

The round 2-fold grid plate 96 is suitable for equipping round machine tables of a medium size with a zero-point clamping system over as large an area as possible. One or two clamping devises can be clamped side by side in it, and it also fits well visually with round machine tables. On the side where the clamping screw is located, the 2-fold plate has a straight surface, that allows the use of the Quick-Lock fastener.

Dimensions

⌀ 384 x 27 mm (15.12" x 1.06")

Clamping type

Multi clamping

Clamping units

2-fold

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

22.8 kg (50.27 lbs)

Material

Steel

More features:

Torque

30 Nm

Maximum allowed torque

Vise size

125

Size of compatible vise

Quick-Lock applicable

Yes

The fast actuation system can be attached

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point Plate

2 x

45096-30: Cover Plugs, ø 20 mm, for 96 mm spacing , steel (4 pcs.)

1 x

45000-30: Cover Plug Remover,

2 x ring nut

Benefits Quick•Point® Multi Plates, round

Ease of operation Several zero-point positions are actuated with one tightening screw
Simple Operation Easy handling thanks to the simple, mechanical functional principle
Utilization of space Complete utilization of the machine table with a multitude of zero-point positions

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.

Learn all about the benefits and functionality of our Quick•Point® zero point clamping system.

Discover now

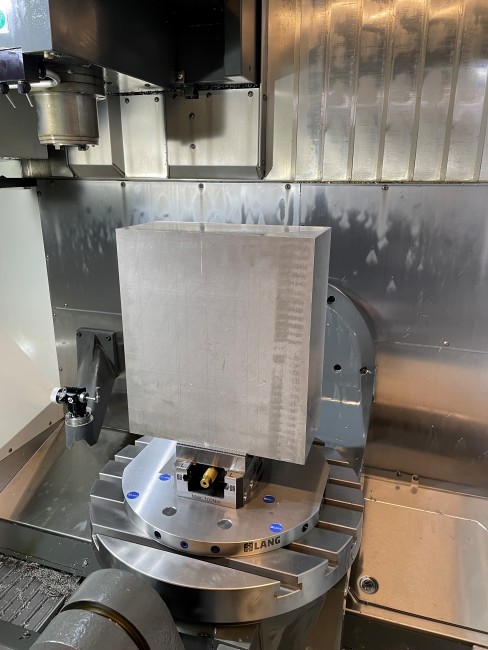

Application pictures

Bildquelle / Source: Yamazaki Mazak Central Europe Sp. z.o.o.

Bildquelle / Fonte: EL-Bauteile Handelsgesellschaft mbH

下载

Data sheet

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.
