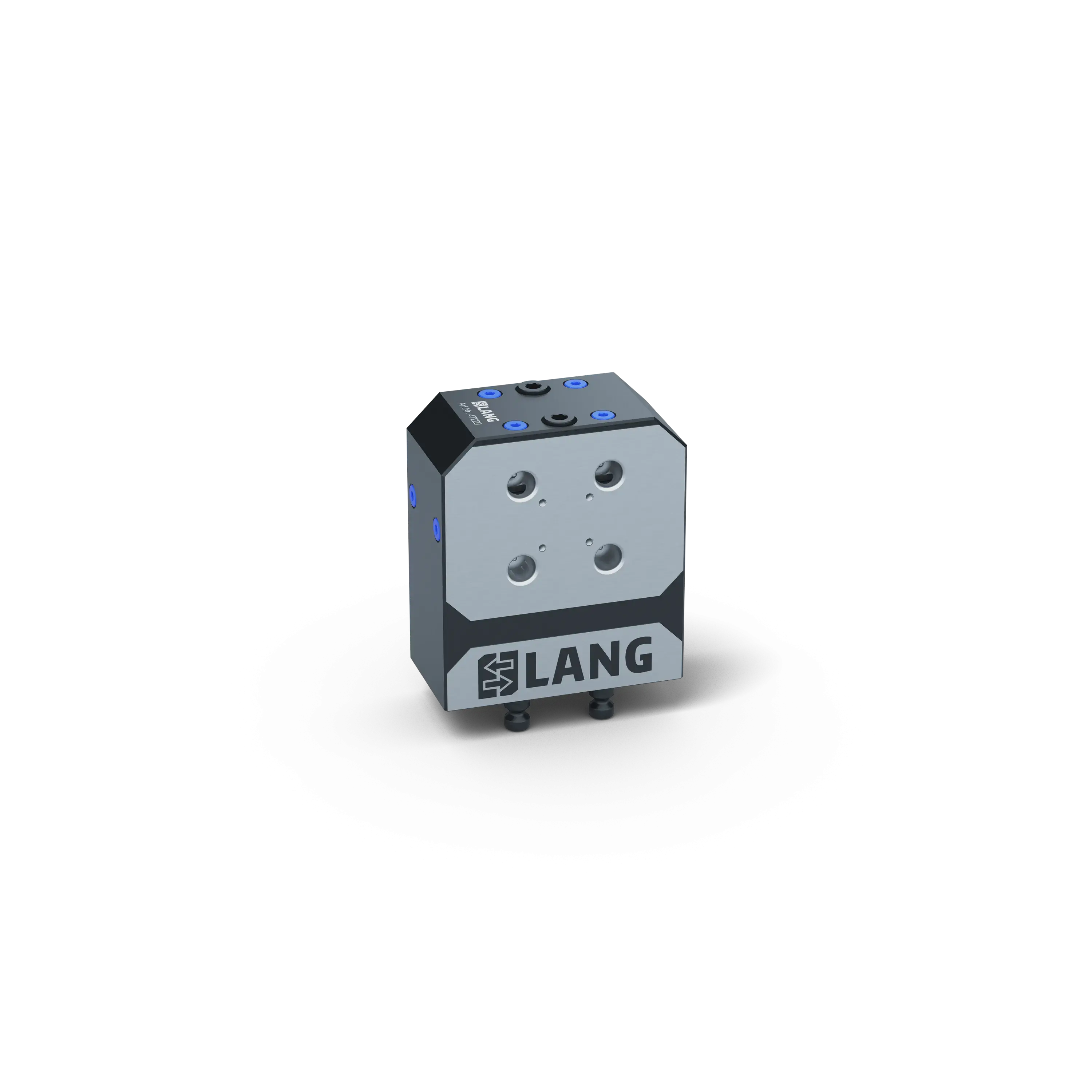

Quick•Point® 52, Twin Base-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

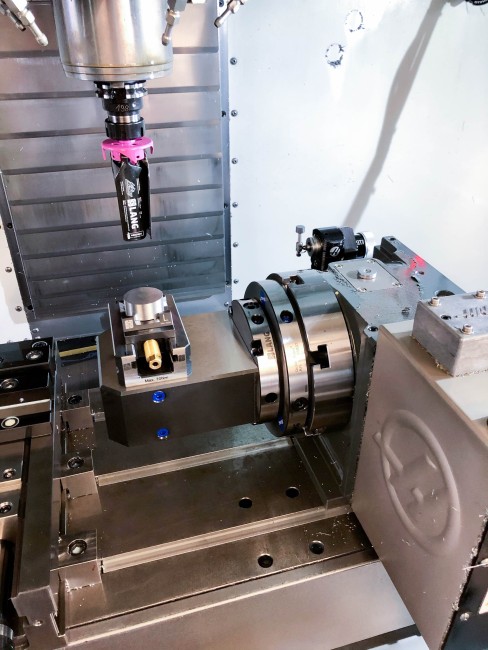

The hardened and ground twin base is ideal for the manual, 5-sided machining of workpieces with 3- or 4 axis machines, as the workpiece can be rotated together with the clamping device by 4x 90° in the zero-point holes of the twin base with repeat accuracy and process reliability.

Dimensions

146 x 76 x 168 mm (5.75" x 2.99" x 6.61")

Type of machine

VMC / HMC

Packaging Unit

1 Piece

Weight

13.8 kg (30.42 lbs)

Material

Steel

More features:

Vise size

46 Micro / 46 / 77

Size of compatible vise

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

注意：

Important note! Altered design, but technically identical to old version (Product Image shows the new design). Clearance sale of old version before new version is delivered.

供货范围：

1 x Twin Base

4 x

45270: Clamping Studs, ø 16 mm, for 52 mm bolt distance

2 x

45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing, plastic (4 pcs.)

Benefits Quick•Point® Twin Base

Machining options 5-face machining with 3 or 4 axes
Increase of machining hours Less downtime and tool changes thanks to multiple clamping
Simple Operation Easy handling thanks to the simple, mechanical functional principle

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
