Key data at a glance

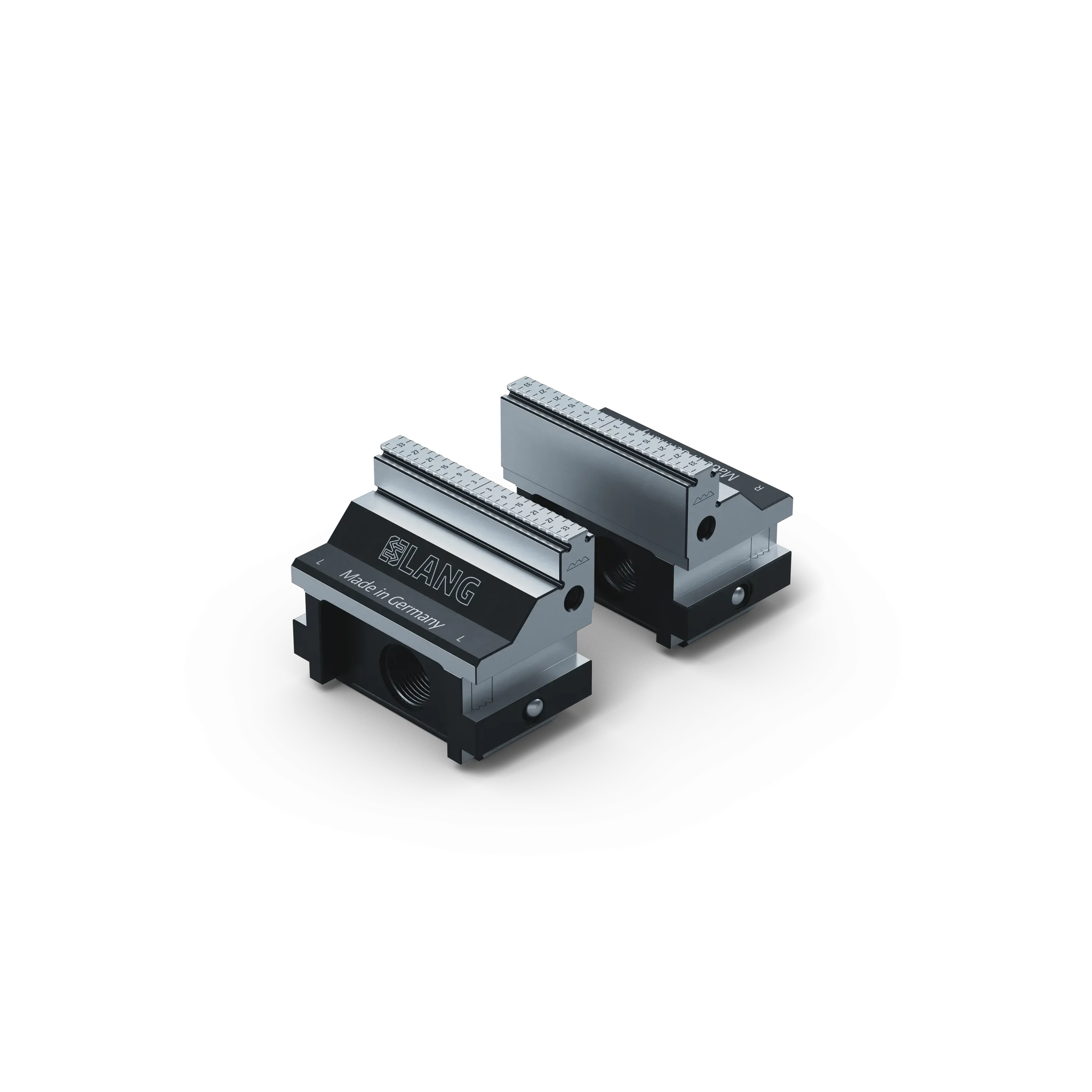

The Makro•Grip® FS 125 replacement jaws, milled from solid material, have a width of 77 mm and fit all LANG vise types with a base body width of 125 mm. Thanks to their full serration on both sides, the replacement jaws can be rotated to achieve a clamping range that corresponds to almost the entire length of the base body. This ensures optimum accessibility to the workpiece. Pre-stamped raw material can be held by form-fit in the serration of the clamping jaws with a clamping depth of 3 mm. In addition, the spare jaws offer smooth clamping possibilities for a second operation.
Dimensions
Jaw width: 77 mm (3.03")
Workpiece shape
cubic
Packaging Unit
1 Pair
Weight
1.97 kg (4.34 lbs)
Material
Steel
