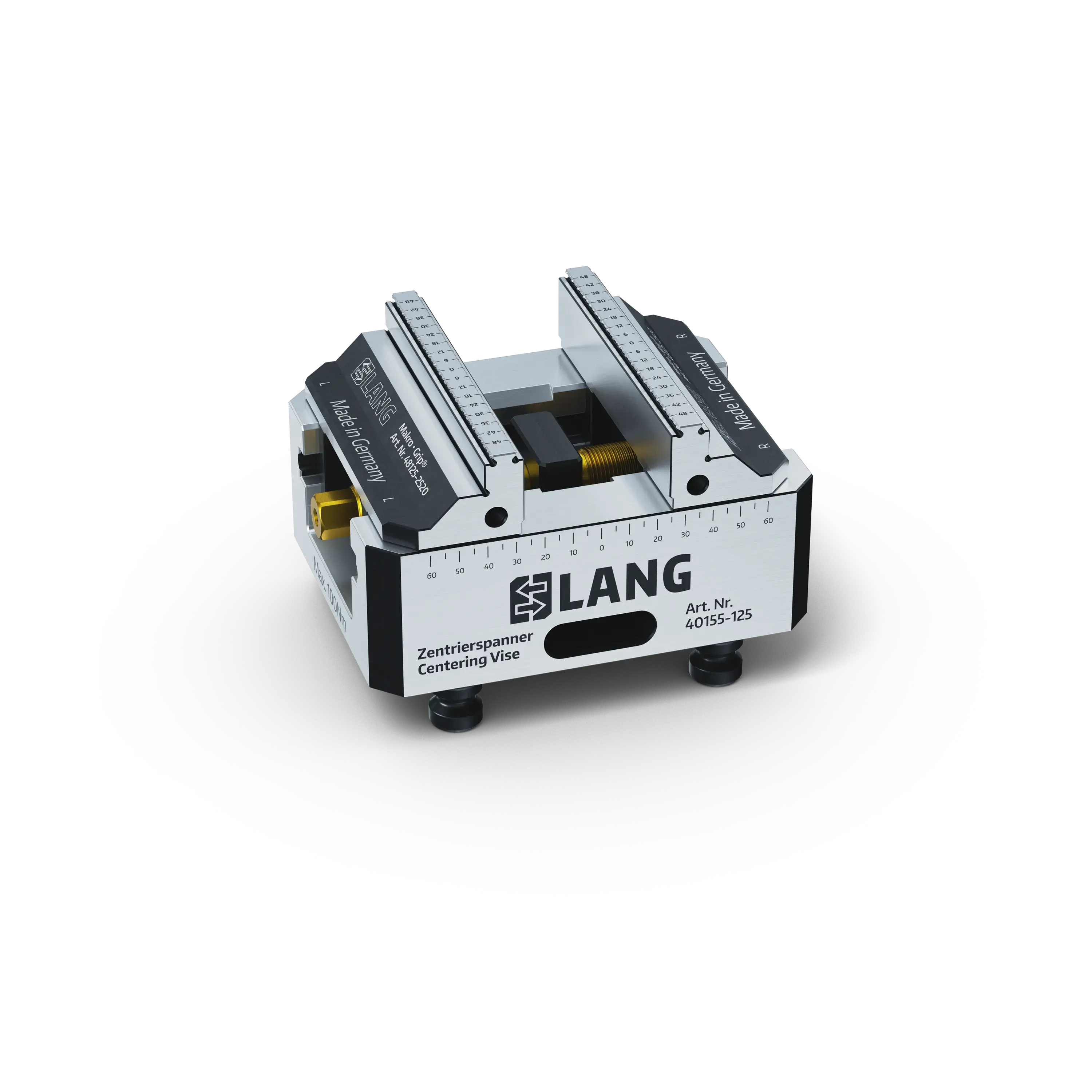

Makro•Grip® 125, 5-Axis Vise-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

The shortest 5-axis vise with a jaw width of 125 mm has a maximum clamping range of 155 mm with a base body length of just 160 mm. Its compact design, the large clamping range compared to the base body and the good accessibility from all sides, offer excellent conditions for 5-axis machining of blanks. With its jaw serration, the vise holds pre-stamped blanks by form-fit. As a result, only very low pressure is required to clamp components with extreme hold and a high degree of safety. But even without pre-stamping, the 5-axis vise guarantees maximum hold at high cutting forces in raw part machining.

Clamping range

0 - 155 mm (0" - 6.1")

Dimensions

160 x 125 x 89 mm (6.3" x 4.92" x 3.5")

Clamping method

by friction

Workpiece shape

cubic

Packaging Unit

1 Piece

Weight

8.3 kg (18.3 lbs)

Material

Steel

More features:

Torque

100 Nm

Maximum allowed torque

Clamping stud size

20 mm (0.79")

Diameter of clamping studs

Clamping force

20.000 N

Clamping force at maximum torque

Centering accuracy

±0,02 mm

Centering tolerance of vises

Grid system

96 mm (3.78")

Zero-point pitch

Single components features:

Dimensions

Jaw width: 125 mm (4.92")

Spindle length

164 mm (6.46")

Thread pitch

M20 x 1.5

Diameter

20 mm (0.79")

For grid size

96

Threaded pin

M10

Makro•Grip® Stamping Technology and Raw Part Clamping

The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.

Holding force Thanks to the form-fit clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
Process reliability Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
Accessibility The compact Makro•Grip® self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.

Learn more about the benefits and functionality of our workholding solutions for raw part and second operation machining .

Discover now

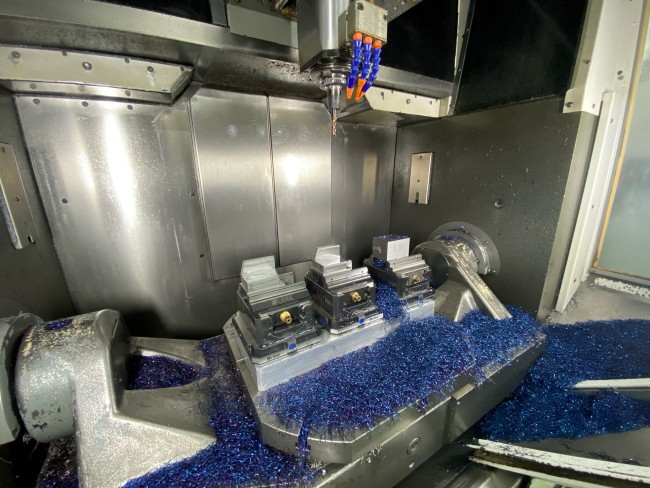

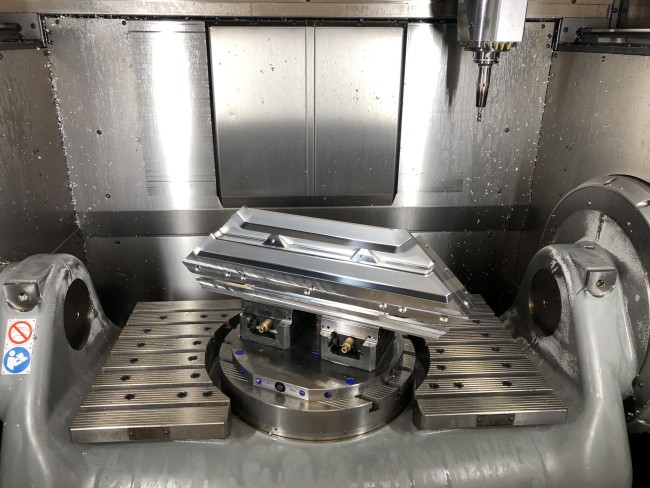

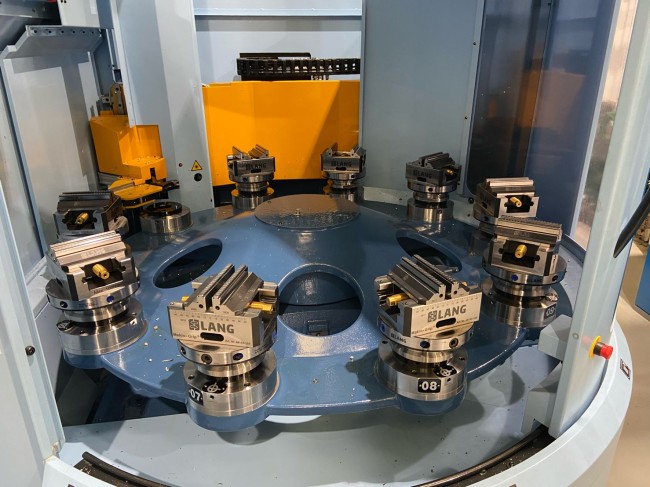

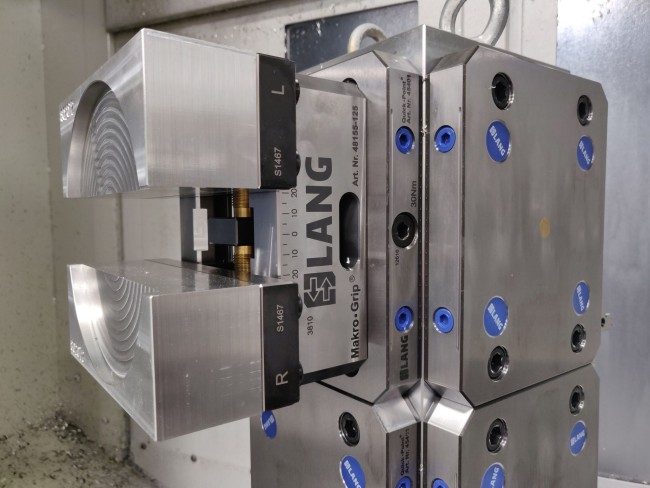

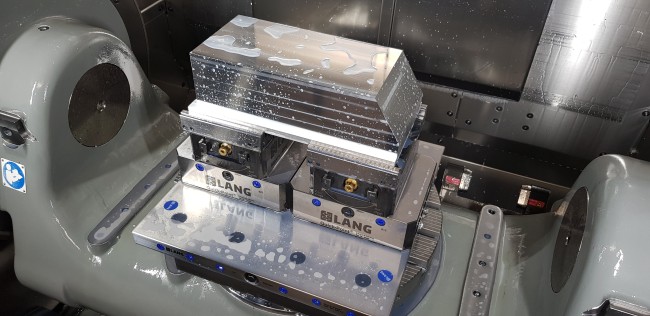

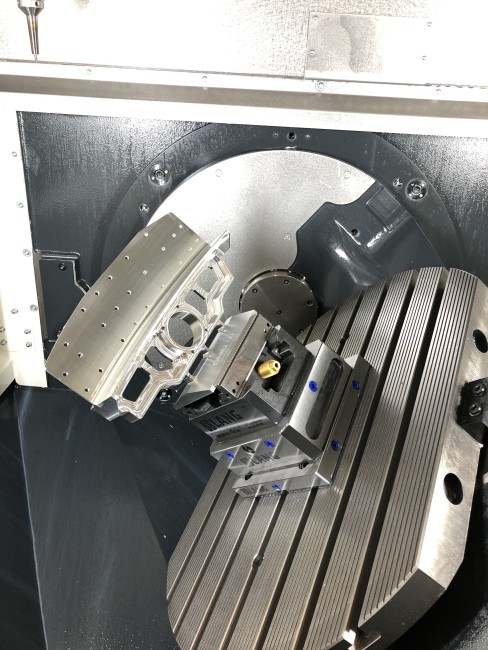

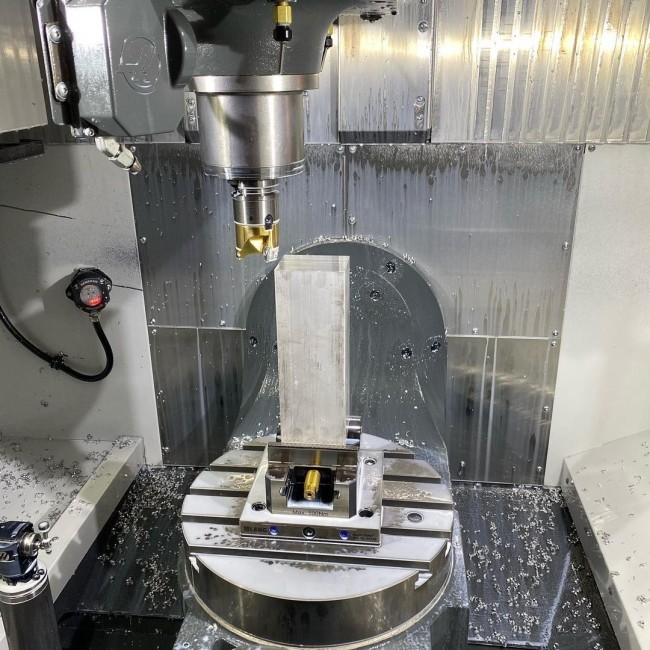

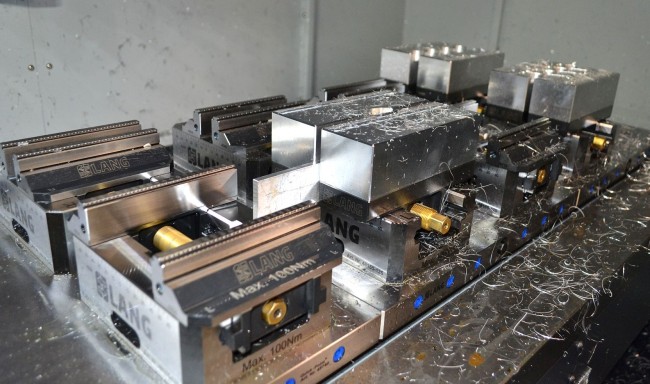

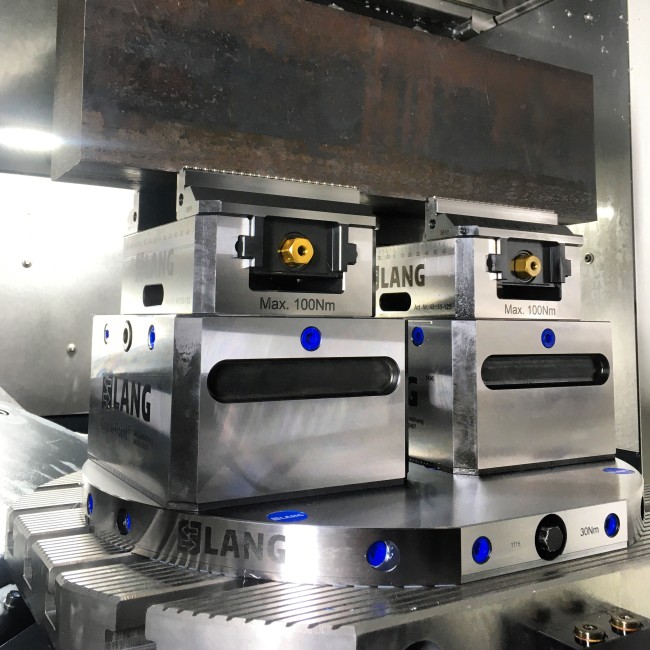

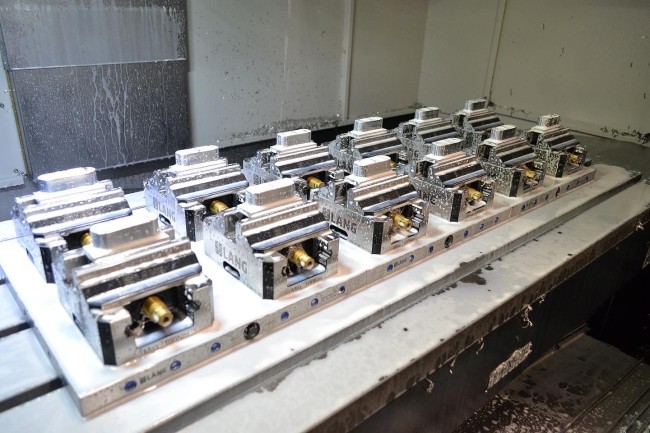

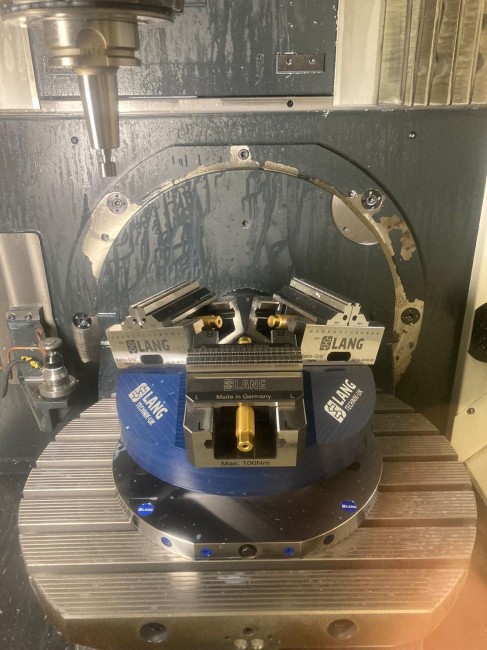

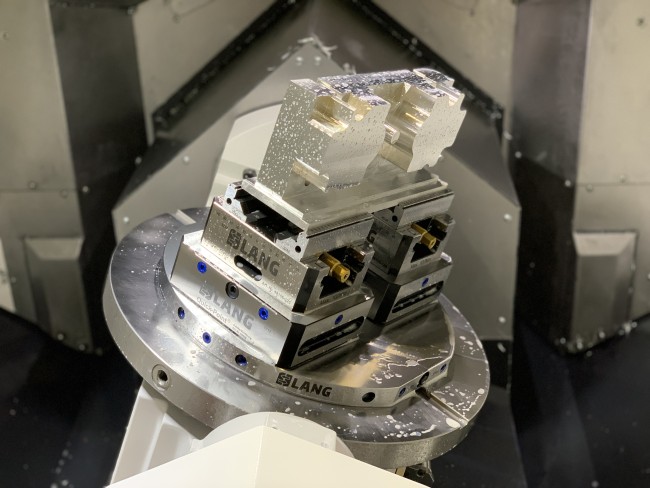

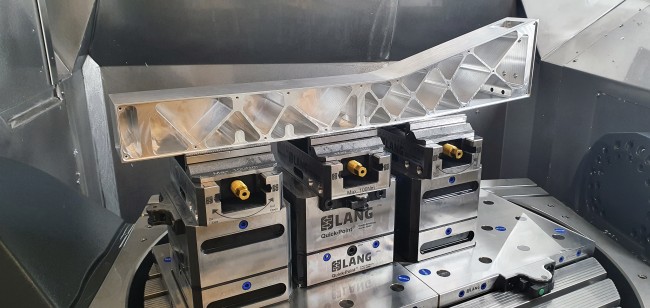

Application pictures

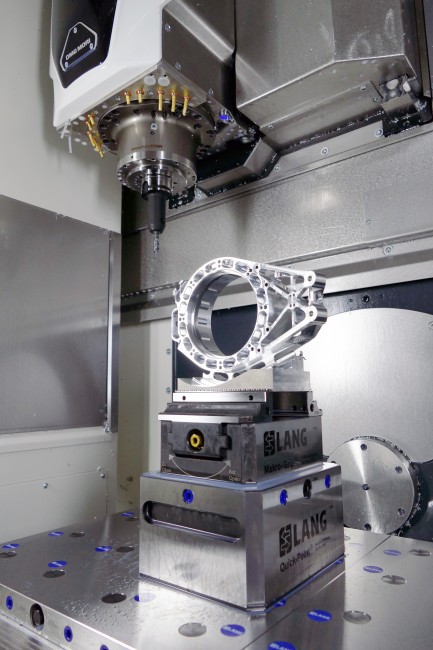

Bildquelle / Fonte: Donner GmbH The Qualifactory

Imagem / Fonte: Yamazaki Mazak Central Europe Sp. z.o.o.

Application videos

下载

Data sheet

下载

Instruction manual

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Tungsten-Carbide-Coating

A special Tungsten-Carbide Coating can be applied on the plain clamping surfaces of the Mak-ro•Grip® jaws in order to double the friction force when clamping non-stamped parts, without leaving any traces on the workpiece.

Modified Clamping depth

Sometimes raw material has a certain radius, which makes it hard to clamp it on the 3 mm step of the Makro•Grip® jaws. This can be solved by lowering the clamping step so that the workpie-ce is held above the radius. On the one hand, this provides a resting surface for the workpice, on the other hand it ensures safe clamping.

Modification of Base

The case-hardened base body of all LANG vice types allows additional threaded holes or fittings to be inserted on the bottom in order to be able to use the vice on other zero-point clamping systems or to mount it to any fixture.
