Key data at a glance

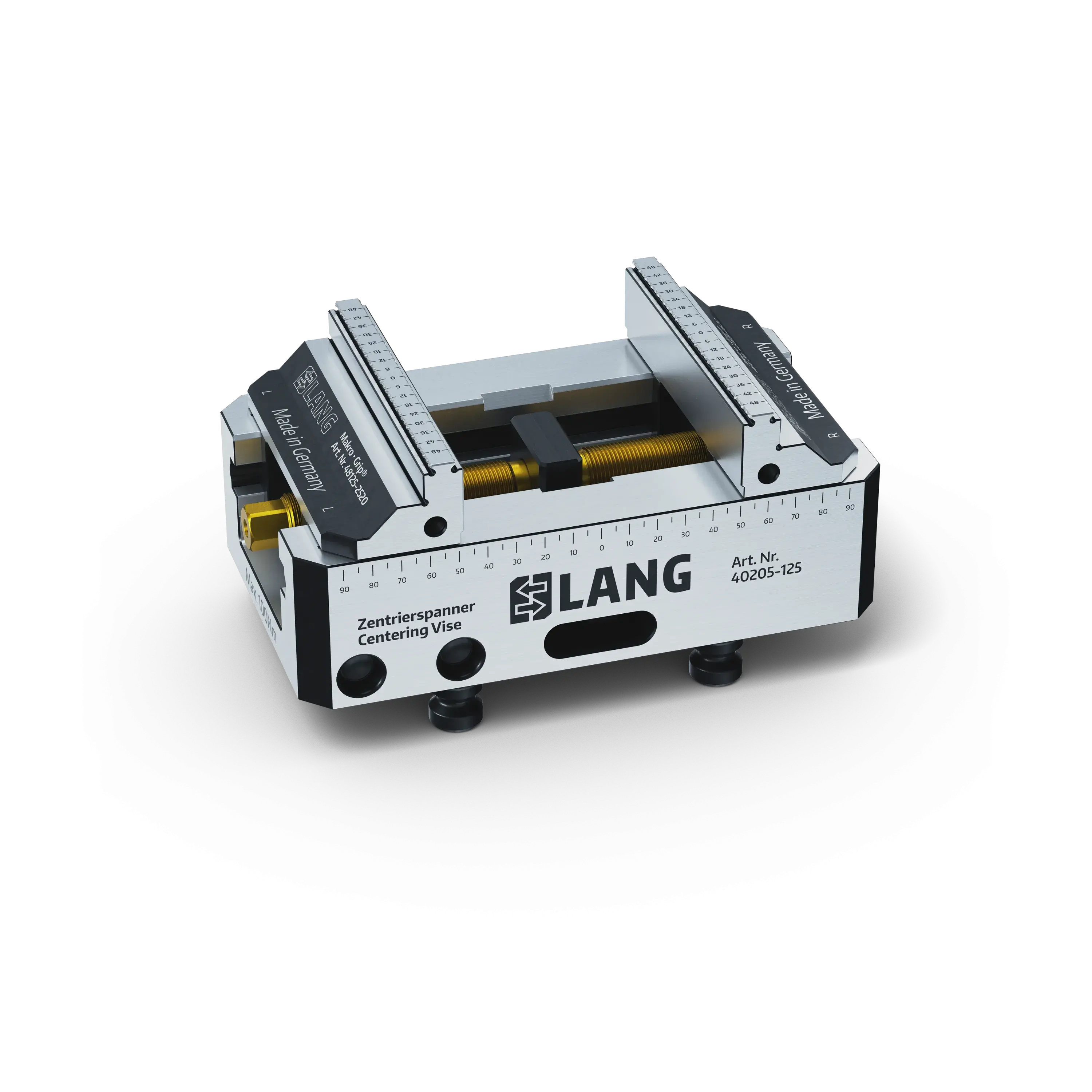

The Makro•Grip® 5-axis vise with a jaw width of 125 mm and a clamping range of up to 205 mm offers maximum process reliability in 5-axis machining. Due to its compact design and low interference contours, the workpiece is ideally accessible for the tools used. Thanks to its form-fit clamping, it achieves maximum holding forces despite low clamping pressure. Even with high-tensile material, it is able to clamp workpieces without distortion. The gentle clamping also means that there is no wear on the 5-axis vise. This vise version can be used both in manual CNC machining and automated with the RoboTrex 96 automation system.

Clamping range

0 - 205 mm (0" - 8.07")

Dimensions

210 x 125 x 89 mm (8.27" x 4.92" x 3.5")

Clamping method

by form-fit / by friction

Workpiece shape

cubic

Packaging Unit

1 Piece

Weight

10.1 kg (22.27 lbs)

Material

Steel

More features:

Torque

100 Nm

Maximum allowed torque

Clamping stud size

20 mm (0.79")

Diameter of clamping studs

Clamping force

20.000 N

Clamping force at maximum torque

Centering accuracy

±0,02 mm

Centering tolerance of vises

Automatable

Yes

Automation interface included

Grid system

96 mm (3.78")

Zero-point pitch

Single components features:

Dimensions

Jaw width: 125 mm (4.92")

Spindle length

214 mm (8.43")

Thread pitch

M20 x 1.5

Diameter

20 mm (0.79")

For grid size

96

Threaded pin

M10

注意：

Can be used in the RoboTrex automation system.

Makro•Grip® Stamping Technology and Raw Part Clamping

The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.

Holding force Thanks to the form-fit clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
Process reliability Clamping with Makro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
Accessibility The compact Makro•Grip® self-centering vises guarantee ideal accessibility in the 5-axis machining of raw parts.

Learn more about the benefits and functionality of our workholding solutions for raw part and second operation machining .

Discover now

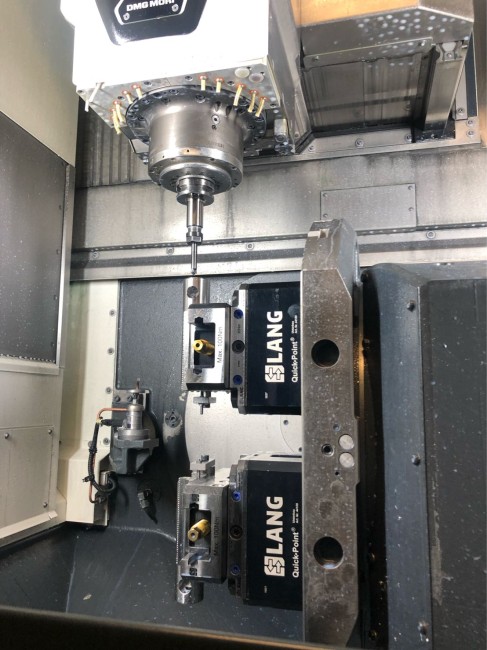

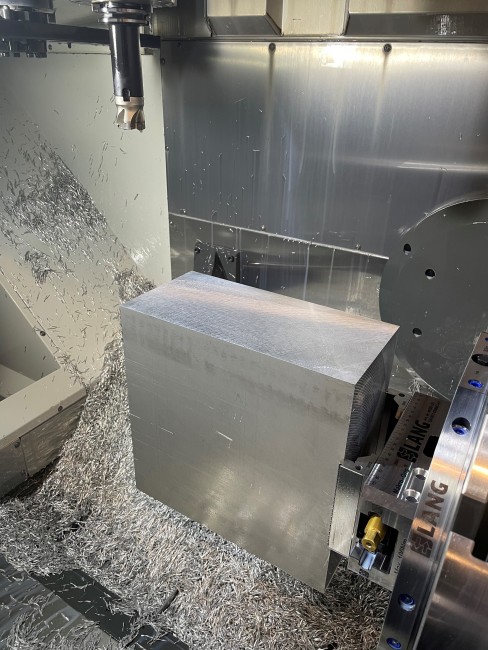

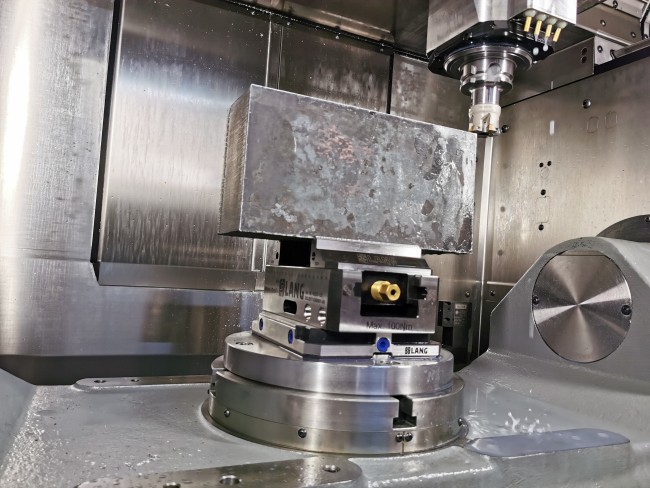

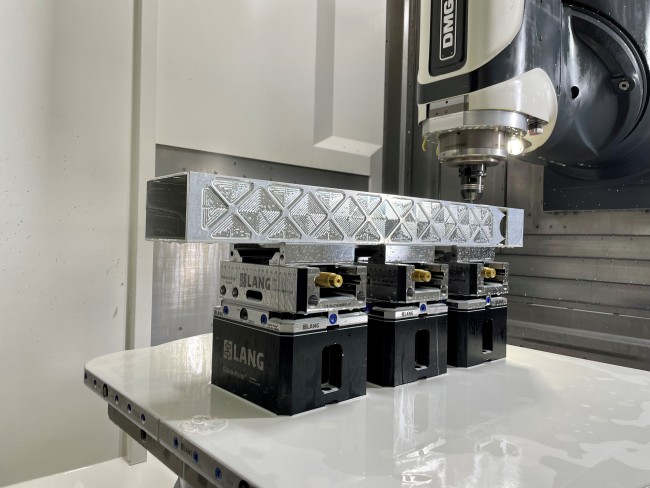

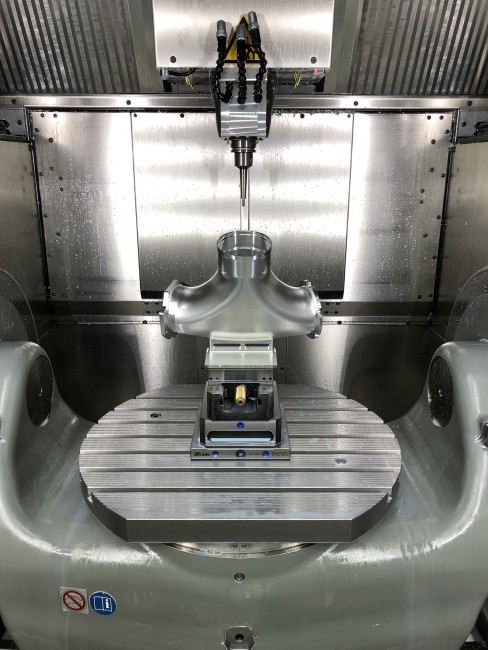

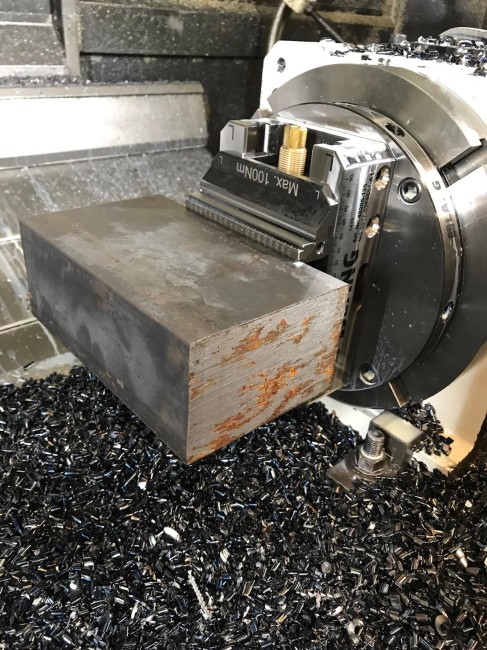

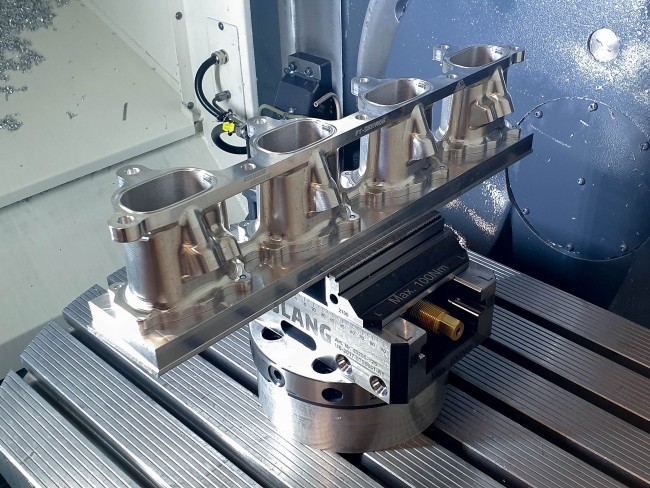

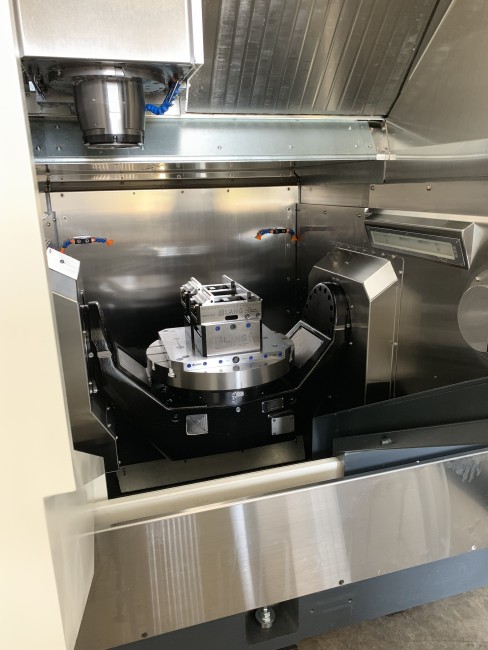

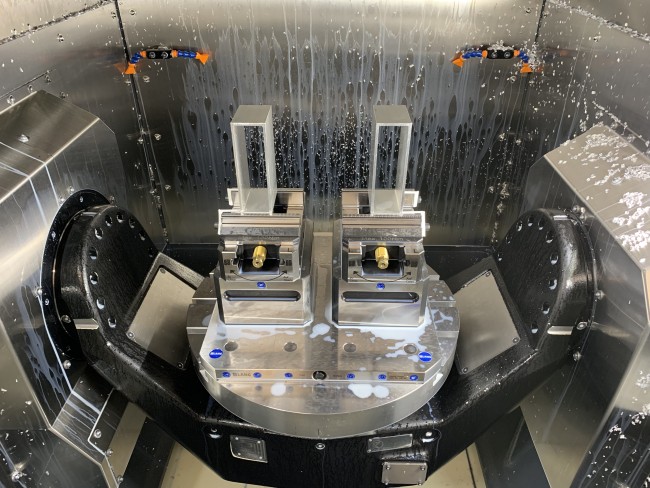

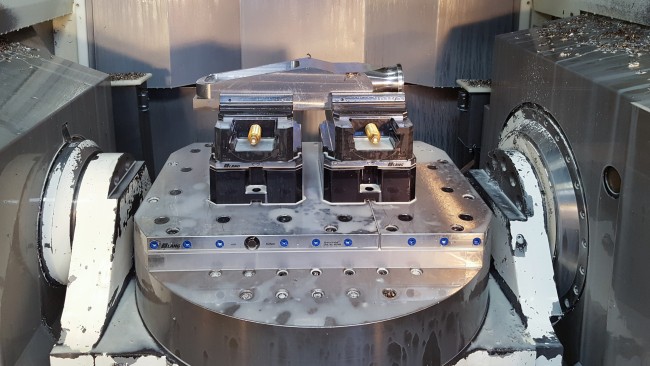

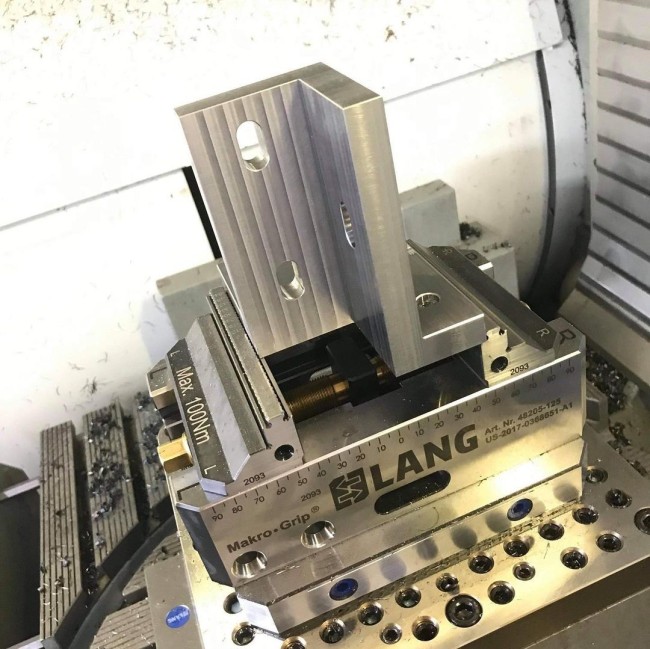

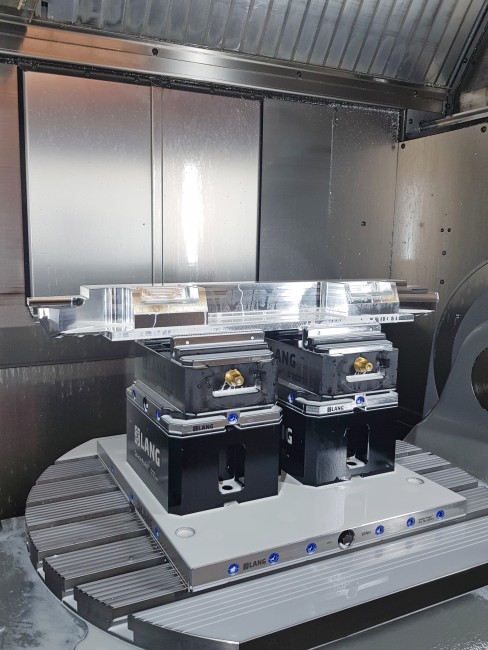

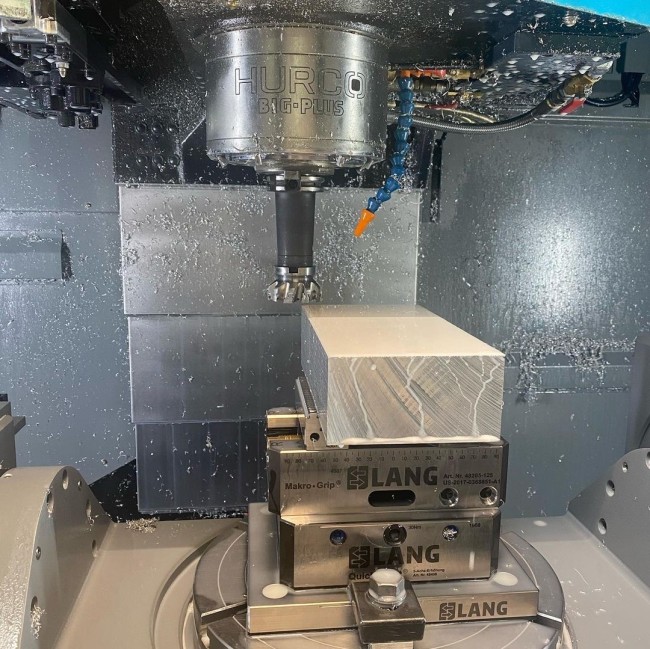

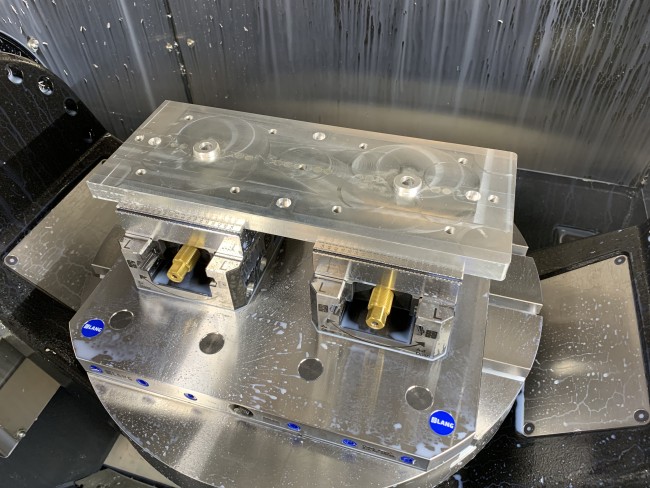

Application pictures

Imagem / Fonte: CNC Manufaktur Brüssow GmbH & Co. KG

Application videos

下载

Data sheet

下载

Instruction manual

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Tungsten-Carbide-Coating

A special Tungsten-Carbide Coating can be applied on the plain clamping surfaces of the Mak-ro•Grip® jaws in order to double the friction force when clamping non-stamped parts, without leaving any traces on the workpiece.

Modified Clamping depth

Sometimes raw material has a certain radius, which makes it hard to clamp it on the 3 mm step of the Makro•Grip® jaws. This can be solved by lowering the clamping step so that the workpie-ce is held above the radius. On the one hand, this provides a resting surface for the workpice, on the other hand it ensures safe clamping.

Modification of Base

The case-hardened base body of all LANG vice types allows additional threaded holes or fittings to be inserted on the bottom in order to be able to use the vice on other zero-point clamping systems or to mount it to any fixture.
