Key data at a glance

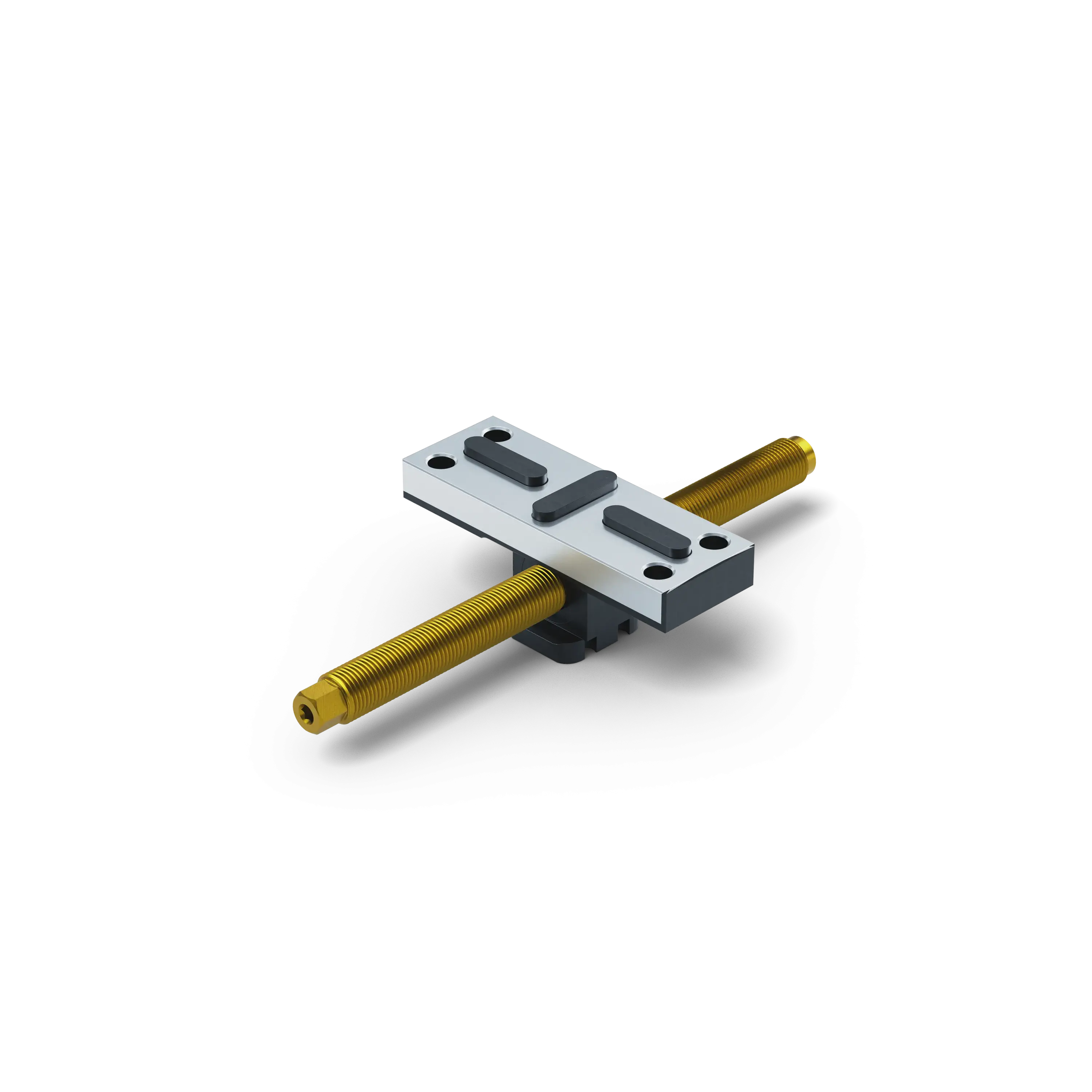

If required, the Profilo vise can be converted into a multiple clamping vise. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the vise has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.
Spindle length
215 mm (8.46")
Thread pitch
M16 x 1.5
Dimensions
Jaw width: 112 mm (4.41")
Jaw length: 46 mm (1.81")
Jaw length: 46 mm (1.81")
Screw size
M8
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Pack
Weight
0.85 kg (1.87 lbs)
Material
Steel
供货范围：
1 x Center Jaw + Spindle
4 x Screw M8 x 16 (DIN 7984)
