Key data at a glance
If required, the Profilo vise can be converted into a multiple clamping vise. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the vise has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.
Spindle length
264 mm (10.39")
Thread pitch
M20 x 1.5
Dimensions
Jaw width: 160 mm (6.3")
Jaw length: 57 mm (2.24")
Jaw length: 57 mm (2.24")
Screw size
M10
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Piece
Weight
2.3 kg (5.07 lbs)
Material
Steel
供货范围：

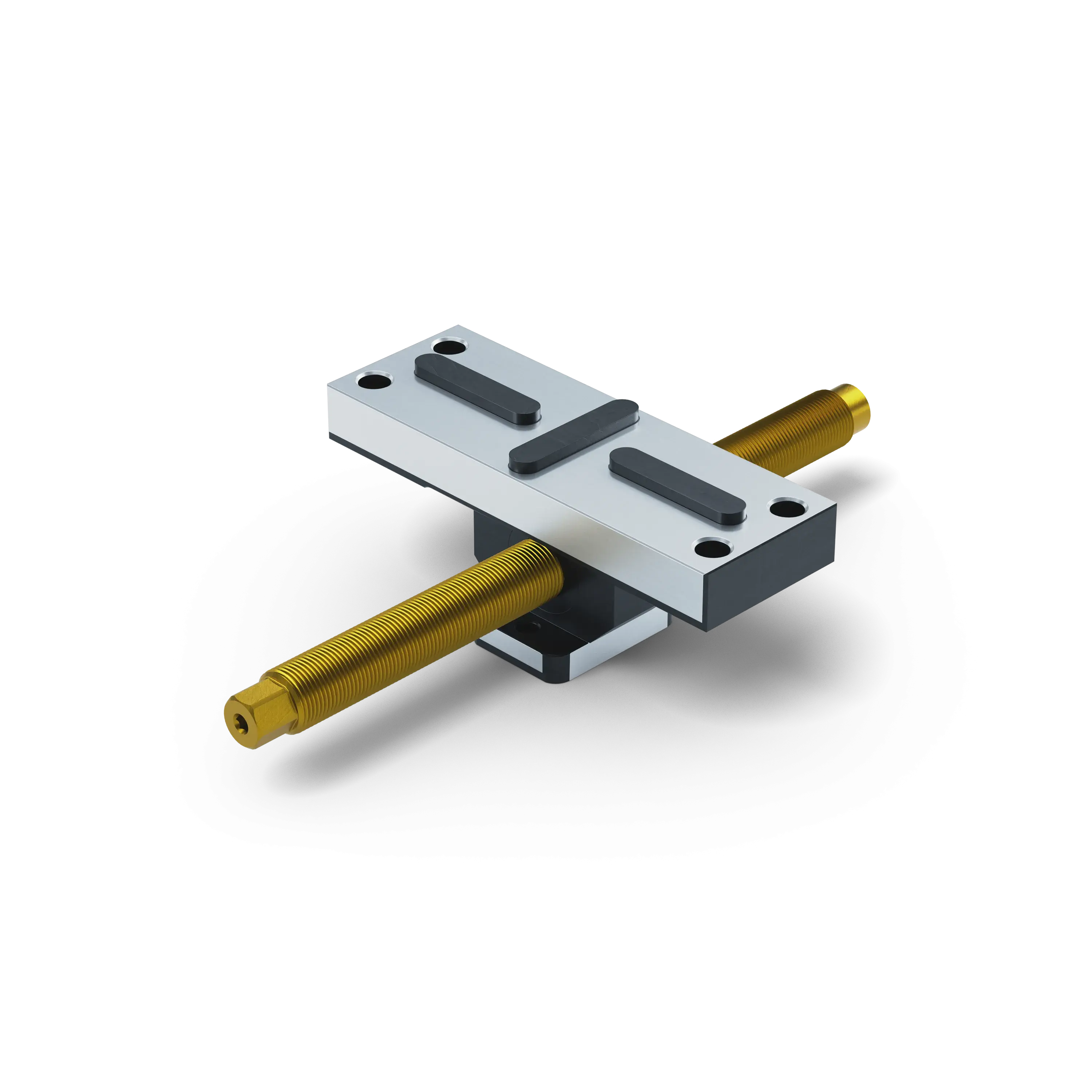

1 x Center Jaw + Spindle
4 x Socket head screw M10 x 25
