Key data at a glance

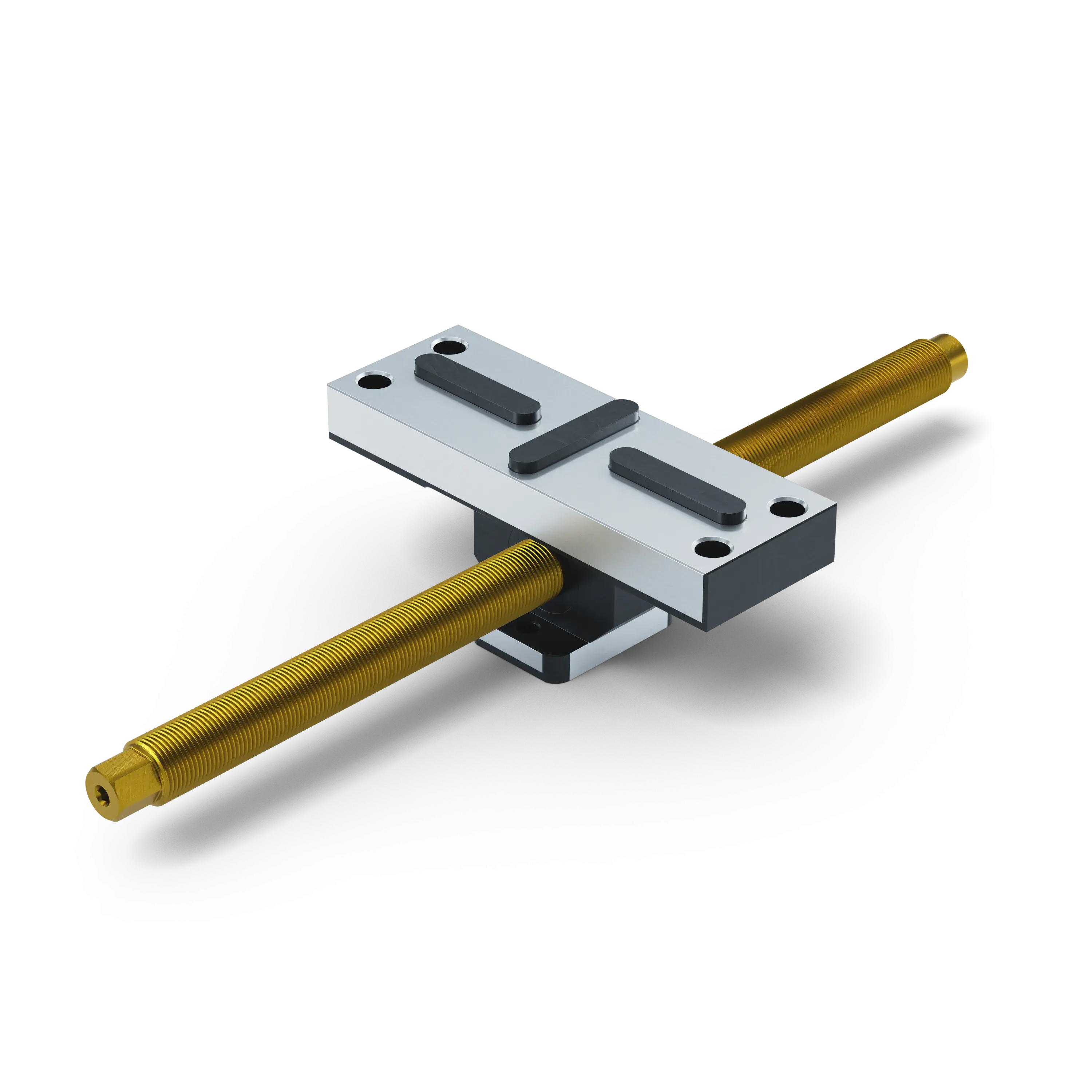

If required, the Profilo vise can be converted into a multiple clamping vise. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the vise has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.
Spindle length
364 mm (14.33")
Thread pitch
M20 x 1.5
Dimensions
Jaw width: 160 mm (6.3")
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Piece
Weight
2.49 kg (5.49 lbs)
Material
Steel
供货范围：
1 x Center Jaw + Spindle
4 x Socket head screw M10 x 25
