Key data at a glance

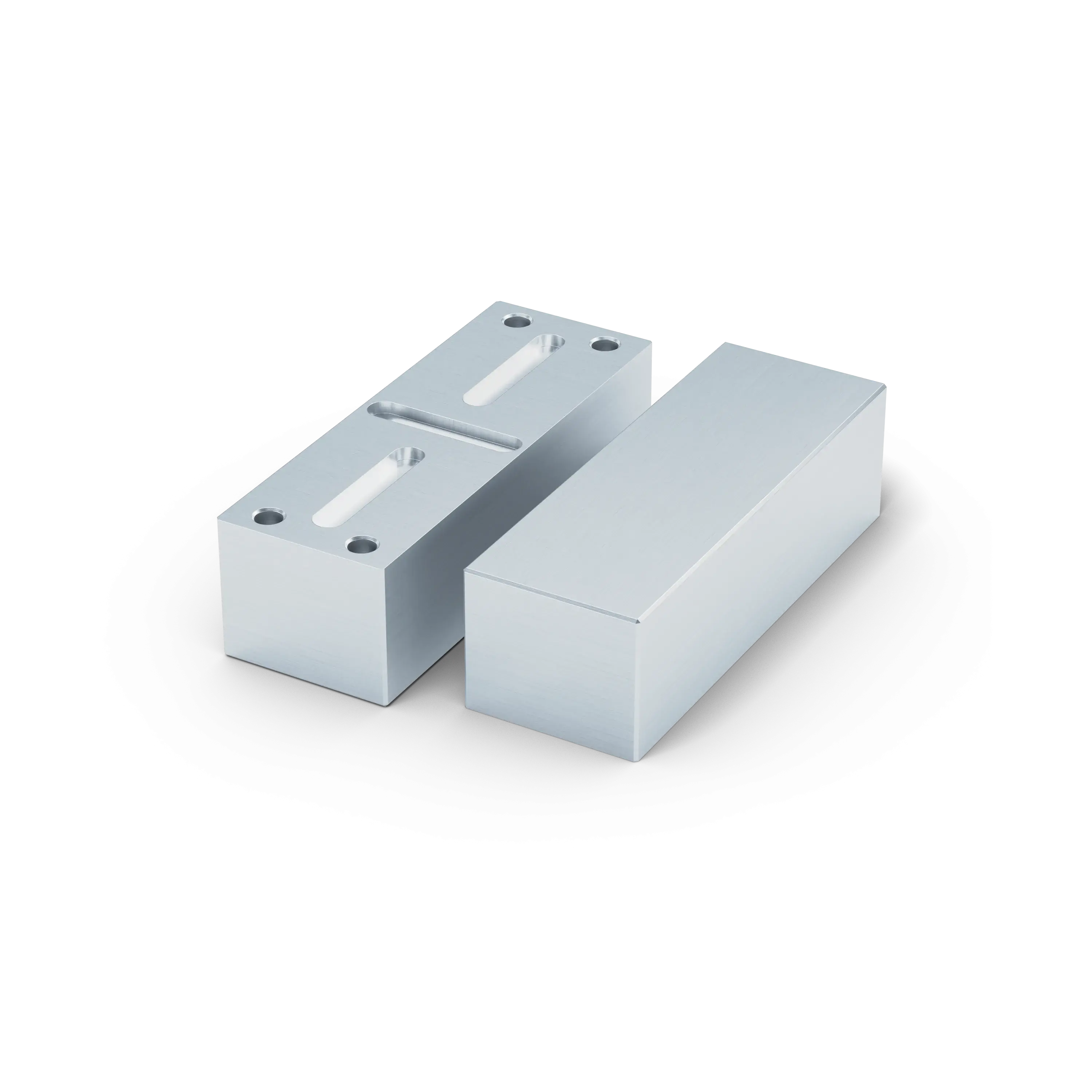

The soft, individually machinable Profilo top jaws are available in steel and aluminium and are used for clamping profile and moulded parts. They are positioned on the base jaws via feather keys and mounted from below with four screws each, which ensures an extremely robust and stable fit.
Dimensions
Jaw width: 160 mm (6.3")
Jaw length: 57 mm (2.24")
Jaw height: 47 mm (1.85")
Jaw length: 57 mm (2.24")
Jaw height: 47 mm (1.85")
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Piece
Weight
1.17 kg (2.58 lbs)
Material
Aluminum
注意：
Profilo top jaws are sold as single pieces
