Key data at a glance

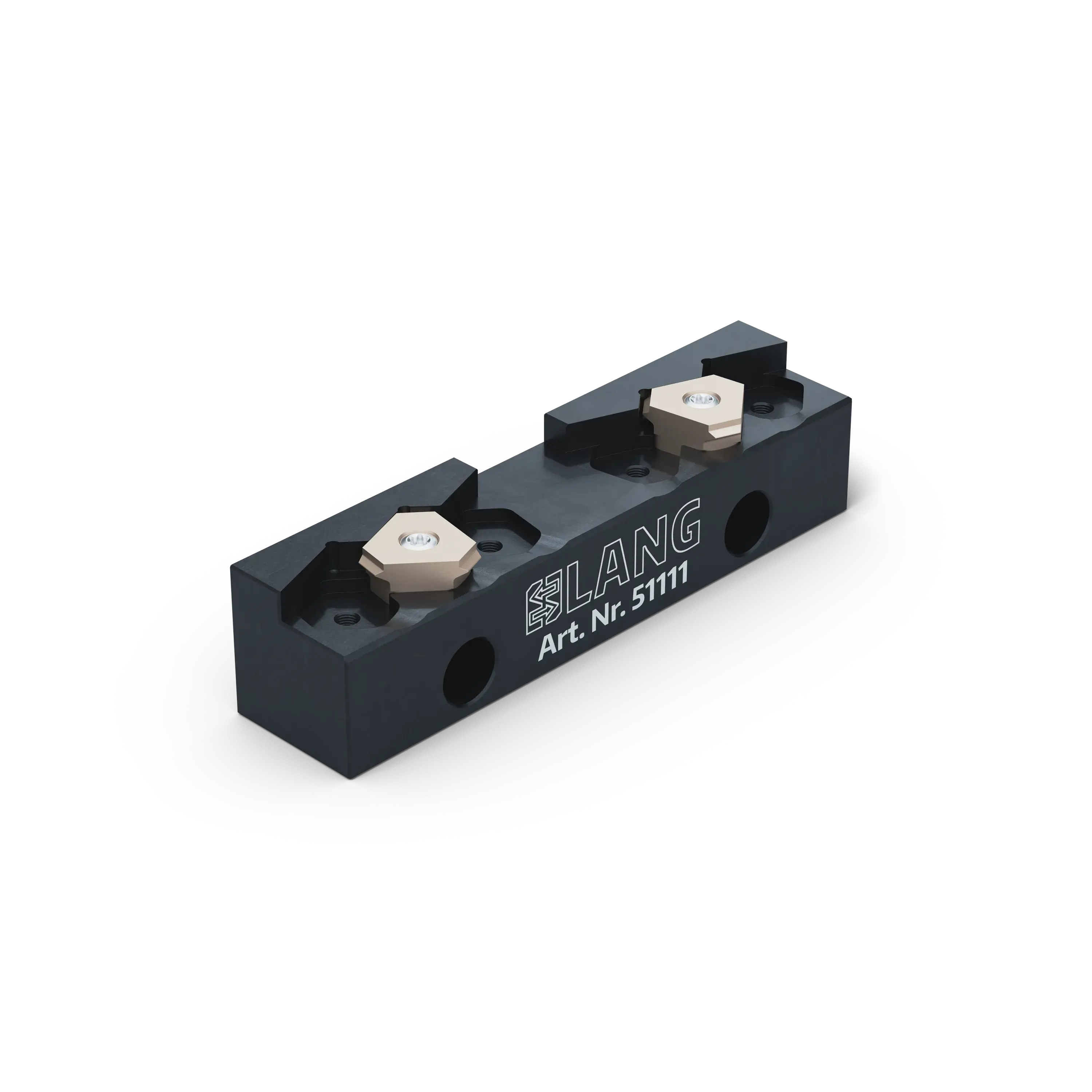

The Makro•4Grip stamping jaws, which enable the pre-stamping of round blanks, are compatible with all versions of the stamping unit. Two stamping inserts are mounted on each Makro•4Grip stamping jaw, with which the workpiece is stamped. In order to adapt the stamping inserts to different workpiece diameters or clamping jaw sizes, the stamping inserts are positioned at a total of three possible distances (narrow, medium, wide) from each other.
Dimensions
144 x 33 x 34 mm (5.67" x 1.3" x 1.34")
For materials
up to 45 HRC
Packaging Unit
1 Pair
Weight
2 kg (4.41 lbs)
Material
Steel
