Key data at a glance

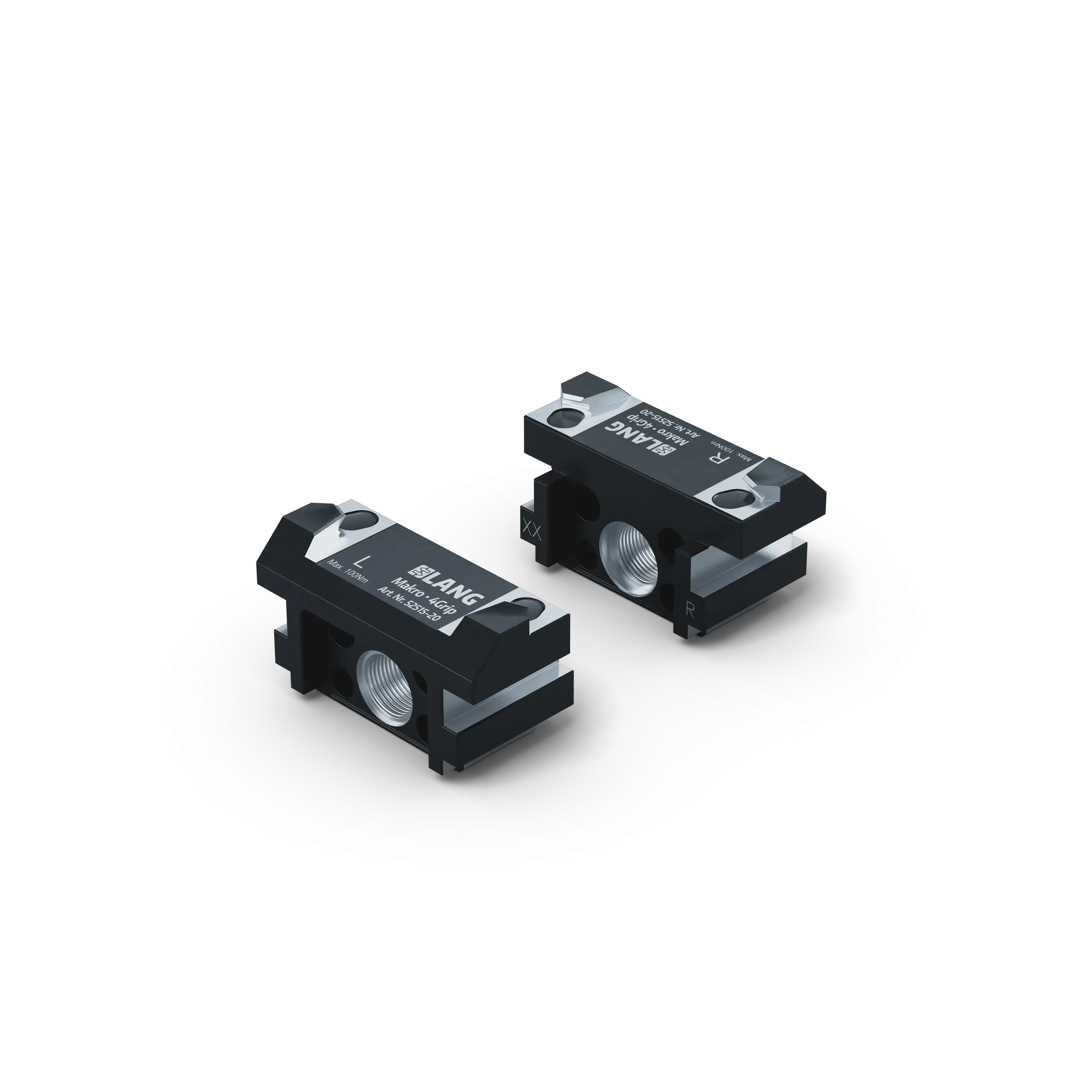

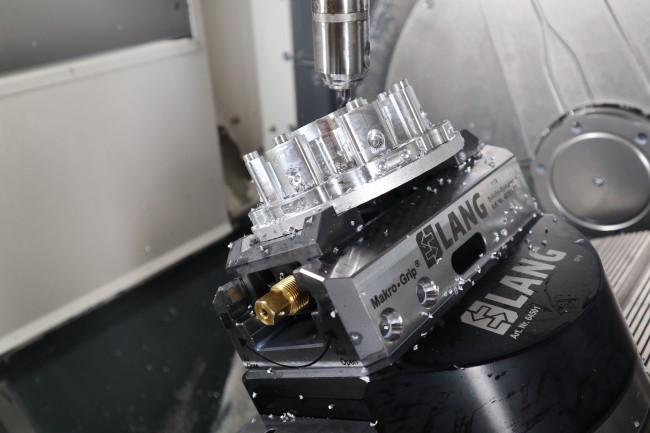

Makro•4Grip clamping jaws are used to hold pre-stamped round workpieces by form-fit. The clamping jaws are available for retrofitting for all vice types and lengths. The pair of jaws grips the pre-stamped workpiece at a total of four clamping points with a holding force of 14 kN. Depending on the base body length, workpieces with a diameter between Ø 115 - 180 mm can be clamped.
Dimensions
Jaw width: 90 mm (3.54")
Jaw length: 0 mm (0")
Jaw length: 0 mm (0")
Workpiece shape
cylindrical
Packaging Unit
1 Pair
Weight
1.58 kg (3.48 lbs)
Material
Steel
注意：
The clamping range depends on the vice length. The maximum possible clamping ranges can be taken from the data sheet in the download area.
