Key data at a glance

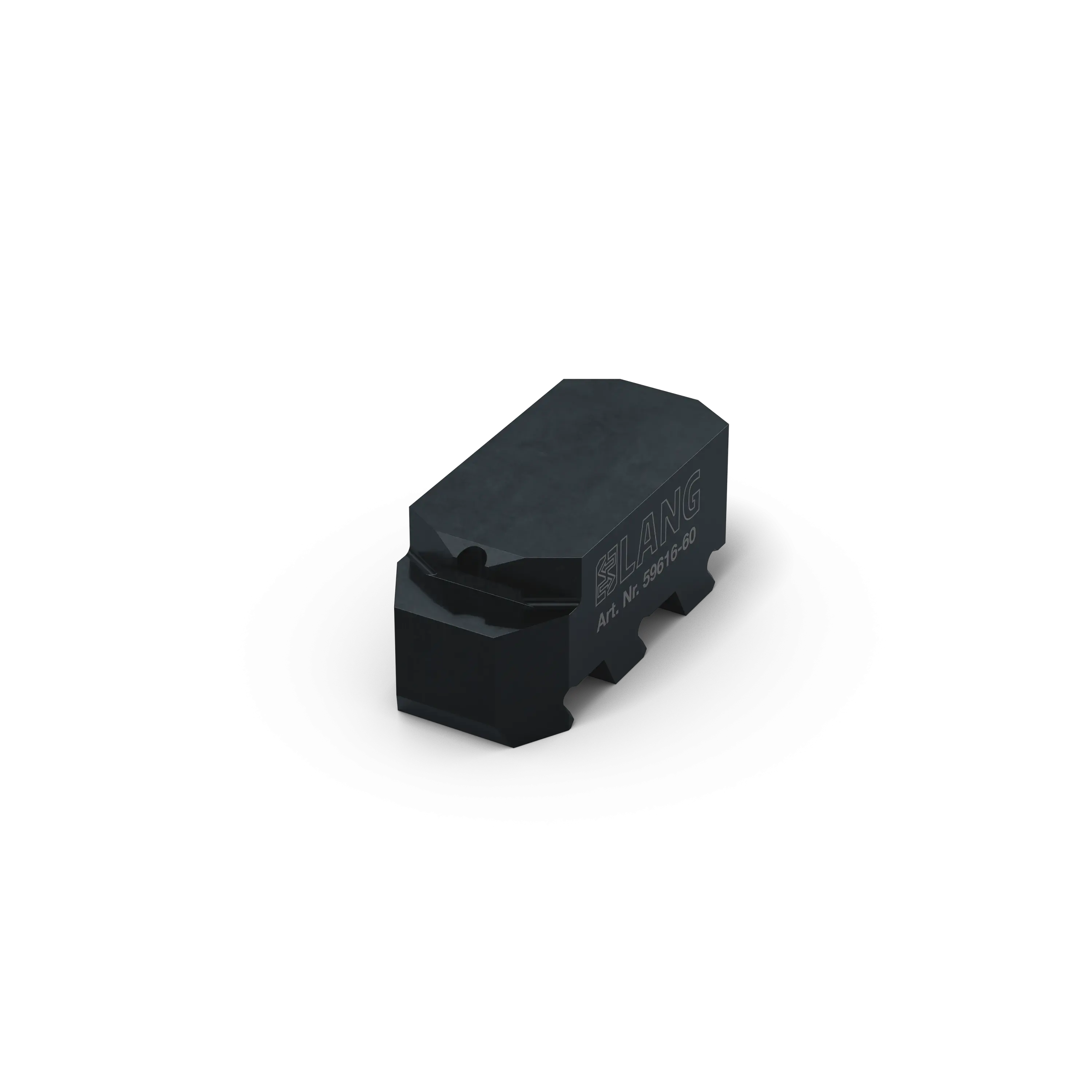

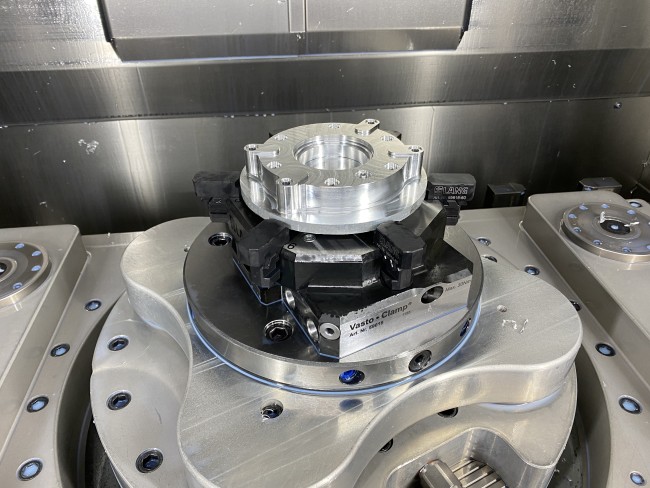

The hardened gripping jaws made of steel clamp blank parts by friction and are designed for a clamping diameter of 30 - 120 mm. They are mounted to the base jaws of the Vasto•Clamp 6-jaw chuck entirely without tools using an innovative click mechanism. The clamping depth of the workpieces is 5 mm.
Clamping range
ø 30 - 120 mm (1.18" - 4.72")
Clamping method
by friction
Dimensions
Jaw width: 18 mm (0.71")
Jaw height: 13 mm (0.51")
Jaw height: 13 mm (0.51")
Workpiece shape
cylindrical
Packaging Unit
6 Set
Weight
0.51 kg (1.12 lbs)
Material
Steel
