Key data at a glance

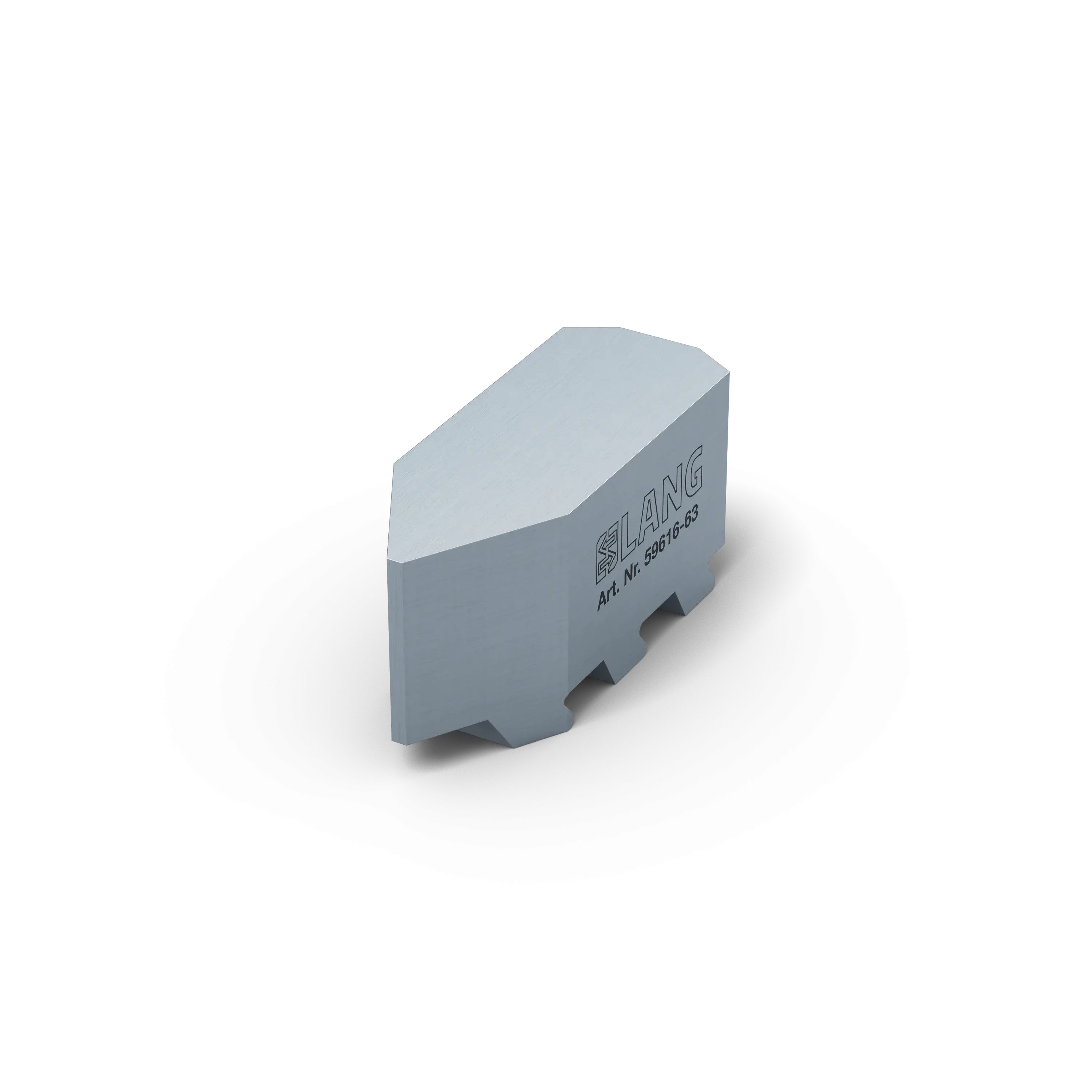

The soft, individually modifiable aluminium top jaws are suitable for contour clamping of deformation-sensitive components with a diameter of 10 - 160 mm. They are mounted to the base jaws of the Vasto•Clamp 6 jaw chuck entirely without tools using an innovative mechanism system.
Clamping range
ø 10 - 160 mm (0.39" - 6.3")
Clamping method
by friction
Dimensions
Jaw width: 18 mm (0.71")
Jaw height: 29 mm (1.14")
Jaw height: 29 mm (1.14")
Workpiece shape
cylindrical
Packaging Unit
6 Set
Weight
0.4 kg (0.88 lbs)
Material
Aluminum
