Key data at a glance

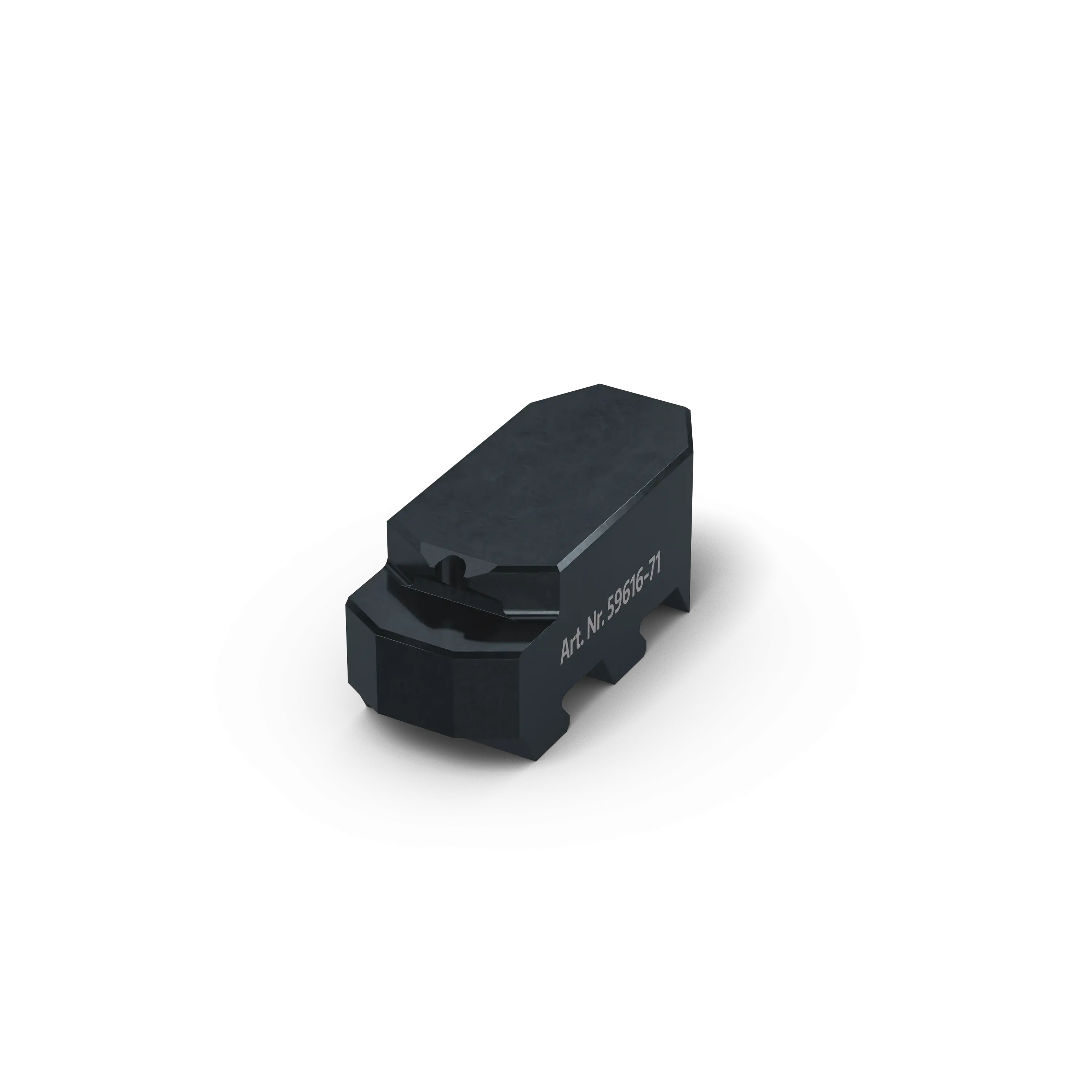

The hard steel gripper jaws clamp unmachined parts in the Vasto-Clamp 6 jaw chuck frictionally from the inside to the outside and are designed for a clamping diameter of 90 - 185 mm. They are attached to the base jaws (part no. 59616-30), which are available especially for internal clamping, completely without tools using an innovative click system. The clamping depth of the workpieces is 5 mm.
Clamping range
ø 90 - 185 mm (3.54" - 7.28")
Clamping method
by friction
Dimensions
Jaw width: 18 mm (0.71")
Jaw height: 13 mm (0.51")
Jaw height: 13 mm (0.51")
Workpiece shape
cylindrical
Packaging Unit
6 Set
Weight
0.5 kg (1.1 lbs)
Material
Steel
